SQUARE D

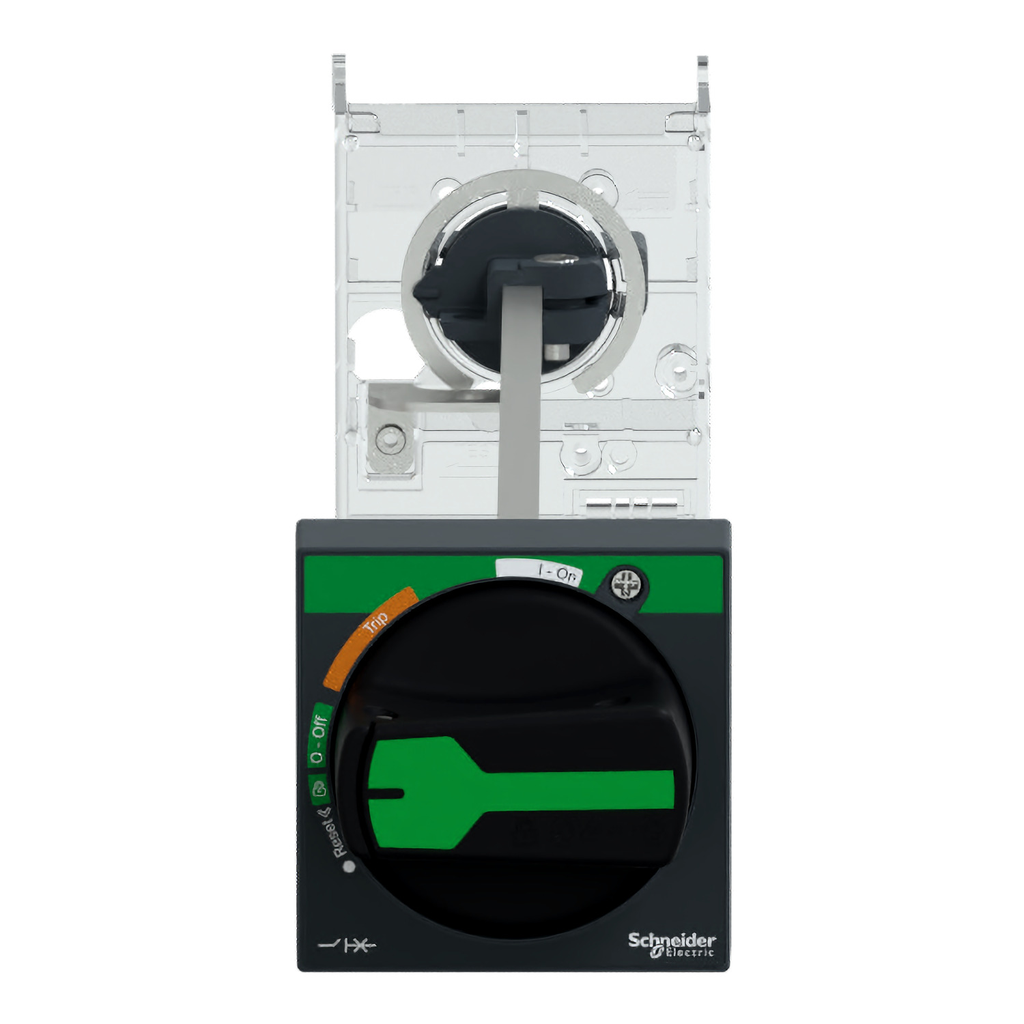

Extended rotary handle kit,TeSys Deca, IP54, black handle, with trip indication, for GV3L-GV3P

IP54 THRU DOOR OP-MECH. BLK W/

SQDGV3APN01 GV3APN01 3606480160950
116.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-Extended rotary handle kit,TeSys Deca, IP54, black handle, with trip indication, for GV3L-GV3P-2
  • Country of Origin: Czechia
  • IsSustainable: No
  • Warranty Length: 18 mth
TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mo
QTY
  • Product Description
  • Features
  • Specifications
TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mo
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.106934439
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 3 kg CO2 eq.
    • 2.575993493
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 5 kg CO2 eq.
    • 5.484113459
  • Accessories
    • GV2V03
    • GVAPL01
  • Rotary Handle Padlocking
    • padlock in ON position
    • padlock in OFF position
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 21 kg CO2 eq.
    • 21.07
  • Carbon Footprint Of The Distribution Phase A4
    • 0.285446354
    • 0.3 kg CO2 eq.
  • Product Compatibility
    • GV3P
    • GV3L
  • Physical Attributes
    • Handle Color : black
    • Handle Front Plate Color : grey
  • Conformance Attributes
    • Product Certifications : cULus
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-26
    • ETIM 10 : EC000230
    • Html Descr : Extended rotary handle kit,TeSys GV3, IP54, black handle, with trip indication, for GV3L-GV3P
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Manufacturing Carbon Footprint : 5.484113459
    • Distribution Carbon Footprint : 0.285446354
    • Installation Carbon Footprint : 0.106934439
    • Use Carbon Footprint : 21.07
    • End Of Life Carbon Footprint : 2.575993493
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI060901
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1929
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : GV3AP
    • Device Short Name : GV3AP
    • Handle Color : black
    • Handle Front Plate Color : grey
    • Locking Options Description : 1 to 3 padlocks
    • Package Weight Lbs : 353.000 g
    • Position Indicator : trip position
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : rotary handle kit
    • Range : TeSys
    • Range Of Product : TeSys Deca
    • Returnability : Yes
    • Rotary Handle Mounting Style : extended
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 30 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 29.52248775
    • Accessory Separate Part Category : control accessory
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : rotary handle kit
    • Range Of Product : TeSys Deca
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61572816&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 29.52248775
    • Circularity Profile : ENVEOLI060901
    • Environmental Disclosure : ENVPEP060901
    • Eu Rohs Directive : Compliant with Exemptions
    • Ip Degree Of Protection : IP54
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
