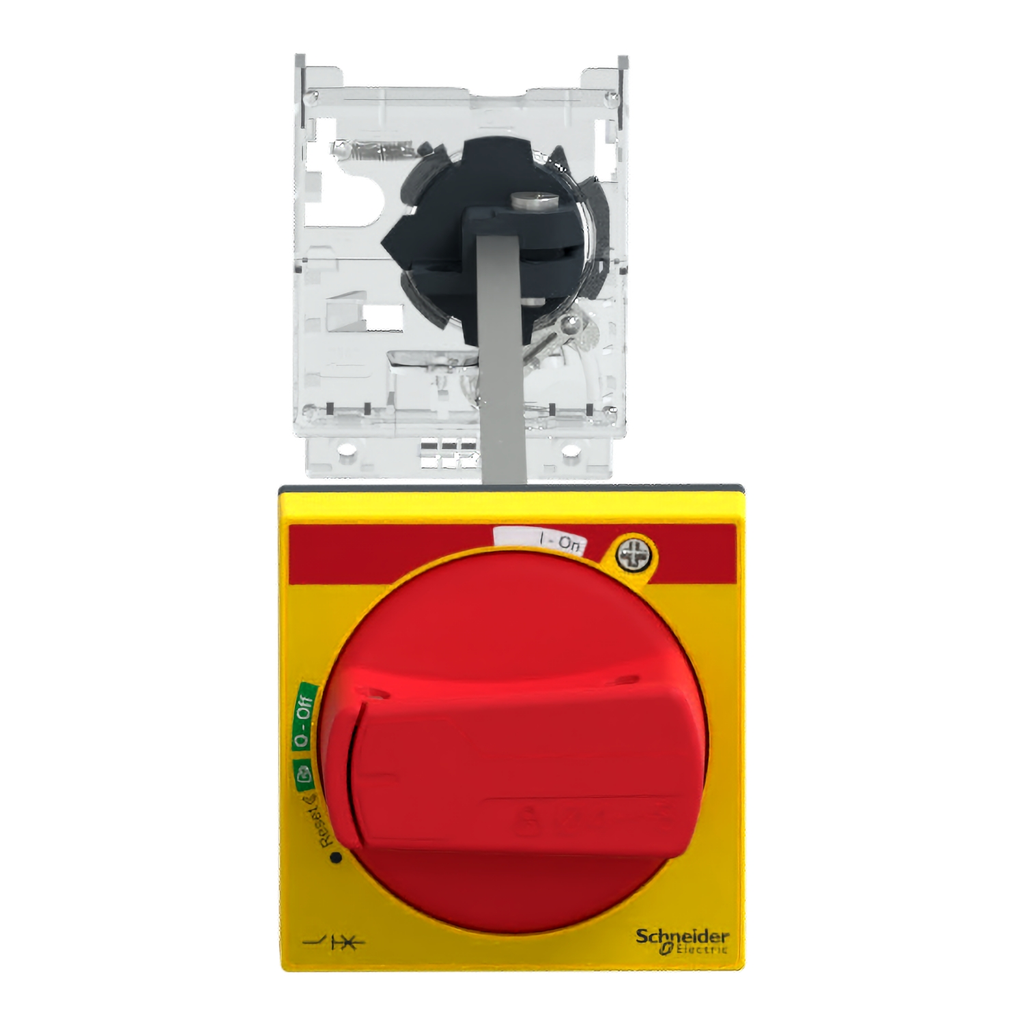

Extended rotary handle kit, TeSys Deca, IP65, red handle, without trip indication, for GV2L-GV2P

Extended rotary handle kit, TeSys Deca, IP65, red handle, without trip indication, for GV2L-GV2P

SQDGV2APN04 GV2APN04 785901379980
111.71 / EACH
  • Net Weight: 0.3 kg
  • Warranty Length: 18 mth
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
  • Product Description
  • Specifications
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
  • Specifications
    • Handle Front Plate Colour : yellow
    • Accessory / Separate Part Category : control accessory
    • Handle Colour : red
    • Product Or Component Type : rotary handle kit
    • Device Short Name : GV2AP
    • Range : TeSys || TeSys Deca
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Rotary Handle Mounting Style : extended
    • Back/Door Distance : 140-250 mm
    • Locking Options Description : 1 to 3 padlocks
    • Rotary Handle Padlocking : padlock in OFF position
    • Product Compatibility : GV2P || GV2L
    • Net Weight : 0.3 kg
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111252EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Ip Degree Of Protection : IP65
