Extended rotary handle, TeSys GV7, yellow legend plate, padlockable, IP55

MAN-STARTER ROTARY OPERATING H

SQDGV7AP02 GV7AP02 3389110567342
103.44 / EA
http://schema.org/OutOfStock

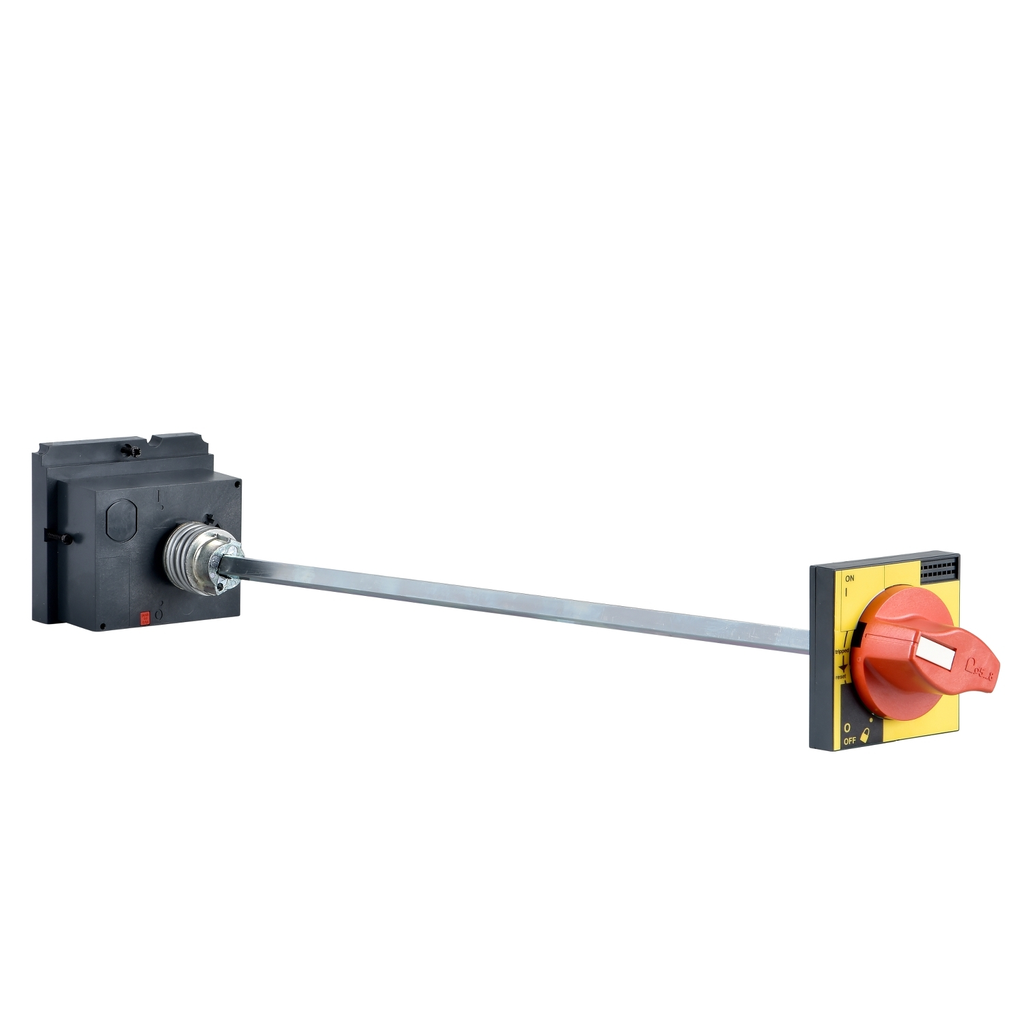

Mayer-DDS-Extended rotary handle, TeSys GV7, yellow legend plate, padlockable, IP55-1
  • Warranty Length: 18 mth
TeSys GV extended rotary handle, for motor circuit breakers GV5, GV6, GV7 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP55 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 185-600mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
QTY
  • Product Description
  • Features
  • Specifications
TeSys GV extended rotary handle, for motor circuit breakers GV5, GV6, GV7 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP55 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 185-600mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • Extended rotary handle, for motor circuit breakers GV5, GV6, GV7
    • Provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP
    • Easier to install and operate with multi-standard screws
    • Sturdy and long-lasting power connection with EverLink terminals
    • Digital customer experience for technical documents
  • Physical Attributes
    • Handle Color : red
    • Handle Front Plate Color : yellow
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1905002EN
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Compatibility Code : extended rotary handle
    • Device Short Name : GV7AP
    • Energy Efficiency Optimized : False
    • Handle Color : red
    • Handle Front Plate Color : yellow
    • Package Weight Lbs : 652.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : extended rotary handle
    • Range : TeSys
    • Returnability : Yes
    • Rotary Handle Mounting Location : front
    • Rotary Handle Mounting Style : extended
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category2 : control accessory
    • Medium Desc : Extended rotary handle, TeSys GV7, yellow legend plate, padlockable, IP55
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1905002EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1905002EN
    • Environmental Disclosure : ENVPEP1905002EN
    • IP Degree Of Protection : IP55
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP1905002EN
  • General Attributes
    • Product Or Component Type : extended rotary handle
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
