Analog I/O expansion block, Modicon TM7, IP67, 2 AI/2AO, 0 20 mA, M12 connector

IP67 EXP. BLOCK 2AI/2AO/12B,0

SQDTM7BAM4CLA TM7BAM4CLA 3595864093222
1121.35 / EA
http://schema.org/OutOfStock

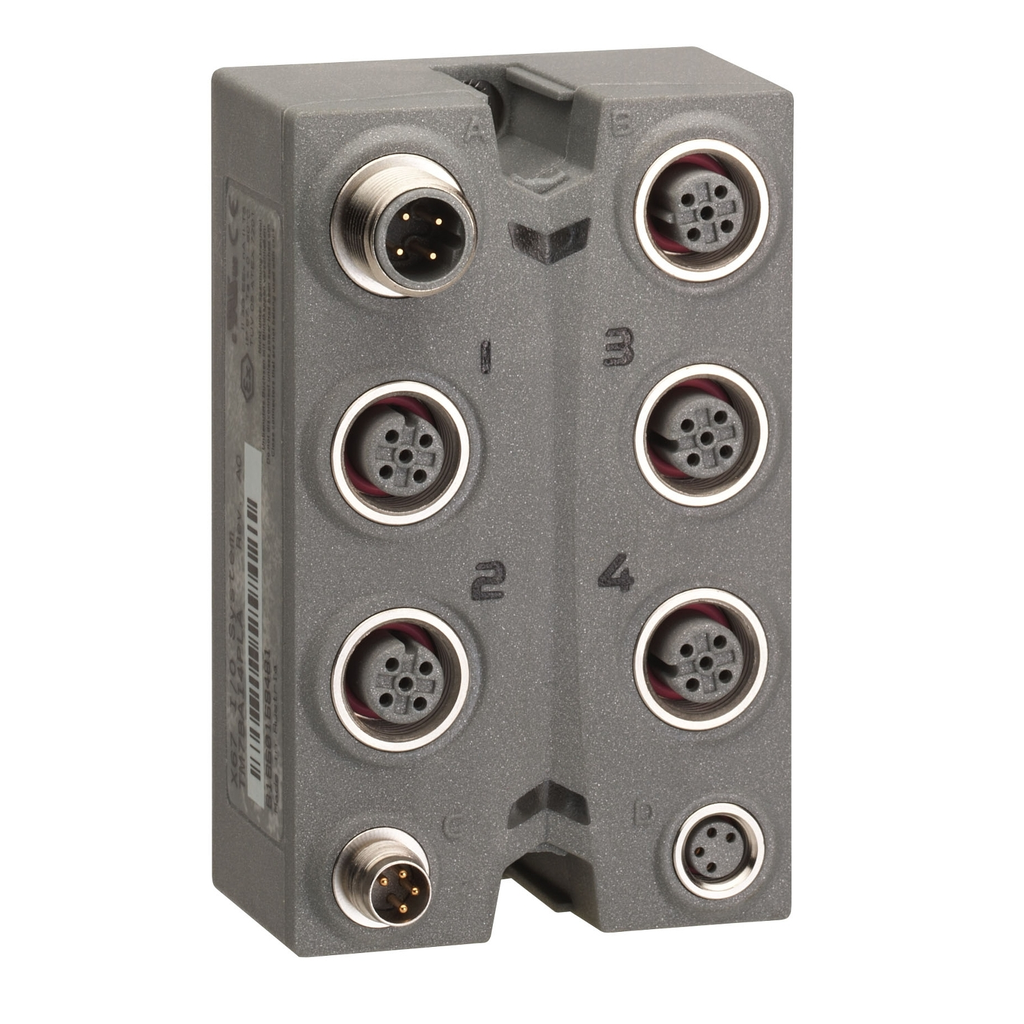

Mayer-DDS-Analog I/O expansion block, Modicon TM7, IP67, 2 AI/2AO, 0 20 mA, M12 connector-1
  • Country of Origin: Austria
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005062_3D-CAD&p_File_name=MCADID0005062_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005062_3D-CAD&p_File_name=MCADID0005062_2D-back.dwg
    • https://downlo
  • IP Degree Of Protection
    • IP67 conforming to IEC 61131-2
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • 1 male connector M12 - B coding - 4 ways bus IN
    • 1 female conne
  • Sensor Power Supply
    • 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
    • 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarit
  • Accessories
    • TM7ACMP
    • TM7ACCA
    • TM7ACYCJ
    • TM7ACYC
    • TM7ACTLA
  • Vibration Resistance
    • 7.5 mm constant amplitude (f= 2-8 Hz) conforming to IEC 60721-3-5 Class 5M3
    • 2 gn constant acceleration
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Resistance To Fast Transients
    • 2 kV IEC 61000-4-4 power supply)
    • 1 kV IEC 61000-4-4 input/output)
    • 1 kV IEC 61000-4-4 shielded cable)
    • 1 kV IEC 61000-4-4 sh
  • Relative Humidity
    • 5-95 % without condensation or dripping water
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Surge Withstand
    • 1 kV power supply (common mode) IEC 61000-4-5
    • 0.5 kV power supply (differential mode) IEC 61000-4-5
    • 0.5 kV p
  • Resistance To Electrostatic Discharge
    • 6 kV in contact IEC 61000-4-2
    • 8 kV in air IEC 61000-4-2
  • Resistance To Electromagnetic Fields
    • 10 V/m 0.08-2 Hz IEC 61000-4-3
    • 1 V/m 2-2.7 Hz IEC 61000-4-3
  • Shock Resistance
    • 30 gn 11 ms IEC 60721-3-5 Class 5M3
  • Local Signalling
    • 2 LEDs for bus diagnostic
    • 2 LEDs for sensor/actuator power supply status
  • UE Rated Operational Voltage
    • 24 V DC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 4/5/2025
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409005EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 231.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : analog I/O expansion block
    • Range Of Product : Modicon TM7
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1409005EN
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : analog I/O expansion block
    • Range Of Product : Modicon TM7
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=64248079&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1409005EN
    • Environmental Disclosure : ENVPEP1409005EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1409005EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Output Number Of Splitter Box : 2 I + 2 O
  • Specifications
    • Country of Origin : Austria
