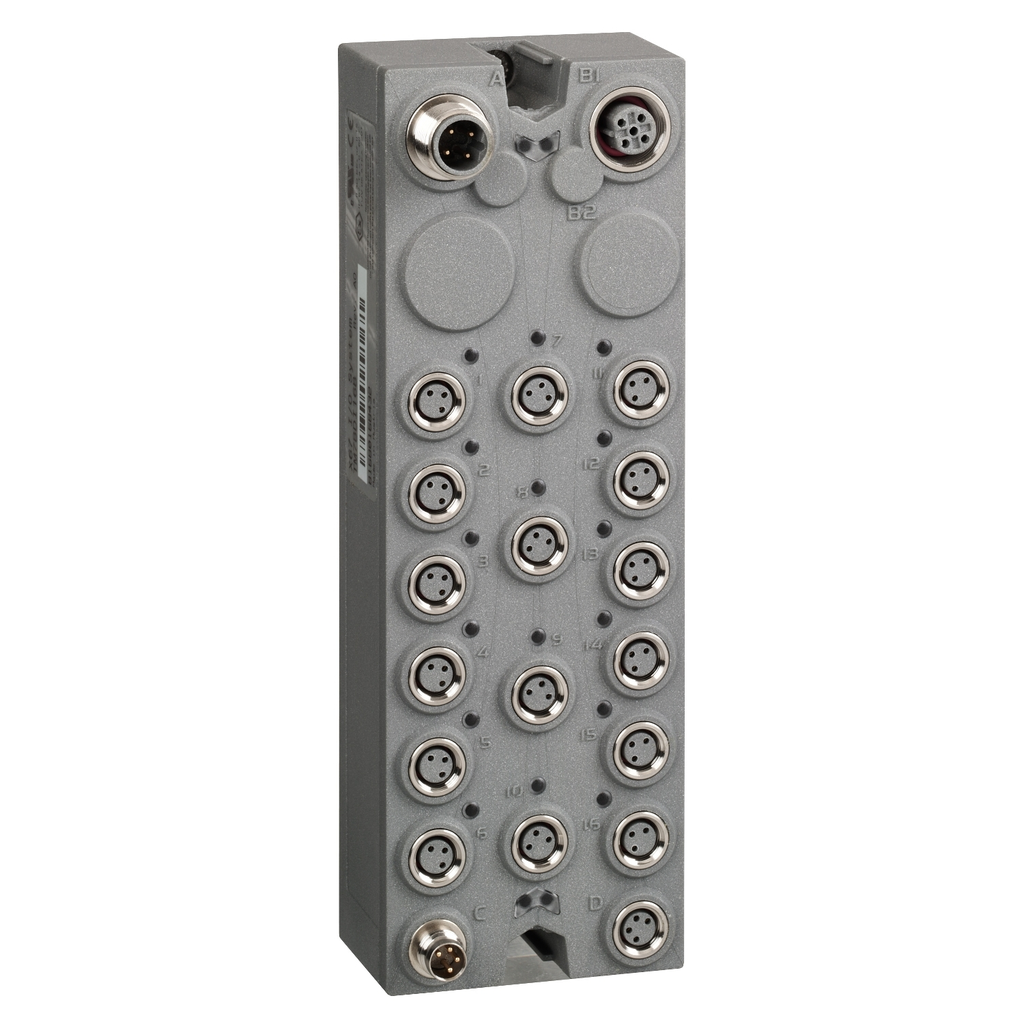

Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector

IP67 EXP. BLOCK 16 DI/DO 24VDC

SQDTM7BDM16B TM7BDM16B 3595864093109
1132.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector-1
  • Warranty Length: 18 mth
This product is part of the Modicon TM7, an IP67 modular I/O system. It is a Discrete I/O expansion block. This discrete I/O block provides 16 discrete inputs (24V DC) with sink discrete input logic and 16 Transistor/Source outputs (24V DC). This discrete I/O block is used in remote I/O configuration or in distributed I/O islands on the CANopen bus. The 16 discrete inputs or inputs are configurable by software. The IO connection is made with 3-way female M8 connector with 1 channel per connector. The bus expansion cable is connected on 2X M12 (IN/OUT) 4-way connector. It is made with platic, with an IP67 rated level, and weighs 0.32kg. This IP67 protection I/O block has been developed to create flexible, scalable I/O configurations for automation solutions in harsh environments. This product is certified by C-Tick, ATEX II 3g EEx nA II T5, cURus, GOST-R, and IEC 61131-2, and marked CE. This I/O block is compatible with TM7 I/O expansion bus, TM7 bus expansion cable, and with Modicon M2xx plcs, and Modicon TM5 I/O modular system. It instals in any position with 2 screws. Modicon TM7 is an IP67 distributed I/O system. Modicon TM7 I/O system is flexible and scalable, and designed to work in harsh environment.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : C-tick, ATEX II 3g EEx nA II T5, cURus, GOST-R
    • Standards : IEC 61131-2
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Electrical Connection : 1 male connector M12 - B coding - 4 ways bus IN, 1 female connector M12 - B coding - 4 ways bus OUT, 1 male connector M8 - 4 ways power IN, 1 female connector M8 - 4 ways power OUT, 16 female connectors M8 - 3 ways sensor or actuator
    • Electromagnetic Compatibility : electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2, electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3, electrical fast transient/burst immunity test, 2 kV power supply IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV input/output IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4, 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) IEC 61000-4-5, conducted RF disturbances IEC 61000-4-6, conducted and radiated emissions CISPR 11
    • Local Signalling : 2 LEDs for bus diagnostic, 2 LEDs for sensor power supply diagnostics
    • Vibration Resistance : 7.5 mm 2-8 Hz) IEC 60721-3-5 Class 5M3, 2 gn 8-200 Hz) IEC 60721-3-5 Class 5M3, 4 gn 200-500 Hz) IEC 60721-3-5 Class 5M3
    • Carbon Footprint Of The Distribution Phase A4 : 0, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4301808970726137, 0.4 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.51050735169279
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 85 kg CO2 eq., 84.69252033360647
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409005EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Bearing Track Assembly Possible : true
    • Front Installation Possible : false
    • IO Link Master Present : false
    • Network Type : DC
    • Optical Interface Present : false
    • Package Weight Lbs : 338.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : discrete I/O expansion block
    • Rack Assembly Possible : false
    • Radio Standard Bluetooth : false
    • Radio Standard GPRS : false
    • Radio Standard GSM : false
    • Radio Standard UMTS : false
    • Range Of Product : Modicon TM7
    • Returnability : No
    • Shock Resistance : 30 gn 11 msIEC 60721-3-5 Class 5M3
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For TCP IP : false
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 104 kg CO2 eq.
    • Wall Mounting Direct Mounting Possible : false
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • DC Supply Voltage : 24-24 V
    • Digital Outputs Configurable : true
    • Fieldbus Connection Over Separate Bus Coupler Possible : false
    • Pep Code : ENVPEP1409005_V2
    • Pep Verification Date : 2025-12-24
    • PCR Version : PCR-4-ed4-FR-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To communicate with the remote I/O 100% of the time, for 10 years with a dissipated power of 27,41W in harsh environment.
    • Functional Unit Unit : unit
    • Performance Level According To En Iso 13849 1 : none
    • System Accessory : false
    • Digital Inputs Configurable : true
    • Short Circuit Protection Outputs Present : false
    • Time Delay At Signal Change : 0.3-0.3 ms
    • Product Kit Identifier : N
    • Product Manager : DAVID LATRE
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 103.63320858237188
    • Ambient Air Temperature For Operation : -10-60 °C
    • Ambient Air Temperature For Storage : -25-85 °C
    • Circularity Profile : ENVEOLI1409005EN
    • Environmental Disclosure : ENVPEP1409005_V2
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation or dripping water
    • Pep Code : ENVPEP1409005_V2
    • Pep Verification Date : 2025-12-24
    • PCR Version : PCR-4-ed4-FR-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete I/O expansion block
    • Range Of Product : Modicon TM7
  • Output Attributes
    • Discrete Output Number : 16 at 24 V DC
    • Discrete Output Voltage : 24 V DC
    • Discrete Output Voltage Type : DC
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Current : 4.4 mA at 24 V DC
    • Discrete Input Number : 16 at 24 V DC
    • Discrete Input Voltage : 24 V DC
    • Discrete Input Voltage Type : DC
