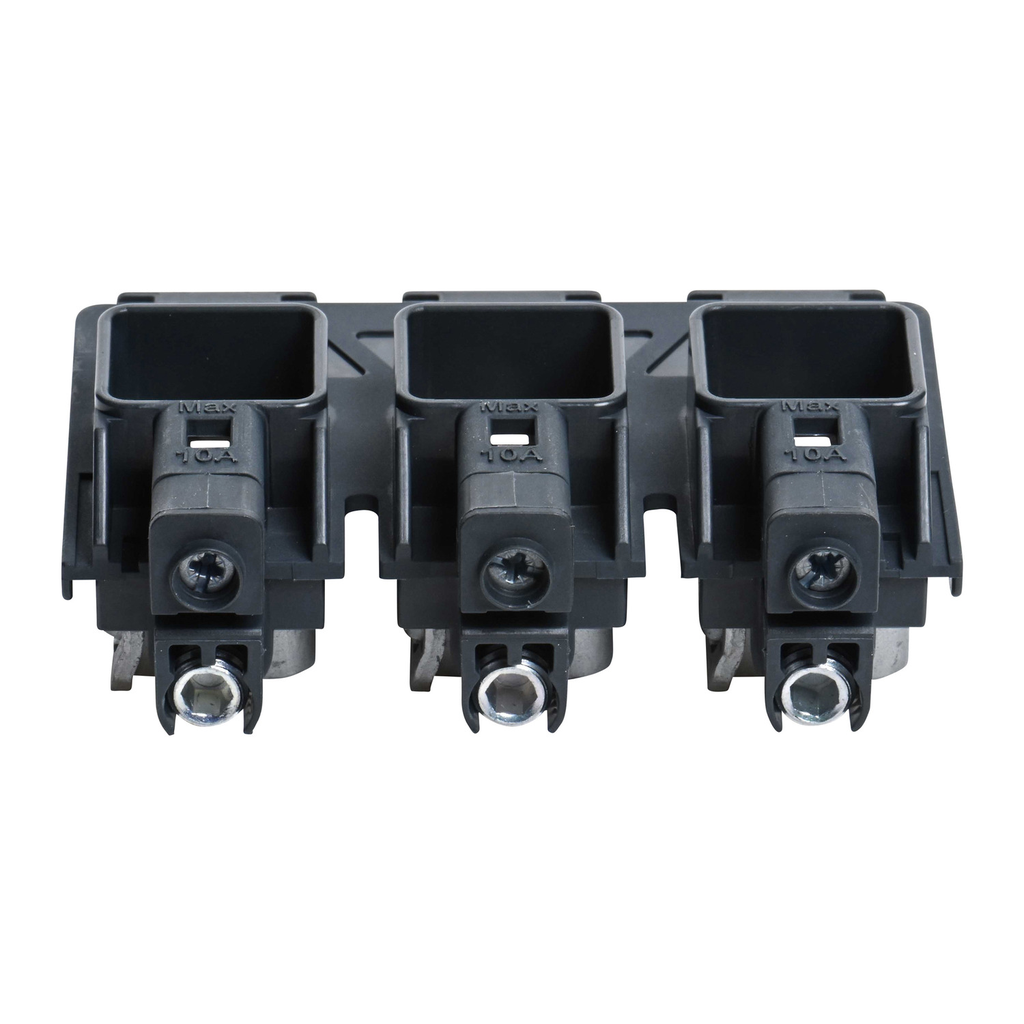

EverLink connector with control wire terminal for 3P

EverLink connector with control wire terminal for 3P

SQDLV426974 LV426974 3606481154491
66.80 / EA
  • Conductor Material: Steel
  • Line Rated Current: 15-100 A, 15-125 A
Powerpact B-Frame Circuit Breaker connectors, LV426974, offers proven performance, flexibility, and reliability. The EverLink lug8 with creep9 compensation makes it possible to achieve accurate and durable tightening torque. They minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks encountered during equipment transit and handling. EverLink lugs help maintain low resistance connections for continuity of service. PowerPact B-frame ratings and types. Available in 1, 2, 3, and 4-pole unit mount construction & 1, 2, and 3-pole I-Line™ construction. Cost-effective fixed thermal-magnetic trip units from 15-125A up to 600Y/347 Vac. Interrupting ratings include D-18 kA, G-35 kA, and J-65 kA at 480 Vac. Unique I-Line construction mounts into Square D™ panelboards and switchboards. Designed to the same 1.5" per pole widths as the legacy F-frame, simplifying substitution without blank fillers. Unit mount (aka, lug-lug) construction is 30% smaller in size with 25% more capacity than the legacy unit-mount F-frame design EverLink atented technology. EverLink lug connectors reduce the loosening of cables over time using a spring tension design. EverLink lugs are rated for bare use with fine-stranded conductors up to Class K. EverLink lugs are also available with unique integrated control wire terminals.
  • Product Description
  • Specifications
Powerpact B-Frame Circuit Breaker connectors, LV426974, offers proven performance, flexibility, and reliability. The EverLink lug8 with creep9 compensation makes it possible to achieve accurate and durable tightening torque. They minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks encountered during equipment transit and handling. EverLink lugs help maintain low resistance connections for continuity of service. PowerPact B-frame ratings and types. Available in 1, 2, 3, and 4-pole unit mount construction & 1, 2, and 3-pole I-Line™ construction. Cost-effective fixed thermal-magnetic trip units from 15-125A up to 600Y/347 Vac. Interrupting ratings include D-18 kA, G-35 kA, and J-65 kA at 480 Vac. Unique I-Line construction mounts into Square D™ panelboards and switchboards. Designed to the same 1.5" per pole widths as the legacy F-frame, simplifying substitution without blank fillers. Unit mount (aka, lug-lug) construction is 30% smaller in size with 25% more capacity than the legacy unit-mount F-frame design EverLink atented technology. EverLink lug connectors reduce the loosening of cables over time using a spring tension design. EverLink lugs are rated for bare use with fine-stranded conductors up to Class K. EverLink lugs are also available with unique integrated control wire terminals.
  • Specifications
    • Range Compatibility : PowerPact B
    • Poles Description : 3P
    • Product Or Component Type : cable connector
    • Accessory / Separate Part Type : connection accessories
    • Device Short Name : connectors
  • Complementary
    • Conductor Material : steel
    • Current Of Common : 10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded || 10 A 1.5-6 mm² AWG 20...AWG 10), rigid
    • Quantity Per Set : set of 1
    • Location Of Connection : downstream || upstream
    • Line Rated Current : 15-125 A copper || 15-100 A aluminium
    • Connections - Terminals : screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1610005EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Halogen Content Performance : Halogen free product
