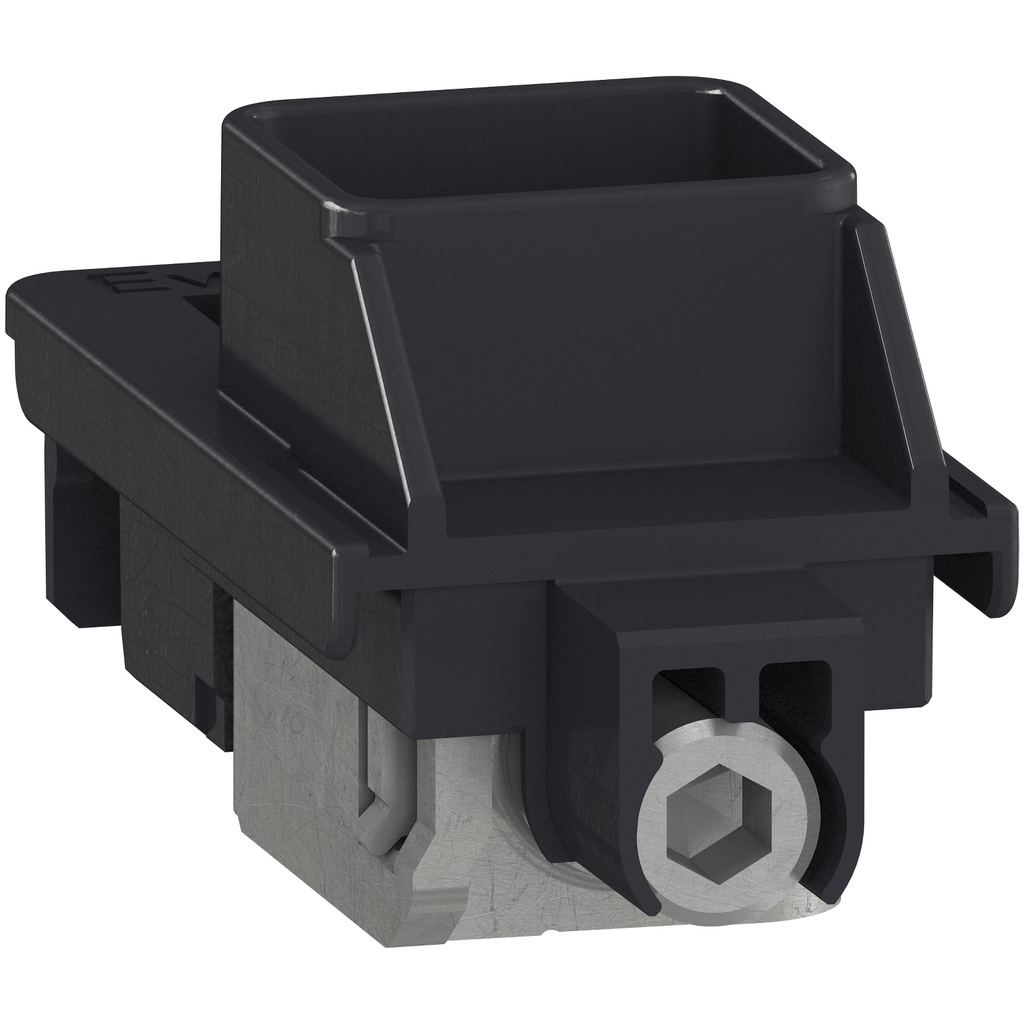

EverLink connector for 1P

EverLink connector for 1P

SQDLV426972 LV426972 360648115447
0.00 / EA
  • Conductor Material: Steel
  • Line Rated Current: 15-100 A, 15-125 A
Powerpact B-Frame Circuit Breaker connectors, LV426972, offers proven performance, flexibility, and reliability. The EverLink lug8 with creep9 compensation makes it possible to achieve accurate and durable tightening torque. They minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks encountered during equipment transit and handling. EverLink lugs help maintain low resistance connections for continuity of service. PowerPact B-frame ratings and types. Available in 1, 2, 3, and 4-pole unit mount construction & 1, 2, and 3-pole I-Line™ construction. Cost-effective fixed thermal-magnetic trip units from 15-125A up to 600Y/347 Vac. Interrupting ratings include D-18 kA, G-35 kA, and J-65 kA at 480 Vac. Unique I-Line construction mounts into Square D™ panelboards and switchboards. Designed to the same 1.5" per pole widths as the legacy F-frame, simplifying substitution without blank fillers. Unit mount (aka, lug-lug) construction is 30% smaller in size with 25% more capacity than the legacy unit-mount F-frame design EverLink atented technology. EverLink lug connectors reduce the loosening of cables over time using a spring tension design. EverLink lugs are rated for bare use with fine-stranded conductors up to Class K. EverLink lugs are also available with unique integrated control wire terminals.
  • Specifications
  • Poles Description : 1P
  • Range Compatibility : PowerPact B
  • Device Short Name : connectors
  • Accessory / Separate Part Type : connection accessories
  • Product Or Component Type : cable connector
  • Complementary
    • Location Of Connection : upstream || downstream
    • Line Rated Current : 15-125 A copper || 15-100 A aluminium
    • Conductor Material : steel
    • Connections - Terminals : screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded
    • Quantity Per Set : set of 1
  • Offer Sustainability
    • Mercury Free : Yes
    • Pvc Free : Yes
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1610005EN
    • Halogen Content Performance : Halogen free product
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Compliant
