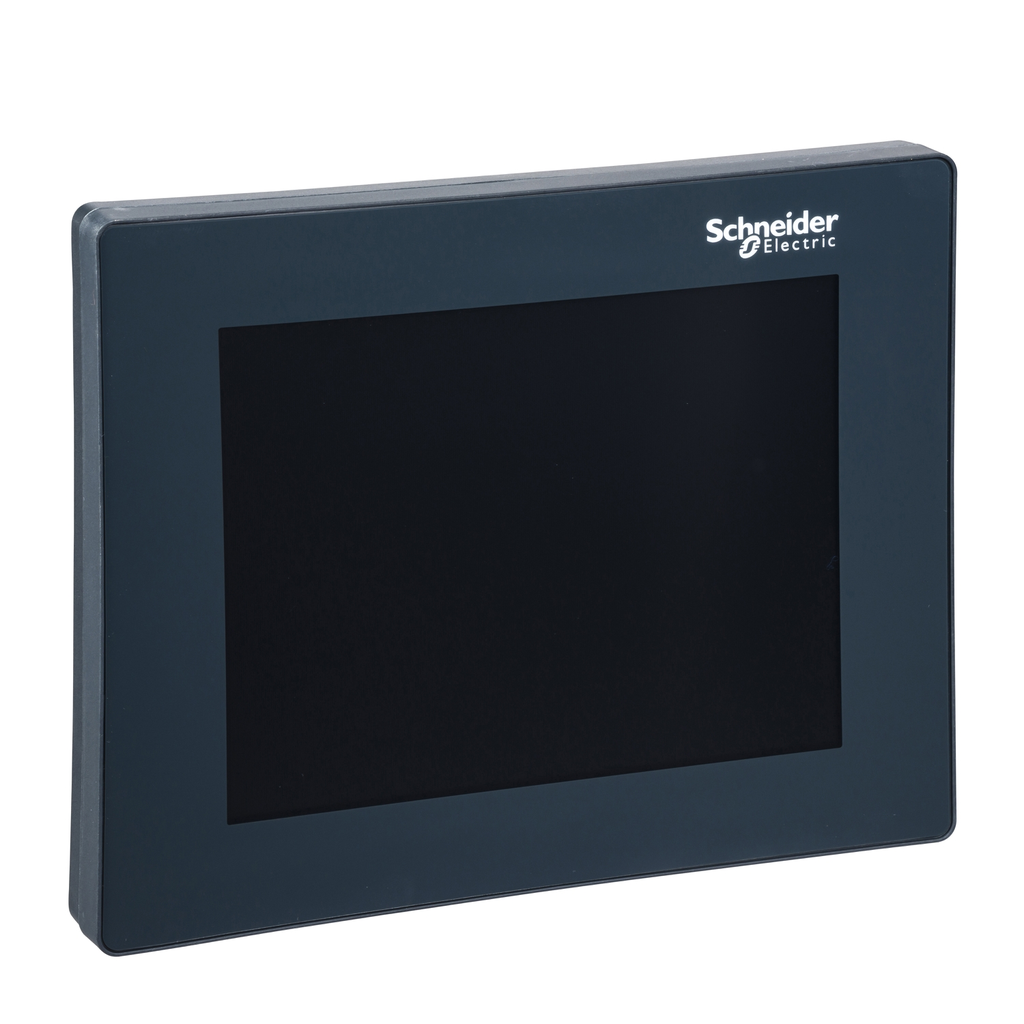

This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Us Rated Supply Voltage : 24 V DC - 15...20 %
• Important Information Attributes
• Persona Type Ids : LC, PB, SI
• Persona Type Names : Contractor, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Function Of Module : remote control, view network, metering, display alarm
• Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
• Accessory Separate Part Category : spare part ComPact NS630b...1600, spare part ComPact NS1600b...3200, display and signalling accessory
• Carbon Footprint Of The Distribution Phase A4 : 0.11128, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.101
• Carbon Footprint Of The Installation Phase A5 : 0.34994, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 37 kg CO2 eq., 37.19
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 73 kg CO2 eq., 73.245
• Certificate Agency : CE, CSA, UL
• Other Technical Guide : https://download.schneider-electric.com/files?p_Doc_Ref=ESXP1G003EN&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Manufacturing Carbon Footprint : 37.19
• Use Carbon Footprint : 73.245
• End Of Life Carbon Footprint : 1.101
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 2
• Scope Perimeter : At least in Europe
• Bvb : Recommended
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2305023EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1902
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : FDM128
• Control Type : remote control
• Device Short Name : FDM128
• Display Resolution : 320 x 240 pixels QVGA
• Display Type : active matrix colour TFT LCD with LED backlight
• Energy Efficiency Optimized : False
• Halogen Free Status : Product contains halogen above thresholds
• Mounting Mode : flush mounting
• Mounting Support : surface mount with kit
• Power Consumption In W : 6.8 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Name : Enerlin'X FDM
• Product Or Component Type : display module
• Range : Enerlin'X
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 112 kg CO2 eq.
• View Angle Horizontal X Vertical : 70 x 80°
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2305023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : referent product
• Functional-unit Description : FDM128 is part of EnerlinX communication system, and it collects data from up to 8 devices via Ethernet network and intend to display the measurements, alarms, and operating assistance data for 10 years in accordance with CE, CSA and UL standards.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 178.704
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; CN
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential, In % : 6
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 129 mm
• Width Nominal : 163 mm
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] : 37.146
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] : 73.147
• Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4] : 1.0755
• Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] : 37.19
• Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] : 73.245
• Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4] : 1.101
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle : 2344.0182
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 460.03
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 1.5504
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] : 3.6438
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 1866.1
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 12.694
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] : -4.125
• Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 969.92
• Ecotoxicity (Fresh Water) (Ctue) Installation [A5] : 2.3859
• Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] : 788.79
• Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] : 309.85
• Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] : -4.3114
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 54.015
• Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -4.2823
• Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] : 1.4574
• Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4] : 1.8328
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 35.123
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] : 108.9
• Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] : -2.2503
• Materials For Recycling (Kg) Installation [A5] : 0.1921
• Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 0.2315
• Net Use Of Fresh Water (M3) End Of Life [C1-c4] : 4.0565
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 8.8695
• Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 1.1372
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 10.538
• Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -2.0199
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 9.4403
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 9.4403
• Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 2718.3984
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 475.13
• Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 1.5525
• Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 3.9049
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 2224.4
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 13.411
• Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -4.3702
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 15.095
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 358.33
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 9.4403
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 9.4403
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 2334.5782
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 450.59
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 1.5504
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 3.6438
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 1866.1
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 12.694
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -4.125
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 1.042
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 1.042
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 14.053
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 358.33
• Use Of Secondary Materials (Kg) Total Life Cycle : 0.1585
• Use Of Secondary Materials (Kg) Manufacturing [A1-a3] : 0.1585
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -10-55 °C, -10-55 °C
• Ip Degree Of Protection : IP54, IP65 front face:
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 111.99722
• Circularity Profile : ENVEOLI2305023EN
• Environmental Disclosure : ENVPEP2305023EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2305023EN
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Range Of Product : ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
• Product Or Component Type : display module
• ETIM
• ETIM 8 : EC002498
• ETIM 9 : EC002498
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, China, France, United States, ZZ
• Depth : 56.5 mm
