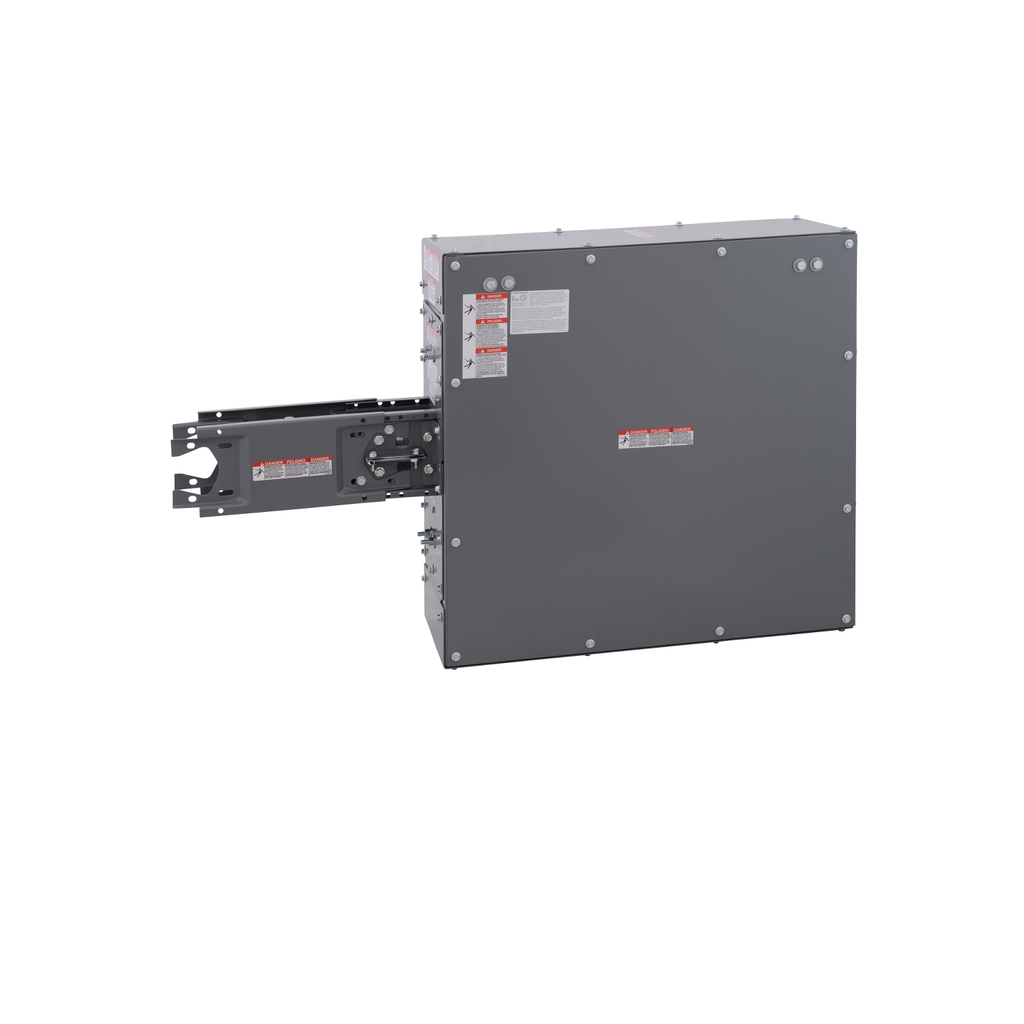

End tap box, I-Line Busway, max 2500A rated, aluminum, bolt connection, 4 wire [TAA]

BUSWAY END TAP BOX

SQDAF2525GETBMB AF2525GETBMB 785901171553
19483.64 / EACH
http://schema.org/OutOfStock
Mayer-DDS-End tap box, I-Line Busway, max 2500A rated, aluminum, bolt connection, 4 wire [TAA]-1
  • Height: 28 in
  • Length: 39.38 in
  • Warranty Length: 18 mth
  • Width: 20.88 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.
  • Carbon Footprint Of The Installation Phase A5
    • 11.595402479351772
    • 12 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 28 kg CO2 eq.
    • 28.332440586616137
  • Standards
    • UL 857
    • CSA C22.2 No 27:1994
    • IEC 61439-6
  • Ue Rated Operational Voltage
    • 600 V AC/DC 50/60 Hz
  • Material
    • aluminium: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 183 kg CO2 eq.
    • 183.1887540312529
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 1 775 kg CO2 eq.
    • 1775.3700204156335
  • Line Rated Current
    • 2500-2500 A aluminium
  • Persona Type Ids
    • LC
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 51.49176232092315
    • 51 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Destination
    • busbar trunking 2500-2500 A aluminium
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor.
    • B2B Bullet Point 2 : This product is TAA,BAA via COTS compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-30
    • Manufacturing Carbon Footprint : 183.188754031253
    • Distribution Carbon Footprint : 51.4917623209232
    • Installation Carbon Footprint : 11.5954024793518
    • Use Carbon Footprint : 1775.37002041563
    • End Of Life Carbon Footprint : 28.3324405866161
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1911
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Location : bolt
    • Package Weight Lbs : 92.986 kg
    • Phase : 3 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : end tap box
    • Protection Type : 50 percent capacity integral ground bus
    • Range Of Product : I-Line
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 050 kg CO2 eq.
    • Wiring Configuration : 4-wire
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 2049.9783798337776
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : end tap box
    • Range Of Product : I-Line
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=349645&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2049.97837983378
    • Environmental Disclosure : ENVPEP1407015_V2
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Height : 28 in
    • Width : 20.88 in
    • Length : 39.38 in
    • Compliance : TAA | BAA via COTS
