SQUARE D

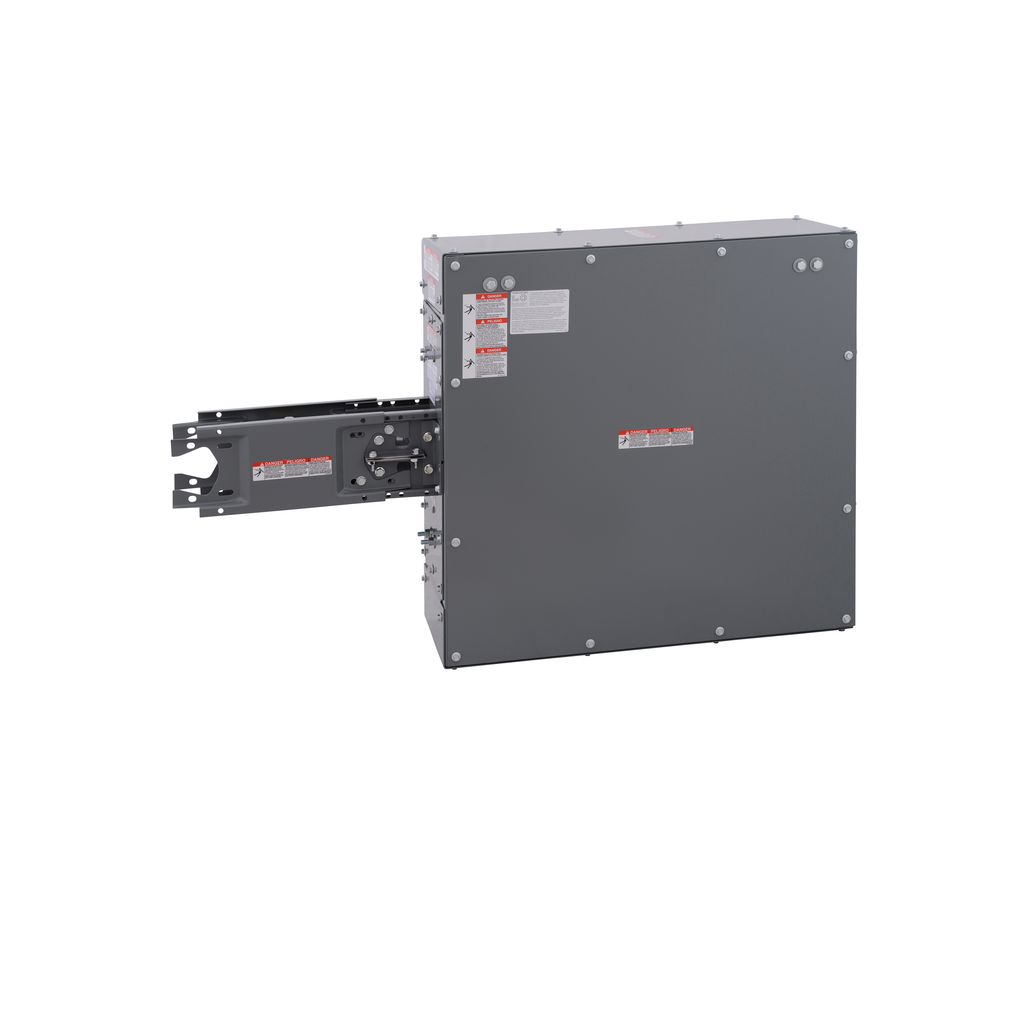

End tap box, I-Line Busway, max 2000A rated, copper, bolt connection, 3 wire

BUSWAY END CABLE TAP BOX

SQDCF2320GETBMB CF2320GETBMB 785901763413
14455.90 / EACH
http://schema.org/OutOfStock
Mayer-DDS-End tap box, I-Line Busway, max 2000A rated, copper, bolt connection, 3 wire-1
  • Height: 28 in
  • Length: 29.14 in
  • Line Rated Current: 2000-2000 A
  • Material: Copper: Busbar
  • Number of Phases: 3
  • Standard: CSA C22.2 No 27:1994, IEC 61439-6, UL 857
  • Warranty Length: 18 mth
  • Width: 14.88 in
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This end tap box is rated 2000A, that is ideal for 3 phase, 3 wire commercial or industrial applications. As an accessory, it is designed to be used at the end of a busway run and incorporate a short section of busway into their construction. This end tap box can be used with copper bolted busways. This end cap meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
QTY
  • Specifications
  • Environment
    • Standards : UL 857 || CSA C22.2 No 27:1994 || IEC 61439-6
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407014EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • [Ue] Rated Operational Voltage : 600 V AC/DC 50/60 Hz
    • Height : 28 in
    • Material : copper: busbar
    • Protection Type : 50 percent capacity integral ground bus
    • Wiring Configuration : 3-wire
    • Width : 14.88 in
    • Line Rated Current : 2000-2000 A copper
    • Location : bolt
    • Phase : 3 phase
    • Length : 29.14 in
    • Product Destination : busbar trunking 2000-2000 A copper
  • Specifications
    • Length : 29.14 in
    • Width : 14.88 in
    • Height : 28 in
    • Range Of Product : I-Line
    • Product Or Component Type : end tap box
