SQUARE D

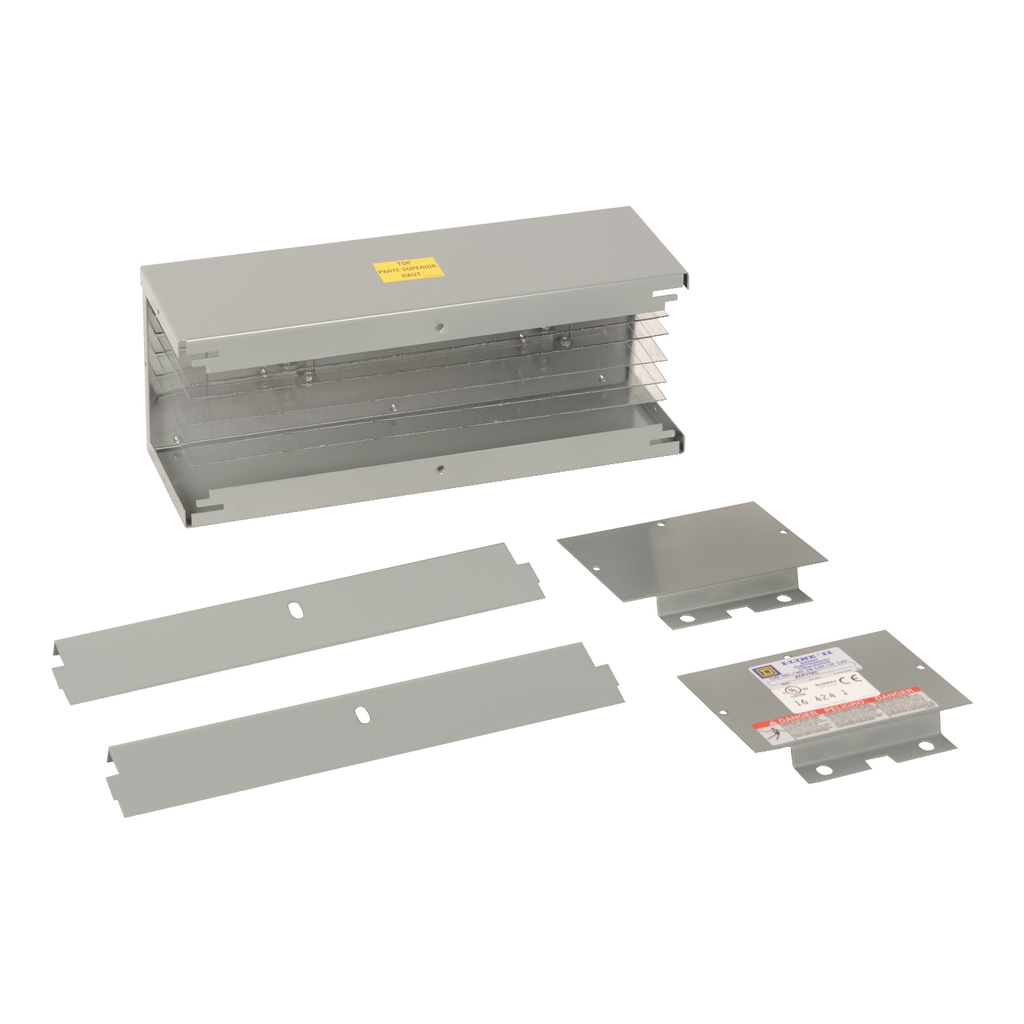

End cap, I-Line Busway, 2500A, 600VAC, 3 phase, 4 wire, feeder [TAA]

BUSWAY END CLOSURE

SQDACF17EC ACF17EC 785901816201
1345.68 / EACH
http://schema.org/OutOfStock
Mayer-DDS-End cap, I-Line Busway, 2500A, 600VAC, 3 phase, 4 wire, feeder [TAA]-1
  • Warranty Length: 18 mth
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This end cap is rated 2500A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to cap off the end of a busway run. This end cap can be used with aluminum and copper busways. This end cap meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
QTY
  • Product Description
  • Features
  • Specifications
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This end cap is rated 2500A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to cap off the end of a busway run. This end cap can be used with aluminum and copper busways. This end cap meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Standards : UL 857, CSA C22.2 No 27:1994, IEC 61439-6
  • Complementary Attributes
    • Ue Rated Operational Voltage : 600 V AC/DC 50/60 Hz
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB, SI
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Product Destination : busbar trunking 2500-2500 A aluminium end caps, busbar trunking 3200-3200 A copper end caps
    • Medium Desc : End cap, I-Line Busway, 2500A, 600VAC, 3 phase, 4 wire, feeder [TAA]
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-19
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Legacy Weee Scope : Out
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : End Closure
    • Range Of Product : I-Line
    • Returnability : Yes
    • Sustainable Packaging : No
    • Pep Code : ENVPEP1407015EN
    • Height Nominal : 7.06 in
    • Length Total : 16.72 in
    • Width Nominal : 1 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407015EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Pep Code : ENVPEP1407015EN
  • General Attributes
    • Product Or Component Type : End Closure
    • Range Of Product : I-Line
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Compliance : TAA Compliant | BAA Compliant via COTS
