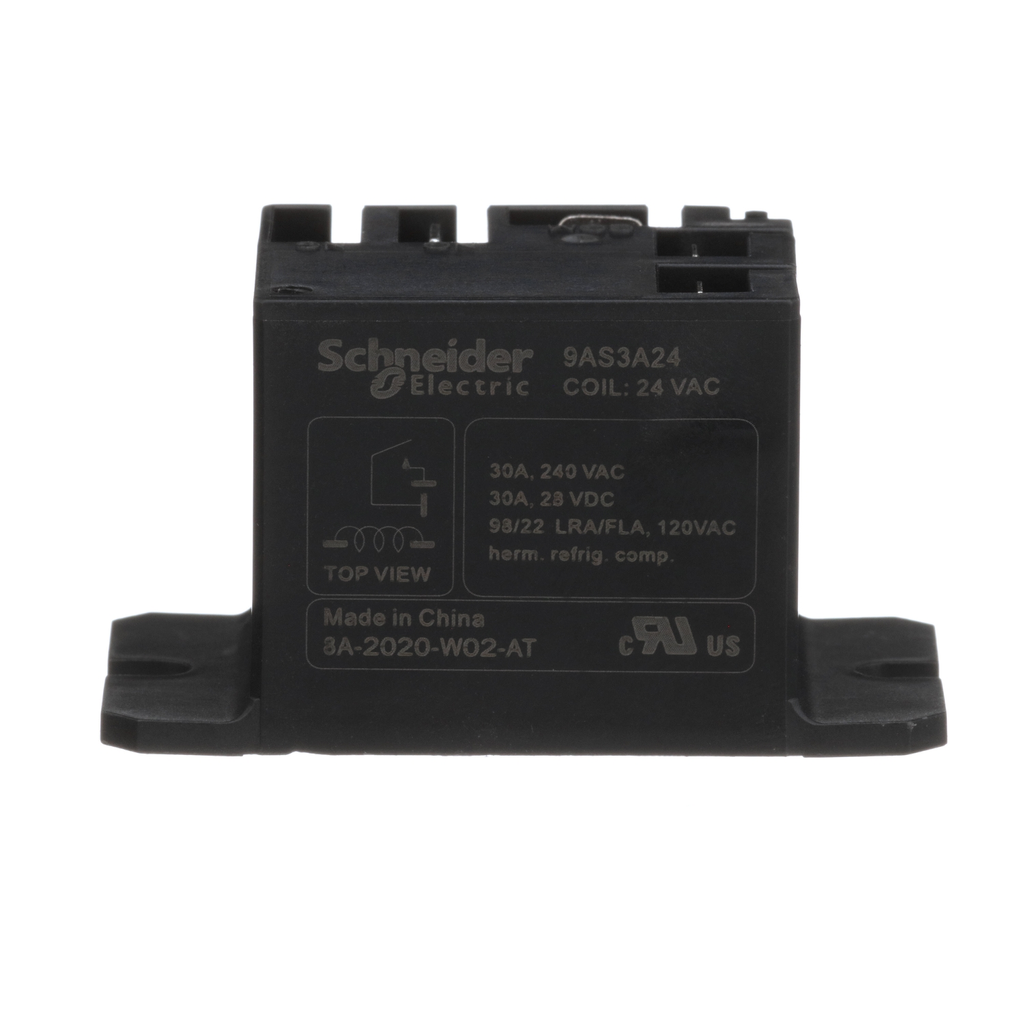

Electromechnical Power Relays, Harmony 9A, 30A, 24 VAC SPST-NO, flanged panel mount, sealed cover

ELECTROMECHNICAL POWER RELAYS,

SQD9AS3A24 9AS3A24 3606489915254
10.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-Electromechnical Power Relays, Harmony 9A, 30A, 24 VAC SPST-NO, flanged panel mount, sealed cover-2
  • Dielectric Strength: 1500 V, 2500 V
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Switching Voltage : 277 V AC, 277 V AC, 28 V DC, 28 V DC
    • Minimum Switching Capacity : 5 W at 1 A, 5 V DC, 5 W at 1 A, 5 V DC, 5 W at 1 A, 5 V DC, 5 W at 1 A, 5 V DC, 12 VA at 1 A, 12 V AC, 12 VA at 1 A, 12 V AC, 12 VA at 1 A, 12 V AC, 12 VA at 1 A, 12 V AC
    • Rated Power In HP : 1 hp at 125 V AC, 1 hp at 125 V AC, 1 hp at 125 V AC, 2 hp at 250 V AC, 2 hp at 250 V AC, 2 hp at 250 V AC
    • Rated Power In VA : 470 VA at 240 V on pilot duty, 470 VA at 240 V on pilot duty, 470 VA at 240 V on pilot duty
    • IE Rated Operational Current : 30 A at 240 V AC-1, 30 A at 240 V AC-1, 30 A at 240 V AC-1, 30 A at 28 V DC (on resistive load), 30 A at 28 V DC (on resistive load), 30 A at 28 V DC (on resistive load), 30 A at 28 V DC (on resistive load), 24 A at 240 V AC (on resistive load), 24 A at 240 V AC (on resistive load), 24 A at 240 V AC (on resistive load), 24 A at 240 V AC (on resistive load), 98 A at 120 V AC-8a (locked rotor), 98 A at 120 V AC-8a (locked rotor), 98 A at 120 V AC-8a (locked rotor), 98 A at 120 V AC-8a (locked rotor), 22 A at 120 V AC-8a (full load), 22 A at 120 V AC-8a (full load), 22 A at 120 V AC-8a (full load), 22 A at 120 V AC-8a (full load), 10 A at 277 V AC-5a (ballast), 10 A at 277 V AC-5a (ballast), 10 A at 277 V AC-5a (ballast), 10 A at 277 V AC-5a (ballast)
    • UC Control Circuit Voltage : 24 V AC 50-60 Hz, 24 V AC 50-60 Hz, 24 V AC 50-60 Hz
    • UIMP Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs, 4 kV 1.2/50 µs
  • Important Information Attributes
    • Average Resistance : 100 Ohm at 23 °C +/- 10 %, 100 Ohm at 23 °C +/- 10 %, 100 Ohm at 23 °C +/- 10 %
    • Dielectric Strength : 2500 V AC between coil and contact, 2500 V AC between coil and contact, 2500 V AC between coil and contact, 1500 V between contacts with micro disconnection, 1500 V between contacts with micro disconnection, 1500 V between contacts with micro disconnection
    • Electrical Durability : 100000 cycles, 30 A at 240 V, AC-1, 100000 cycles, 30 A at 240 V, AC-1, 100000 cycles, 30 A at 240 V, AC-1, 100000 cycles, 30 A at 240 V, AC-1, 50000 cycles for resistive load, 30 A at 28 V, DC, 50000 cycles for resistive load, 30 A at 28 V, DC, 50000 cycles for resistive load, 30 A at 28 V, DC, 50000 cycles for resistive load, 30 A at 28 V, DC, 50000 cycles for resistive load, 30 A at 28 V, DC, 100000 cycles for resistive load, 24 A at 240 V, AC, 100000 cycles for resistive load, 24 A at 240 V, AC, 100000 cycles for resistive load, 24 A at 240 V, AC, 100000 cycles for resistive load, 24 A at 240 V, AC, 100000 cycles for resistive load, 24 A at 240 V, AC, 30000 cycles for full load, 22 A at 120 V, AC-8a, 30000 cycles for full load, 22 A at 120 V, AC-8a, 30000 cycles for full load, 22 A at 120 V, AC-8a, 30000 cycles for full load, 22 A at 120 V, AC-8a, 30000 cycles for full load, 22 A at 120 V, AC-8a, 1000 cycles for motor load, 1000 cycles for motor load, 6000 cycles for ballast load, 10 A at 277 V, AC-5a, 6000 cycles for ballast load, 10 A at 277 V, AC-5a, 6000 cycles for ballast load, 10 A at 277 V, AC-5a, 6000 cycles for ballast load, 10 A at 277 V, AC-5a, 6000 cycles for ballast load, 10 A at 277 V, AC-5a
    • Mounting Support : panel flange, panel flange
    • Shock Resistance : 10 gn operating, 10 gn operating, 100 gn not operating, 100 gn not operating
    • Vibration Resistance : +/- 0.75 mm 10-55 Hz operating, +/- 0.75 mm 10-55 Hz operating, +/- 0.75 mm 10-55 Hz operating, +/- 0.75 mm 10-55 Hz not operating, +/- 0.75 mm 10-55 Hz not operating, +/- 0.75 mm 10-55 Hz not operating
    • IE Rated Operational Current : 30 A at 240 V AC-1, 30 A at 240 V AC-1, 30 A at 240 V AC-1, 30 A at 28 V DC (on resistive load), 30 A at 28 V DC (on resistive load), 30 A at 28 V DC (on resistive load), 30 A at 28 V DC (on resistive load), 24 A at 240 V AC (on resistive load), 24 A at 240 V AC (on resistive load), 24 A at 240 V AC (on resistive load), 24 A at 240 V AC (on resistive load), 98 A at 120 V AC-8a (locked rotor), 98 A at 120 V AC-8a (locked rotor), 98 A at 120 V AC-8a (locked rotor), 98 A at 120 V AC-8a (locked rotor), 22 A at 120 V AC-8a (full load), 22 A at 120 V AC-8a (full load), 22 A at 120 V AC-8a (full load), 22 A at 120 V AC-8a (full load), 10 A at 277 V AC-5a (ballast), 10 A at 277 V AC-5a (ballast), 10 A at 277 V AC-5a (ballast), 10 A at 277 V AC-5a (ballast)
    • Connections Terminals : Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm, Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm, Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm, Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm, Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm, Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm, Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm, Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-02
    • HTML Description : Electromechicial Power Relay, SPST-N.O., 24VAC, 30A, PANEL
    • Manufacturer : Square D
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2006003EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • Phenolic Free Solution : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Drop Out Voltage Threshold : >= 0.2 Uc
    • Package Weight Lbs : 32 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : power relay
    • Protection Category : RT III
    • Range Of Product : Harmony
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2006003EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Lead Free : Yes
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Circularity Profile : ENVEOLI2006003EN
    • Environmental Disclosure : ENVPEP2006003EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Pep Code : ENVPEP2006003EN
  • General Attributes
    • Product Or Component Type : power relay
    • Range Of Product : Harmony
  • Input Attributes
    • Input Current : 30 A
