SQUARE D

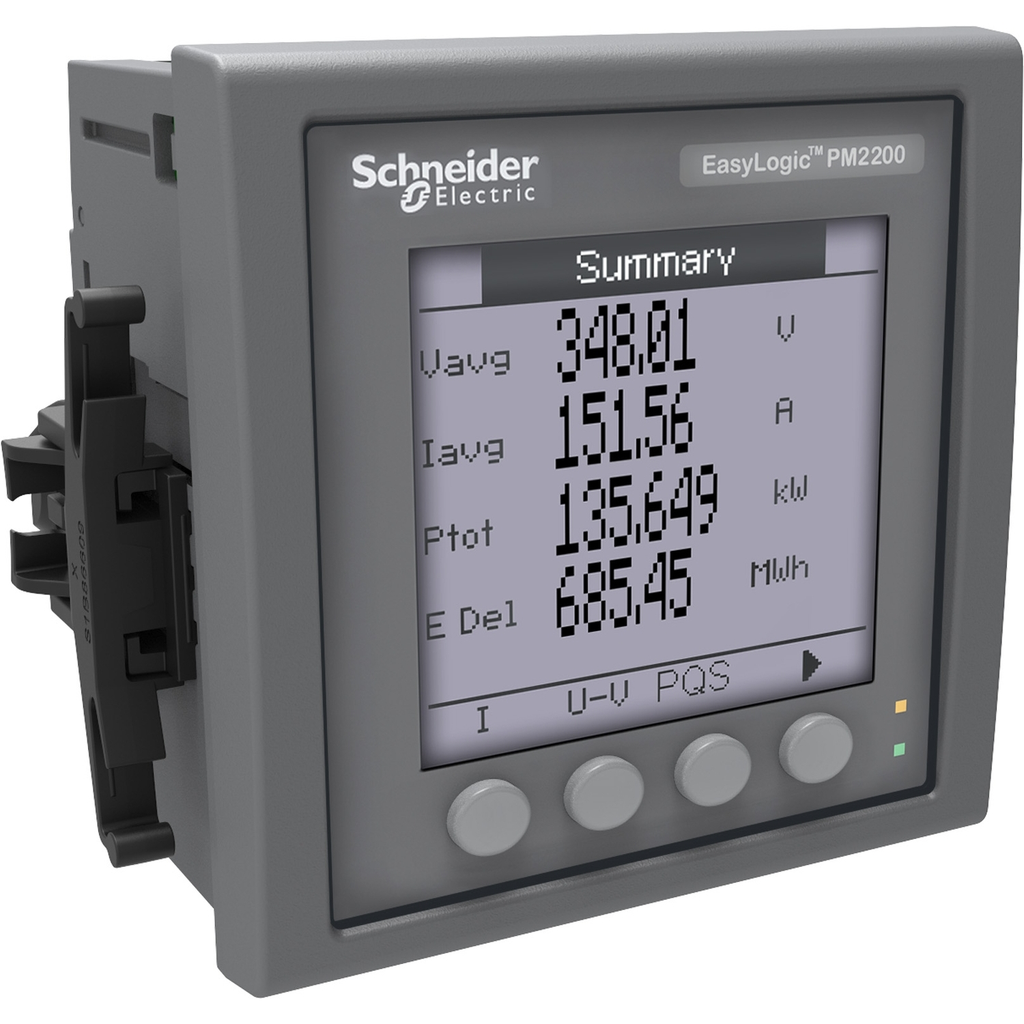

EasyLogic PM2230, Power & Energy meter, up to the 31st harmonic, LCD display, RS485, class 0.5S

EASYLOGIC PM2230, POWER & ENER

SQDMETSEPM2230 3606480800184
771.67 / EA
http://schema.org/OutOfStock
This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 0.5S complying to IEC 62053-22 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 31st Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 80 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. The meter can be upgraded with optional add on IO modules for WAGES monitoring. These module comes with either two channels each of digital inputs and outputs or analog inputs and outputs. This version can be configured for 23 different types of alarms stored in 40 registers. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
QTY
  • Product Description
  • Specifications
This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 0.5S complying to IEC 62053-22 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 31st Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 80 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. The meter can be upgraded with optional add on IO modules for WAGES monitoring. These module comes with either two channels each of digital inputs and outputs or analog inputs and outputs. This version can be configured for 23 different types of alarms stored in 40 registers. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
  • Specifications
    • Product Or Component Type : power meter
    • Product Name : EasyLogic PM2200
    • Range : EasyLogic
    • Device Short Name : PM2230
  • Complementary
    • Network Frequency : 60 Hz || 50 Hz
    • Communication Port Support : screw terminal block RS485
    • Power Quality Analysis : total harmonic distortion || up to the 31st harmonic
    • Height : 96 mm
    • Measurement Voltage : 35-480 V AC 50/60 Hz between phases || 20-277 V AC 50/60 Hz between phase and neutral || 480-999000 V AC 50/60 Hz with external VT
    • Sampling Rate : 64 samples/cycle
    • Maximum Power Consumption In W : 3.3 W power lines (AC)) || 3.3 W 277 V power lines (DC))
    • Number Of Outputs : 0
    • User Language : Russian || French || Portuguese || english || Spanish || Chinese || German
    • Product Certifications : CE IEC 61010-1 || cULus UL 61010-1 || cULus CSA C22.2 No 61010-1 || RCM || EAC || C-tick
    • Type Of Measurement : apparent power min/max, total || active and reactive power min/max, total || current min/max, avg || voltage min/max, avg || frequency min/max, avg || total current harmonic distortion THD (I) per phase || total voltage harmonic distortion THD (U) per phase || power factor min/max, avg || apparent energy total || active and reactive energy total
    • Communication Port Protocol : Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V
    • Frequency Measurement Range : 45-65 Hz
    • Communication Service : remote monitoring
    • Display Resolution : 128 x 128 pixels
    • Number Of Inputs : 0
    • Material : polycarbonate
    • Net Weight : 300 g
    • Tamperproof Of Settings : protected by access code
    • Provided Equipment : 1 x Installation guide
    • Depth : total 76.09 mm || embedded 61.64 mm
    • Measurement Current : 5-6000 mA
    • Local Signalling : Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) || Green LED module operation and integrated communication
    • Connections - Terminals : current transformer screw connection bottom) 6 || voltage inputs screw connection top) 4
    • Information Displayed : demand current past value) || demand current present value) || demand power past value) || demand power present value) || voltage || current || frequency || energy consumption || harmonic distortion || power factor || active power || apparent power || reactive power || unbalanced in % || harmonic amplitude
    • Electrical Insulation Class : double insulation || class II
    • Control Type : 4 x button
    • Function Available : real time clock
    • Flame Retardance : V-0 conforming to UL 94
    • [Us] Rated Supply Voltage : 80...277 V AC 45...65 Hz +/- 10 % || 100...277 V DC +/- 10 %
    • Mounting Mode : clip-on
    • Measurement Accuracy : apparent power +/- 0.5 % || active energy +/- 0.5 % || reactive energy +/- 1 % || active power +/- 0.5 % || voltage +/- 0.5 % || power factor +/- 0.01 || current +/- 0.5 % || frequency +/- 0.05 %
    • Mounting Support : framework
    • Compatibility Code : PM2230
    • Refresh Time : configurable from 1 to 60 min
    • Data Recording : energy consumption logs || power logs || time stamping || min/max for 8 parameters
    • Line Rated Current : 5 A || 1 A
    • Cybersecurity : enable/disable communication ports
    • Display Colour : monochrome
    • Analogue Input Type : current <= 0.3 mOhm) || voltage > 5 MOhm)
    • Mounting Position : vertical
    • Width : 96 mm
    • Display Type : Backlit LCD
    • Measurement Category : category III 480-480 V || category II 480-600 V
    • Device Application : power monitoring || sub billing
    • Metering Type : calculated neutral current || active power P, P1, P2, P3 || current I, I1, I2, I3 || peak demand power PM, QM, SM || voltage U, U21, U32, U13, V, V1, V2, V3 || peak demand currents || reactive power Q, Q1, Q2, Q3 || demand power P, Q, S || unbalance current || active, reactive, apparent energy (signed, four quadrant) || apparent power S, S1, S2, S3
    • Accuracy Class : class 1 reactive energy IEC 62053-24 || class 0.5S active energy IEC 62053-22 || class 5 harmonic distorsion (I THD & U THD)
    • Maximum Power Consumption In Va : 8 VA 277 V AC
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1510004
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1510004
    • Eu Rohs Directive : Compliant
  • Environment
    • Ambient Air Temperature For Operation : -10-60 °C
    • Electromagnetic Compatibility : electrostatic discharge IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3 || electrical fast transient/burst immunity test IEC 61000-4-4 || surge immunity test IEC 61000-4-5 || conducted RF disturbances IEC 61000-4-6 || magnetic field at power frequency IEC 61000-4-8 || voltage dips and interruptions immunity test IEC 61000-4-11 || emission tests FCC Part 15 class A
    • Pollution Degree : 2
    • Ambient Air Temperature For Storage : -25-70 °C
    • Relative Humidity : 5-95 % 50-50 °C
    • Service Life : 7 year(s)
    • Ip Degree Of Protection : front IP54 IEC 60529 || body IP30 IEC 60529
    • Overvoltage Category : III
    • Operating Altitude : <= 6561.68 ft (2000 m)
