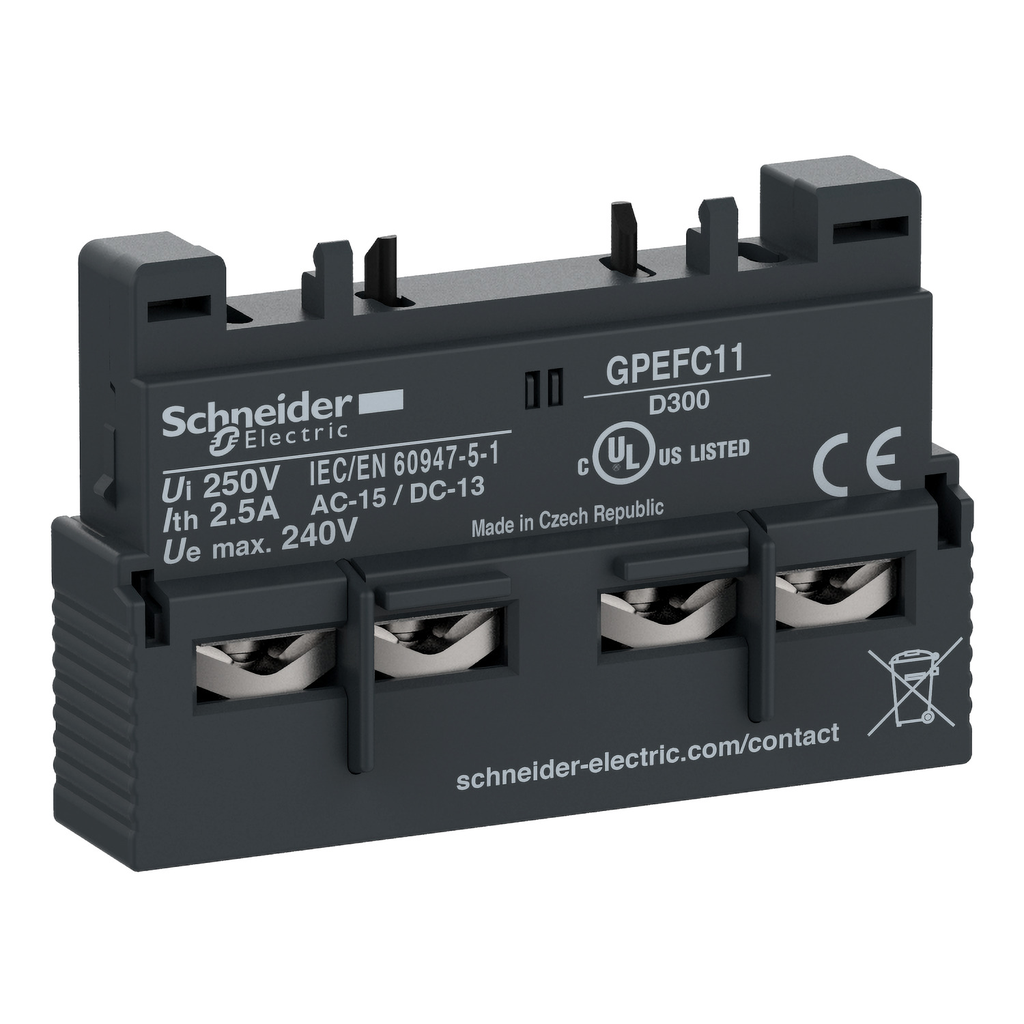

Easy TeSys GP2E auxiliary contact. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (CSA, UL).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003785_3D-CAD&p_File_name=MCADPD0003785_2D-top.dxf
• Physical Attributes
• Color : dark grey
• Complementary Attributes
• Rated Operational Power In Va : 120 VA 110-120 V AC-15 100000 cycles, 120 VA 230-240 V AC-15 100000 cycles, 48 VA 24-24 V AC-15 100000 cycles, 60 VA 48-48 V AC-15 100000 cycles
• Rated Operational Power In W : 15 W 48 V DC-13 100000 cycles, 24 W 24 V DC-13 100000 cycles, 9 W 60 V DC-13 100000 cycles
• Ue Rated Operational Voltage : 24...240 V AC, 24...60 V DC
• Ui Rated Insulation Voltage : 300 V UL 60947-4-1, 300 V cUL, 250 V IEC 60947-1
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Persona Type Ids : OM, OM8, PB, SC
• Persona Type Names : Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Protection Type : gG fuse 10 A, GB2CB06 circuit breaker 10 A
• Connections Terminals : screw clamp terminals: 2 cable(s) 0.75-2.5 mm² - flexible without cable end, screw clamp terminals: 1 cable(s) 1-2.5 mm² - solid, screw clamp terminals: 2 cable(s) 1-2.5 mm² - solid, screw clamp terminals: 1 cable(s) 0.75-2.5 mm² - flexible without cable end, screw clamp terminals: 1 cable(s) 0.75-1.5 mm² - flexible with cable end
• Carbon Footprint Of The Distribution Phase A4 : 0.0057631299125867775, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.04223131315143507
• Carbon Footprint Of The Installation Phase A5 : 0.0015142136172870977, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.10827823188769412
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.015510999999999997
• Medium Desc : Auxiliary contact block,Easy TeSys GP2E,1NO+1NC
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : In
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2207006
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Short Name : GPEFC
• Energy Efficiency Optimized : False
• Environmental Characteristic : normal environment
• Mechanical Durability : 100000 cycles
• Mounting Location : front side
• Pole Contact Composition : 1 NO + 1 NC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : auxiliary contact block
• Quantity Per Set : set of 10
• Range : Easy TeSys
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Ith Conventional Free Air Thermal Current : 2.5 A
• Pep Code : ENVPEP2207006EN
• Database Version : 2022-01
• Pep Verification Date : 2025-11-10
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Height Nominal : 11 mm
• Width Nominal : 45 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.17329788856900308
• Circularity Profile : ENVEOLI2207006
• Environmental Disclosure : ENVPEP2207006EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2207006EN
• Pep Verification Date : 2025-11-10
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : auxiliary contact block
• ETIM
• ETIM 8 : EC000041
• ETIM 9 : EC000041
