Thermal overload relay,Easy TeSys DPER,2.5-4A,class 10

THERMAL OVERLOAD RELAY 2.5...4

SQDDPER08 DPER08 3606485332499
28.55 / EA
http://schema.org/OutOfStock
Mayer-DDS-Thermal overload relay,Easy TeSys DPER,2.5-4A,class 10-1
  • Depth: 70 mm
  • Dielectric Strength: 1.89 kV, 50 Hz

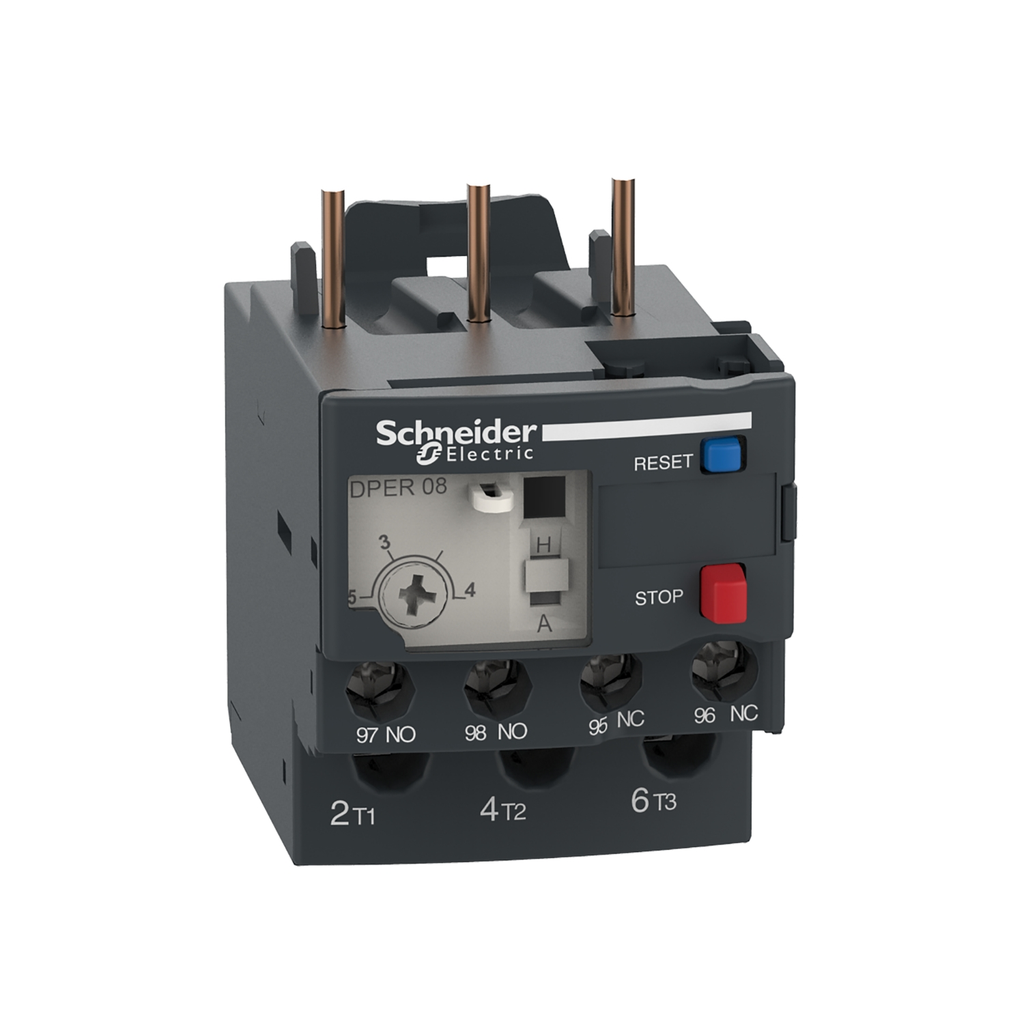

Easy TeSys DPER thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE09-D38. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (CSA, UL).
QTY
  • Product Description
  • Features
  • Specifications
Easy TeSys DPER thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE09-D38. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (CSA, UL).
  • Features
    • Provides you Essential control & protection for your applications
    • Designed to protect motors against overloads, phase failure
    • Simple to select and install at optimized budget
    • Reduced installation time
    • Robust performance for common applications
    • Flexibility to add motor disconnects to help meet NEC requirements
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Standards : EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, cUL
    • Product Certifications : cUL
  • Important Information Attributes
    • Control Type : Red push-button stop, Blue push-button reset
    • Mounting Support : separate, with specific accessories, under contactor
    • Network Type : DC, AC
    • Permissible Current : 3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
    • Protection Type : BS fuse 5 A - control circuit, GB2 circuit breaker 5 A - control circuit, gG fuse 5 A - control circuit
    • Temperature Compensation : -20-60 °C, -20-60 °C
    • Tightening Torque : control circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals
    • Ui Rated Insulation Voltage2 : power circuit 600 V cUL, power circuit 690 V IEC 60947-4-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.024163479198025903, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.21678519324421383
    • Carbon Footprint Of The Installation Phase A5 : 0.01635889814277638, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.0267614686619415
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 12 kg CO2 eq., 11.633004615445152
    • Connections Terminals : control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end
    • Connections Terminals3 : control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end, power circuit screw clamp terminals 1 1-4 mm² flexible with cable end, power circuit screw clamp terminals 1 1-6 mm² solid without cable end
    • Ui Rated Insulation Voltage5 : power circuit 600 V cUL, power circuit 690 V IEC 60947-4-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI0802006
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Device Short Name : DPER
    • Dielectric Strength : 1.89 kV 50 Hz IEC 60947-1
    • Fire Resistance : 850 °C IEC 60068-2-1
    • Network Frequency : 0...400 Hz
    • Package Weight Lbs : 140.9 g
    • Phase Failure Sensitivity : tripping current 130 % of Ir on two phase, the last one at 0
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : thermal overload relay
    • Protective Treatment : TH IEC 60068
    • Range : Easy TeSys
    • Relay Application : overload protection
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-7
    • Sustainable Packaging : Yes
    • Thermal Overload Class : class 10 IEC 60947-4-1
    • Thermal Protection Adjustment Range : 2.5-4 A
    • Total Lifecycle Carbon Footprint : 13 kg CO2 eq.
    • Tripping Threshold : 1.14 +/- 0.06 Ir IEC 60947-4-1
    • Vibration Resistance : 6 gn on plate IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 5 A signalling circuit
    • Ue Rated Operational Voltage2 : 690 V AC 0...400 Hz power circuit IEC 60947-4-1
    • Uimp Rated Impulse Withstand Voltage2 : 6 kV
    • Medium Desc : Thermal overload relay,Easy TeSys DPER,2.5-4A,class 10
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP0802006EN
    • Database Version : 2023-02
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Europe, EU-27
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Global Commercial Status : Commercialised
    • Product Name : Easy TeSys DPER
    • Ith Conventional Free Air Thermal Current5 : 5 A signalling circuit
    • Ue Rated Operational Voltage5 : 690 V AC 0...400 Hz power circuit IEC 60947-4-1
    • Uimp Rated Impulse Withstand Voltage5 : 6 kV
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 12.917073654692109
    • Ambient Air Temperature For Storage : -60-70 °C
    • Circularity Profile : ENVEOLI0802006
    • Environmental Disclosure : ENVPEP0802006EN
    • IP Degree Of Protection : IP20 conforming to IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : contactor DPE09-38
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP0802006EN
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : thermal overload relay
  • Surge Protection And Filtering Attributes
    • Surge Withstand : 6 kV IEC 60801-5
  • Specifications
    • Depth : 70 mm
