Certifications:
CSA, UL
-
Contact Configuration:
1 NO, 3 NO
-
Depth:
86 mm
-
Height:
77 mm
-
Impedance:
2.5 MOhm - Ith 25 A 50 Hz For Power Circuit
-
Net Weight:
0.32 kg
-
Standard:
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1
-
Storage Temperature:
-60-80 °C
-
Width:
45 mm

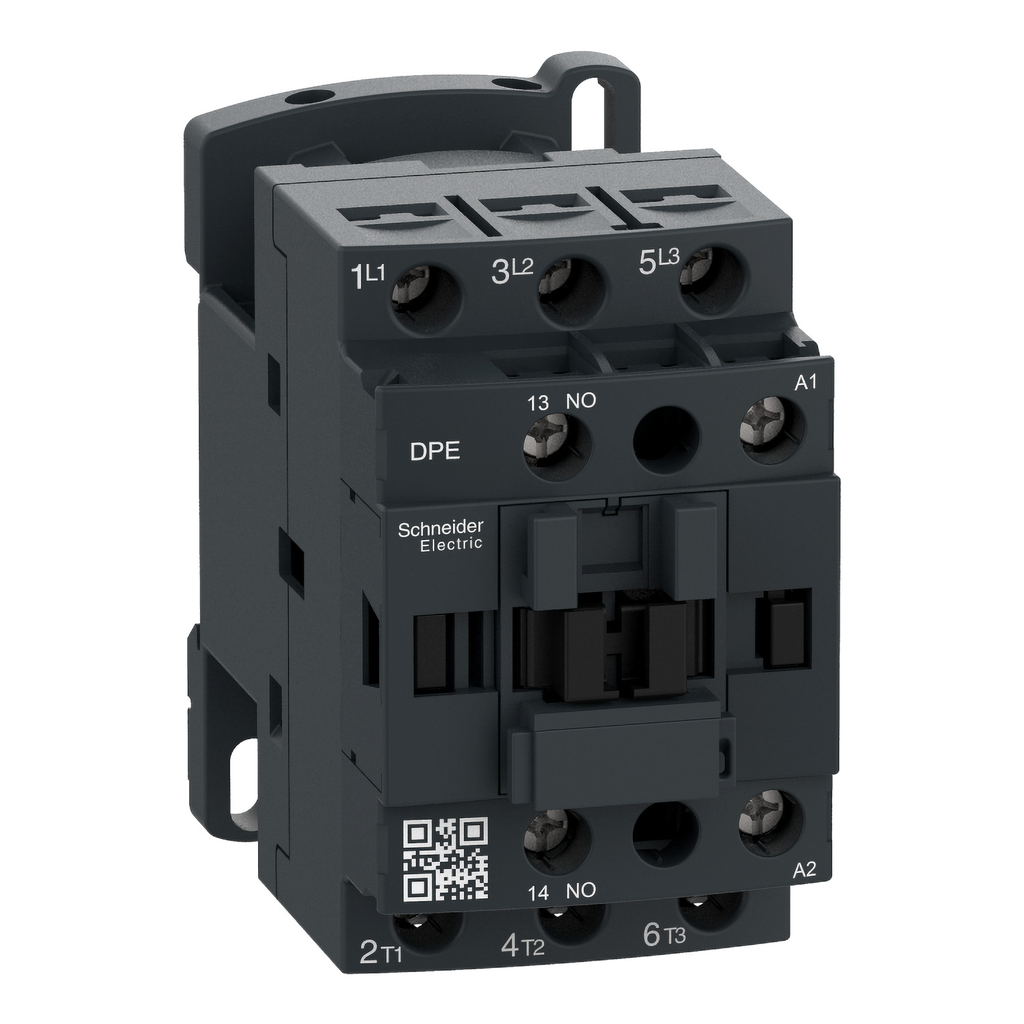

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (3 HP@480V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
