SQUARE D

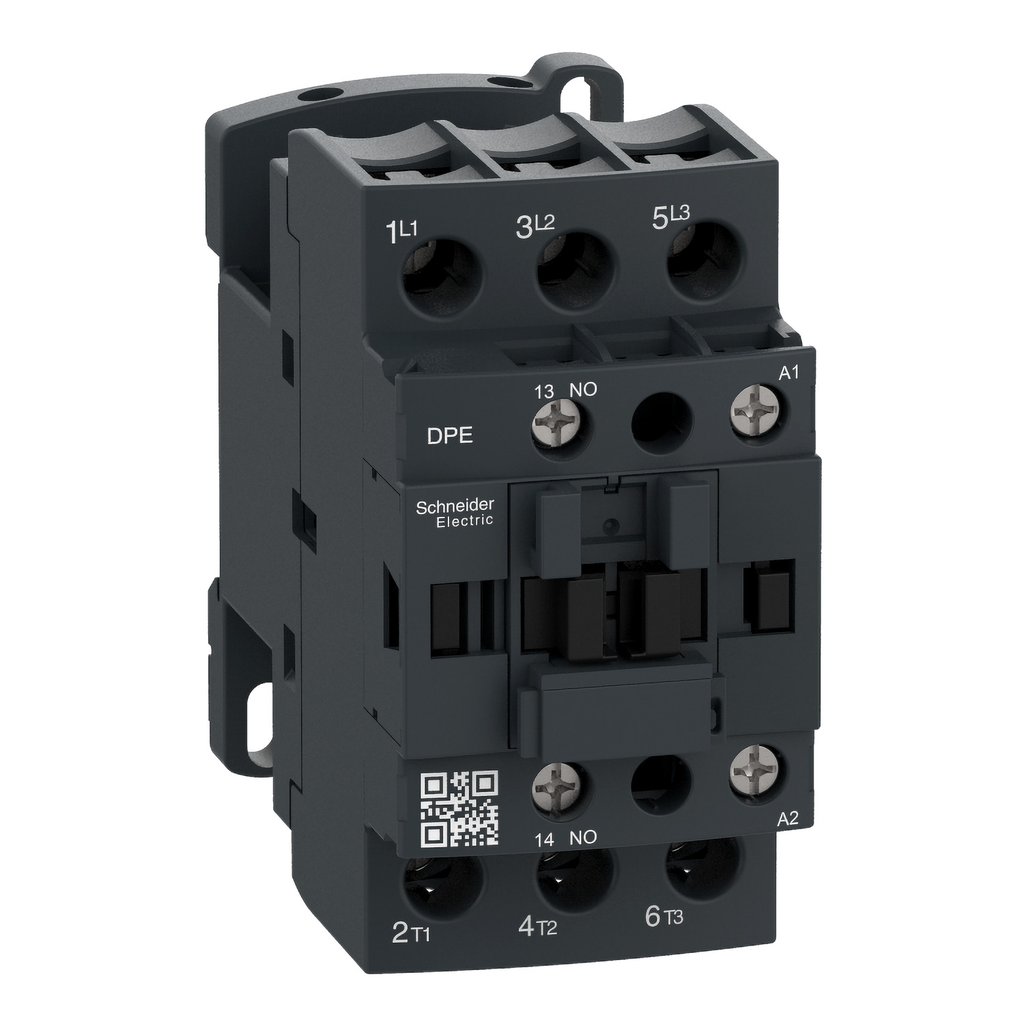

IEC contactor,Easy TeSys DPE,nonreversing,38A,3P,20HP at 480V AC,120V 50/60Hz coil

IEC CNTR, 20HP 480V, 120VAC CO

SQDDPE38G7 DPE38G7 3606481063267
70.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-IEC contactor,Easy TeSys DPE,nonreversing,38A,3P,20HP at 480V AC,120V 50/60Hz coil-2
  • Country of Origin: Indonesia
Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 38A/690V AC-3 (20 HP@480V). It provides a 120V AC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (UL, CSA,CE,CCC), Environmental compliant (RoHS/REACh).
QTY
  • Product Description
  • Features
  • Specifications
Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 38A/690V AC-3 (20 HP@480V). It provides a 120V AC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (UL, CSA,CE,CCC), Environmental compliant (RoHS/REACh).
  • Insulation Resistance
    • > 10 MOhm for signalling circuit
  • Heat Dissipation
    • 2-3 W 50/60 Hz
  • Inrush Power In VA
    • 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
    • 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
  • Connections Terminals
    • power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
    • power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
    • power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
    • power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
    • power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
    • power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
    • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
    • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
    • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
    • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
    • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
    • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
  • IE Rated Operational Current
    • 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    • 52 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • ITH Conventional Free Air Thermal Current
    • 10 A (at 60 °C) for signalling circuit
    • 50 A (at 60 °C) for power circuit
  • IP Degree Of Protection
    • IP20 front face IEC 60529
  • Power Dissipation Per Pole
    • 2 W AC-3
    • 5 W AC-1
  • Maximum Operating Rate
    • 3600 cyc/h 60 °C
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.02800187398370036
    • 0 kg CO2 eq.
  • Non Overlap Time
    • 1.5 ms on de-energisation between NC and NO contact
    • 1.5 ms on energisation between NC and NO contact
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.9 kg CO2 eq.
    • 0.9082164355791604
  • Operating Time
    • 12...22 ms closing
    • 4...19 ms opening
  • Control Circuit Type
    • AC 50/60 Hz
  • Minimum Switching Voltage
    • 17 V for signalling circuit
  • UC Control Circuit Voltage
    • 120 V AC 50/60 Hz
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 2.239971361958996
  • Protective Treatment
    • TH IEC 60068-2-30
  • UI Rated Insulation Voltage
    • power circuit 690 V IEC 60947-4-1
    • power circuit 600 V CSA
    • power circuit 600 V UL
    • signalling circuit 690 V IEC 60947-1
  • Average Impedance
    • 2 mOhm - Ith 50 A 50 Hz for power circuit
  • Electrical Durability
    • 1 Mcycles 38 A AC-3 <= 440 V
    • 0.6 Mcycles 52 A AC-1 <= 440 V
  • Maximum Horse Power Rating
    • 2 hp at 115 V AC 50/60 Hz for 1 phase motors
    • 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
    • 10 hp at 200/208 V AC 50/60 Hz for 3 phase motors
    • 10 hp at 230/240 V AC 50/60 Hz for 3 phase motors
    • 20 hp at 460/480 V AC 50/60 Hz for 3 phase motors
    • 25 hp at 575/600 V AC 50/60 Hz for 3 phase motors
  • Market Segmentation
    • Residential
    • Commercial
    • Industrial
  • Persona Type Names
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
  • Fire Resistance
    • 850 °C IEC 60695-2-1
  • Contactor Application
    • resistive load
    • motor control
  • Motor Power KW
    • 9 kW 220...230 V AC 50/60 Hz
    • 18.5 kW 380...400 V AC 50/60 Hz
    • 18.5 kW 415 V AC 50/60 Hz
    • 18.5 kW 440 V AC 50/60 Hz
    • 18.5 kW 500 V AC 50/60 Hz
    • 18.5 kW 660...690 V AC 50/60 Hz
  • Flame Retardance
    • V1 conforming to UL 94
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 26 kg CO2 eq.
    • 26.337997000091228
  • Persona Type Ids
    • OM
    • OM8
    • PB
    • SC
  • Safety Reliability Level
    • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
    • B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Carbon Footprint Of The Distribution Phase A4
    • 0.17403709638325782
    • 0.2 kg CO2 eq.
  • Tightening Torque
    • control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm
    • control circuit 1.7 N.m screw clamp terminals Philips No 2
    • power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm
    • power circuit 2.5 N.m screw clamp terminals Philips No 2
  • Mechanical Robustness
    • vibrations contactor open 2 Gn, 5...300 Hz)
    • vibrations contactor closed 4 Gn, 5...300 Hz)
    • shocks contactor open 10 Gn for 11 ms)
    • shocks contactor closed 15 Gn for 11 ms)
  • Minimum Switching Current
    • 5 mA for signalling circuit
  • Control Circuit Voltage Limits
    • drop-out: 0.3...0.6 Uc at 50/60 Hz (at <70 °C)
    • operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
    • operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
    • operational: 1...1.1 Uc at 50/60 Hz (at <70 °C)
  • Market Segmentation Id
    • RESIDENTIAL
    • COMMERCIAL
    • INDUSTRIAL
  • IRMS Rated Making Capacity
    • 140 A AC for signalling circuit conforming to IEC 60947-5-1
    • 250 A DC for signalling circuit conforming to IEC 60947-5-1
    • 550 A at 440 V for power circuit conforming to IEC 60947
  • Associated Fuse Rating
    • 10 A gG for signalling circuit conforming to IEC 60947-5-1
    • 63 A gG at <= 690 V coordination type 1 for power circuit
    • 63 A gG at <= 690 V coordination type 2 for power circuit
  • Hold In Power Consumption In VA
    • 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
    • 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
  • UE Rated Operational Voltage
    • power circuit <= 690 V AC 25...400 Hz
    • power circuit <= 300 V DC
  • Rated Breaking Capacity
    • 550 A at 440 V for power circuit conforming to IEC 60947
  • UIMP Rated Impulse Withstand Voltage
    • 6 kV IEC 60947
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=DPE32-38-AC-CAD&p_File_name=DPE32-38 AC.stp
  • Complementary Attributes
    • Maximum Motor Phase Current : 38 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-12
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 2.239971361958996
    • Distribution Carbon Footprint : 0.17403709638325782
    • Installation Carbon Footprint : 0.02800187398370036
    • Use Carbon Footprint : 26.337997000091228
    • End Of Life Carbon Footprint : 0.9082164355791604
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1501004
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2538
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Coil Technology : without built-in suppressor module
    • Device Short Name : DPE
    • Package Weight Lbs : 0.41 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range : Easy TeSys
    • Returnability : Yes
    • Signalling Circuit Frequency : 25...400 Hz
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 30 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 29.68822376799634
    • Relationship Type : Compatible relationship
    • Auxiliaries : DPEAN11
    • Pep Code : ENVPEP1501004
    • Pep Verification Date : 2025-08-05
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 375
    • Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 394.2
    • Recyclability Potential In : 66
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : France, FR
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; France, FR
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; France, FR
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; France, FR
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.17426351868467013
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.017946188320229955
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.000756264160065624
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.00008465852950737005
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.1524601591699393
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0030162485049278864
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.010343350231317794
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.1219479192316731
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.043736715113051
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0013947534757508772
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.06787221145539668
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.008944239187474548
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.01221795931837749
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 29.566266887454873
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 2.196225875225614
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.17403709638325782
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.026607120507949486
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 26.270124788635833
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.8992720067022185
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.8252963549049472
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 29.68822376799634
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 2.239971361958996
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.17403709638325782
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.02800187398370036
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 26.337997000091228
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.9082164355791604
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.8375143142233247
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0009279356134563561
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0009081157748908579
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000000149596717
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000071317829962
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00001246193737974783
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000735717304777908
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00026634221234252543
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 5151.079689537159
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 51.24345817414994
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.1654454013609126
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.28910618453013076
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 5057.615272379564
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 39.76640739755419
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -17.87921269999661
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 936.3077038338984
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 724.9391482205494
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.7137419002934525
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.32196350817266356
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 186.0083131991307
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 24.324537005752084
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -16.422337535019636
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000646103524728079
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000053586971814574
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000205273500678
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000051022905807
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000590567047349606
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000001693209157414
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.000000422524778687
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.004790893190022293
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.002155021241334016
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.00048096802528567776
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.0021549039234025993
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.001550269575642362
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00006595401765277228
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000002037856829266
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000051713512140021
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0012526407866012045
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0002311372576986924
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000170059371217941
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 26.166653436584475
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 26.16573377111918
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0001441893042746468
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0007320538996733837
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00004342226134446241
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -21.614044676802617
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000385901593238722
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000038510099294365
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000245547939
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000331268880132
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000440727395276
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000028358471723
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000320246635211611
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000046987456439449
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000025001418706274
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000045965950487
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000011663746107
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000019024625194529
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000002903782842053
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000012206866710808
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 1.7696871661712714
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.13963847989822403
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0.00008036772909120108
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.8396016019282297
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.7903667166157264
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.0002825302428975187
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 696.3097993203883
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 13.473131777192563
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00038585560886554343
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0044873679657644015
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 682.7105858516201
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.12120846800093099
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -10.135401238765276
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.023550936385877443
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0015930240136877575
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0003475340836233086
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00003642685260313559
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.020981928509051267
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0005920229269119758
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000548053857422443
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.26220614278789456
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0326194290333079
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.22958671375458664
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.08041483606932415
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.02573931597565894
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0002055768920927672
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000498563876546323
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.044414925070186455
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.010005161743731351
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.013598255067909465
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 4.311301490464364
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.639917842386296
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00017713472212697585
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.009723331835087513
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.5325484315613274
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.12893474995952542
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.6056134903675204
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000082535924013452
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000027921852103428
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000015357916391412
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000037632212037
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000038749475886566
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000469047420008
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000013452563313661
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.07182231396082223
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0063282958247783995
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0012347989067667882
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00005784567381857833
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.06214022473124638
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.002061148824212083
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.002452249963877455
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0026661108121489633
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0015592985274970545
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00003460146793046907
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000151128524446205
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0010639087369723656
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000679079450461248
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0002827460603312492
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.3291429233186301
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.01674030645650438
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0037658874957658267
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0002543221384886248
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.3015948596172056
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.006787547610665617
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00624125989377561
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.4344150195141627
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.4344150195141627
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 5620.073217384379
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 52.42625585574704
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.1654595586915995
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.3272672304709942
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 5525.20300943836
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 39.95122530111022
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -18.474970331511077
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 468.99352784722106
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.1827976815970973
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000141573306869575
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.03816104594086357
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 467.58773705879634
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.18481790355603975
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.5957576315144633
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.4344150195141627
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.4344150195141627
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5147.645274517645
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 47.80904315463578
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.1654454013609126
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.28910618453013076
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 5057.615272379564
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 39.76640739755419
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -17.87921269999661
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.8377625026419339
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8377625026419339
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.4079269230769231
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 468.1557653445791
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.345035178955164
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000141573306869575
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.03816104594086357
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 467.58773705879634
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.18481790355603975
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.18783070843754016
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 3.449336833995952
    • Water Use M3 Eq Manufacturing A1 A3 : 1.1010259735364774
    • Water Use M3 Eq Distribution A4 : 0.008829527515384353
    • Water Use M3 Eq Installation A5 : 0.0021406650287314945
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 1.9076210317645084
    • Water Use M3 Eq End Of Life C1 C4 : 0.4297196361508504
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.5840136244669099
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : contactor
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=526122545&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 29.68822376799634
    • Circularity Profile : ENVEOLI1501004
    • Environmental Disclosure : ENVPEP1501004
    • EU ROHS Directive : Compliant
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1501004
    • Pep Verification Date : 2025-08-05
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : Indonesia
