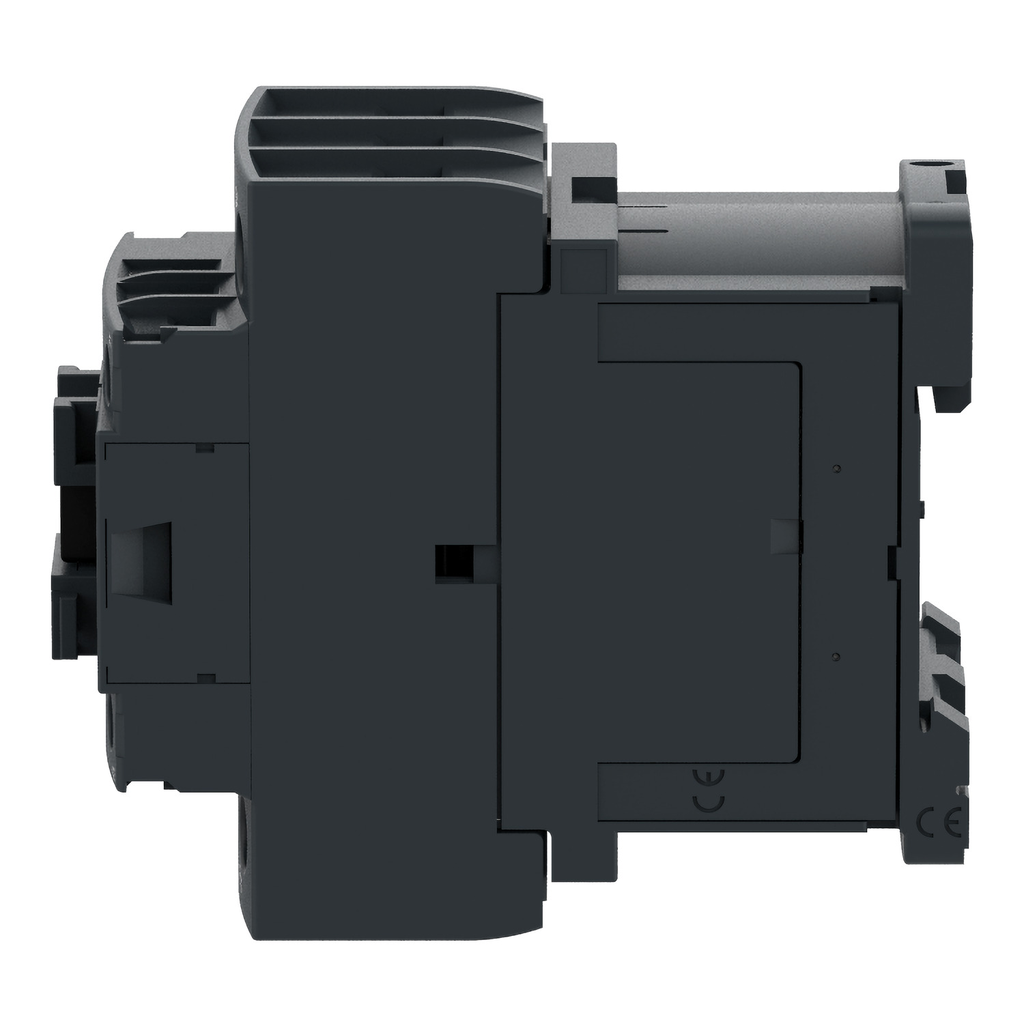

IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil

IEC CNTR, 15HP 480V, 24VDC COI

SQDDPE32BL DPE32BL 3606481064295
67.55 / EA
http://schema.org/OutOfStock
Mayer-DDS-IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil-2
  • Certifications: CSA, UL
  • Contact Configuration: 1 NO, 3 NO
  • Depth: 92 mm
  • Height: 85 mm
  • Impedance: 2 MOhm - Ith 40 A 50 Hz For Power Circuit
  • Net Weight: 0.37 kg
  • Standard: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1
  • Storage Temperature: -60-80 °C
  • Width: 45 mm
QTY
  • Product Description
  • Specifications
Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15 HP@480V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temperature For Operation : -40-60 °C
    • Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1
    • Pollution Degree : 3
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947
    • Ambient Air Temperature For Storage : -60-80 °C
    • Ip Degree Of Protection : IP20 front face IEC 60529
    • Mechanical Robustness : vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Fire Resistance : 850 °C IEC 60695-2-1
    • Overvoltage Category : III
    • [Ui] Rated Insulation Voltage : power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1
  • Complementary
    • Non-Overlap Time : 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
    • Minimum Switching Current : 5 mA for signalling circuit
    • [Ue] Rated Operational Voltage : power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
    • Height : 85 mm
    • Power Dissipation Per Pole : 3.2 W AC-1 || 1.25 W AC-3
    • Average Impedance : 2 mOhm - Ith 40 A 50 Hz for power circuit
    • Control Circuit Voltage Limits : drop-out: 0.1...0.3 Uc (at <70 °C) || operational: 0.8...1.25 Uc (at <60 °C) || operational: 1...1.25 Uc (at <70 °C)
    • [Ith] Conventional Free Air Thermal Current : 10 A (at 60 °C) for signalling circuit || 50 A (at 60 °C) for power circuit
    • Mounting Support : rail || plate
    • Control Circuit Type : DC
    • Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
    • Hold-In Power Consumption In W : 2.4-2.4 W 20 °C
    • Insulation Resistance : > 10 MOhm for signalling circuit
    • Rated Breaking Capacity : 450 A at 440 V for power circuit conforming to IEC 60947
    • Irms Rated Making Capacity : 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
    • Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit
    • Net Weight : 0.37 kg
    • Connections - Terminals : power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
    • Coil Technology : without built-in suppressor module
    • Minimum Switching Voltage : 17 V for signalling circuit
    • Maximum Operating Rate : 3600 cyc/h 60 °C
    • Signalling Circuit Frequency : 25...400 Hz
    • Tightening Torque : power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2
    • Electrical Durability : 1 Mcycles 32 A AC-3 <= 440 V || 0.6 Mcycles 40 A AC-1 <= 440 V
    • Mechanical Durability : 10 Mcycles
    • Inrush Power In W : 2.4-2.4 W 20 °C)
    • Auxiliary Contacts Type : mechanically linked 1 NO IEC 60947-5-1
    • Operating Time : 65.45...88.55 ms closing || 20...30 ms opening
    • Width : 45 mm
    • Depth : 92 mm
    • Heat Dissipation : 2-3 W 50/60 Hz
  • Specifications
    • [Uc] Control Circuit Voltage : 24 V DC
    • Auxiliary Contact Composition : 1 NO
    • Contactor Application : resistive load || motor control
    • Product Or Component Type : contactor
    • Product Name : Easy TeSys DPE
    • Range : Easy TeSys
    • Pole Contact Composition : 3 NO
    • Utilisation Category : AC-4 || AC-1 || AC-3
    • [Ie] Rated Operational Current : 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    • Poles Description : 3P
    • Maximum Horse Power Rating : 2 hp at 115 V AC 50/60 Hz for 1 phase motors || 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors
    • Motor Power Kw : 7.5 kW 220...230 V AC 50/60 Hz || 15 kW 380...400 V AC 50/60 Hz || 15 kW 415 V AC 50/60 Hz || 15 kW 440 V AC 50/60 Hz || 18.5 kW 500 V AC 50/60 Hz || 18.5 kW 660...690 V AC 50/60 Hz
    • Device Short Name : DPE
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110230EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI1102030EN
    • Eu Rohs Directive : Compliant with Exemptions
