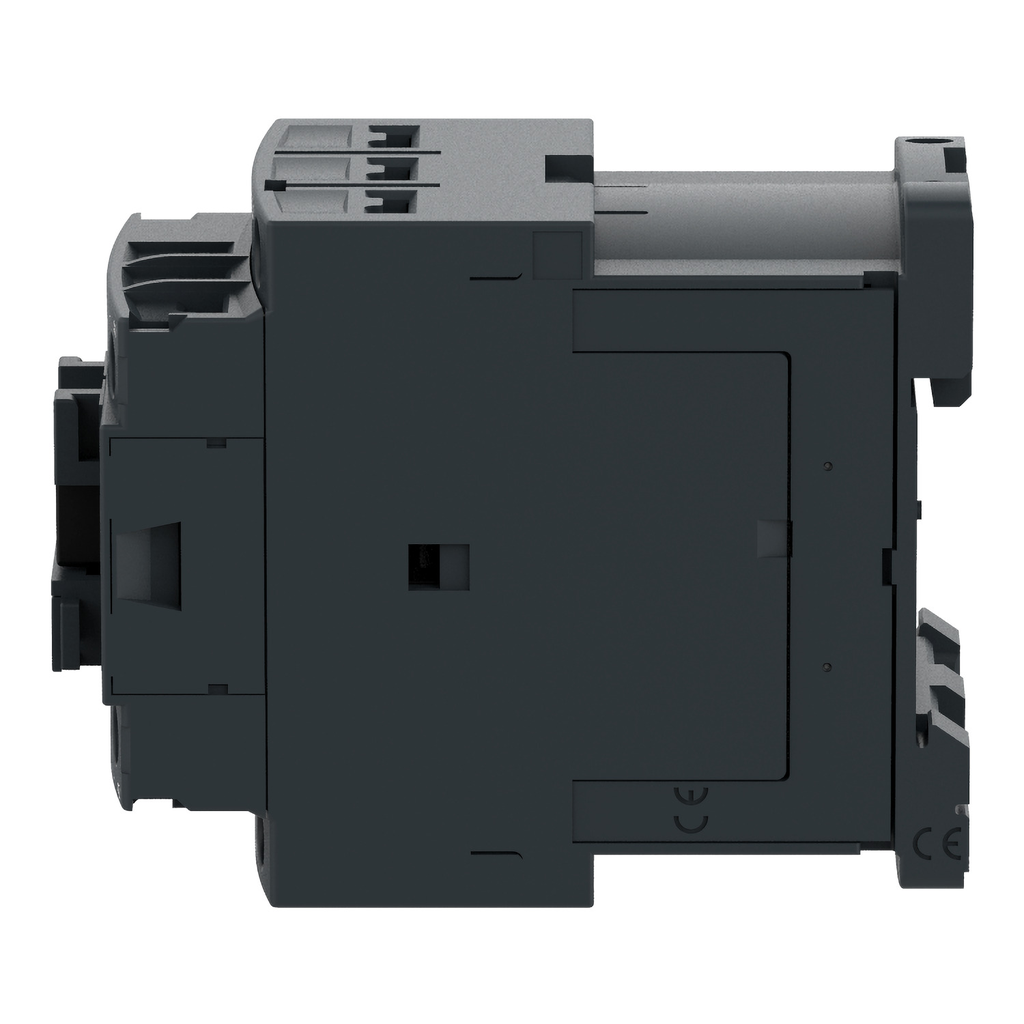

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3 (7.5 HP@480V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP110230EN
• Sustainable Offer Status : Green Premium product
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile : ENVEOLI1102030EN
• Eu Rohs Directive : Compliant with Exemptions
• Environment
• Product Certifications : UL || CSA
• Ambient Air Temperature For Operation : -40-60 °C
• Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1
• Pollution Degree : 3
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947
• Ambient Air Temperature For Storage : -60-80 °C
• Ip Degree Of Protection : IP20 front face IEC 60529
• Mechanical Robustness : vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Fire Resistance : 850 °C IEC 60695-2-1
• Overvoltage Category : III
• [Ui] Rated Insulation Voltage : power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1
• Complementary
• Non-Overlap Time : 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Minimum Switching Current : 5 mA for signalling circuit
• [Ue] Rated Operational Voltage : power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
• Height : 77 mm
• Power Dissipation Per Pole : 0.36 W AC-3 || 1.56 W AC-1
• Average Impedance : 2.5 mOhm - Ith 25 A 50 Hz for power circuit
• Control Circuit Voltage Limits : drop-out: 0.1...0.3 Uc (at <70 °C) || operational: 0.8...1.25 Uc (at <60 °C) || operational: 1...1.25 Uc (at <70 °C)
• [Ith] Conventional Free Air Thermal Current : 10 A (at 60 °C) for signalling circuit || 25 A (at 60 °C) for power circuit
• Mounting Support : rail || plate
• Control Circuit Type : DC
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Hold-In Power Consumption In W : 2.4-2.4 W 20 °C
• Insulation Resistance : > 10 MOhm for signalling circuit
• Rated Breaking Capacity : 250 A at 440 V for power circuit conforming to IEC 60947
• Irms Rated Making Capacity : 250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1
• Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 40 A gG at <= 690 V coordination type 1 for power circuit || 25 A gG at <= 690 V coordination type 2 for power circuit
• Net Weight : 0.325 kg
• Connections - Terminals : power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
• Coil Technology : without built-in suppressor module
• Minimum Switching Voltage : 17 V for signalling circuit
• Maximum Operating Rate : 3600 cyc/h 60 °C
• Signalling Circuit Frequency : 25...400 Hz
• Tightening Torque : power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2
• Electrical Durability : 1 Mcycles 18 A AC-3 <= 440 V || 0.6 Mcycles 25 A AC-1 <= 440 V
• Mechanical Durability : 10 Mcycles
• Inrush Power In W : 2.4-2.4 W 20 °C)
• Auxiliary Contacts Type : mechanically linked 1 NO IEC 60947-5-1
• Operating Time : 65.45...88.55 ms closing || 20...30 ms opening
• Width : 45 mm
• Depth : 86 mm
• Heat Dissipation : 2-3 W 50/60 Hz
• Specifications
• [Uc] Control Circuit Voltage : 24 V DC
• Auxiliary Contact Composition : 1 NO
• Contactor Application : resistive load || motor control
• Product Or Component Type : contactor
• Product Name : Easy TeSys DPE
• Range : Easy TeSys
• Pole Contact Composition : 3 NO
• Utilisation Category : AC-4 || AC-1 || AC-3
• [Ie] Rated Operational Current : 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• Poles Description : 3P
• Maximum Horse Power Rating : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors || 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 3 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 3 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 7.5 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 10 hp at 575/600 V AC 50/60 Hz for 3 phase motors
• Motor Power Kw : 4 kW 220...230 V AC 50/60 Hz || 7.5 kW 380...400 V AC 50/60 Hz || 9 kW 415 V AC 50/60 Hz || 9 kW 440 V AC 50/60 Hz || 10 kW 500 V AC 50/60 Hz || 10 kW 660...690 V AC 50/60 Hz
• Device Short Name : DPE
