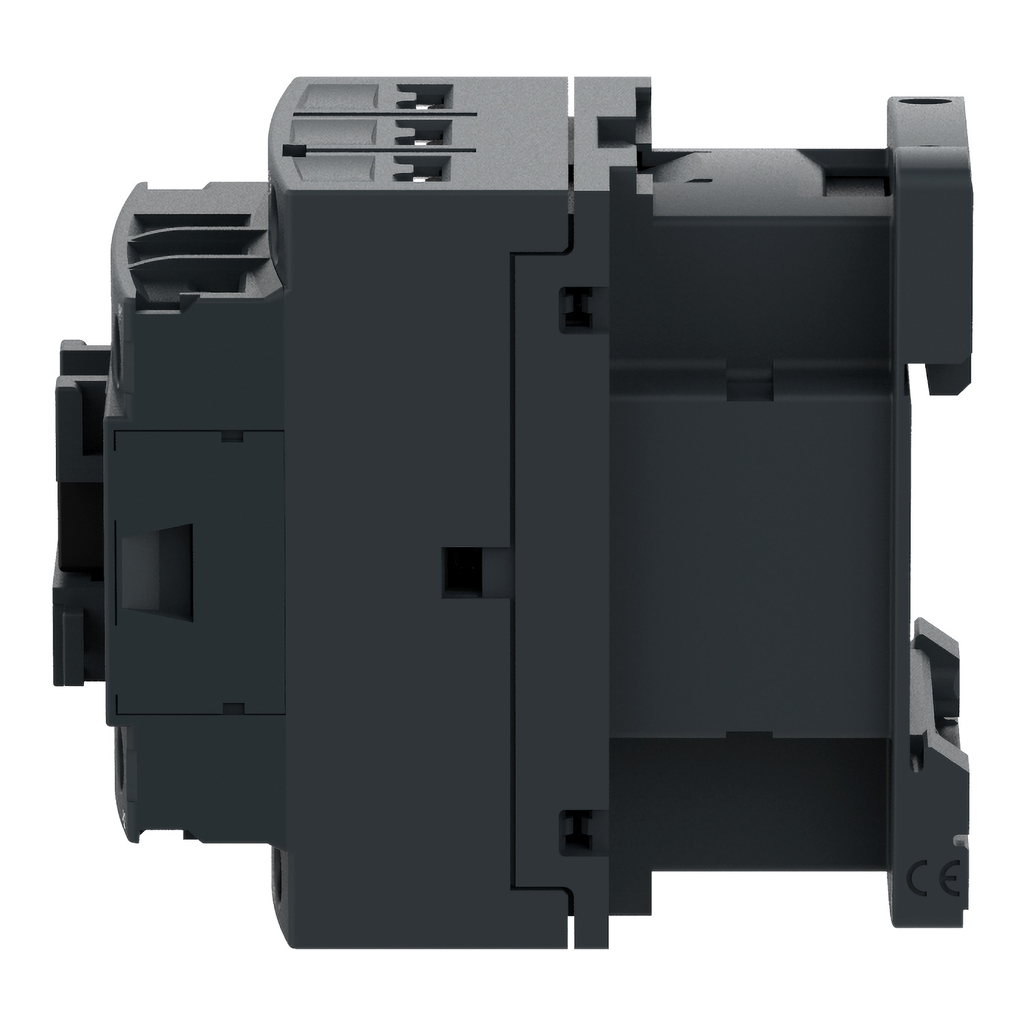

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5 HP@480V). It provides a 240V AC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or scre

• Uc Control Circuit Voltage
• 240 V AC 50/60 Hz
• Insulation Resistance
• > 10 MOhm for signalling circuit
• Heat Dissipation
• 2-3 W 50/60 Hz
• Connections Terminals
• power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
• power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: fl
• Mounting Support
• rail
• plate
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947
• Power Dissipation Per Pole
• 1.56 W AC-1
• 0.2 W AC-3
• Maximum Operating Rate
• 3600 cyc/h 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.023894932466090976
• 0 kg CO2 eq.
• Non Overlap Time
• 1.5 ms on de-energisation between NC and NO contact
• 1.5 ms on energisation between NC and NO contact
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.8 kg CO2 eq.
• 0.7750113583608836
• Standards
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• Ue Rated Operational Voltage
• power circuit <= 690 V AC 25...400 Hz
• power circuit <= 300 V DC
• Ui Rated Insulation Voltage
• power circuit 690 V IEC 60947-4-1
• power circuit 600 V CSA
• power circuit 600 V UL
• signalling
• Operating Time
• 12...22 ms closing
• 4...19 ms opening
• Control Circuit Type
• AC 50/60 Hz
• Ip Degree Of Protection
• IP20 front face IEC 60529
• Minimum Switching Voltage
• 17 V for signalling circuit
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 1.9114422288716764
• Protective Treatment
• TH IEC 60068-2-30
• Average Impedance
• 2.5 mOhm - Ith 25 A 50 Hz for power circuit
• Electrical Durability
• 0.6 Mcycles 25 A AC-1 <= 440 V
• 1 Mcycles 12 A AC-3 <= 440 V
• Maximum Horse Power Rating
• 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
• 1 hp at 230/24
• Market Segmentation
• Residential
• Commercial
• Industrial
• Persona Type Names
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• Fire Resistance
• 850 °C IEC 60695-2-1
• Contactor Application
• resistive load
• motor control
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 18 kg CO2 eq.
• 18.43659790006386
• Persona Type Ids
• OM
• OM8
• PB
• SC
• Safety Reliability Level
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13
• Carbon Footprint Of The Distribution Phase A4
• 0.14851165558038001
• 0.1 kg CO2 eq.
• Tightening Torque
• power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm
• power circuit 1.7 N.m screw cl
• Ith Conventional Free Air Thermal Current
• 10 A (at 60 °C) for signalling circuit
• 25 A (at 60 °C) for power circuit
• Irms Rated Making Capacity
• 250 A at 440 V for power circuit conforming to IEC 60947
• 140 A AC for signalling ci
• Mechanical Robustness
• vibrations contactor open 2 Gn, 5...300 Hz)
• vibrations contactor closed 4 Gn, 5...300 Hz)
• vibrations contactor closed 4
• Minimum Switching Current
• 5 mA for signalling circuit
• Motor Power Kw
• 3 kW 220...230 V AC 50/60 Hz
• 5.5 kW 380...400 V AC 50/60 Hz
• 5.5 kW 415 V A
• Control Circuit Voltage Limits
• drop-out: 0.3...0.6 Uc at 50/60 Hz (at <70 °C)
• operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
• operational: 0.8...
• Utilisation Category
• AC-4
• AC-1
• AC-3
• Ie Rated Operational Current
• 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• 12 A (at <60 °C) at <= 440 V AC AC
• Hold In Power Consumption In Va
• 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
• 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
• 7-7 VA 50 Hz cos phi 0
• Market Segmentation Id
• RESIDENTIAL
• COMMERCIAL
• INDUSTRIAL
• Inrush Power In Va
• 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
• 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
• 70-70 VA 50 Hz cos p
• Associated Fuse Rating
• 10 A gG for signalling circuit conforming to IEC 60947-5-1
• 25 A gG at <= 690
• Rated Breaking Capacity
• 250 A at 440 V for power circuit conforming to IEC 60947
• Product Certifications
• UL
• CSA
• CCC
• CE

• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-19
• ETIM 10 : EC000066
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 1.91144222887168
• Distribution Carbon Footprint : 0.14851165558038
• Installation Carbon Footprint : 2.3894932466091e-02
• Use Carbon Footprint : 18.4365979000639
• End Of Life Carbon Footprint : 0.775011358360884
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1501004
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2538
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Coil Technology : without built-in suppressor module
• Device Short Name : DPE
• Mechanical Durability : 10 Mcycles
• Overvoltage Category : III
• Package Weight Lbs : 0.35 kg
• Pole Contact Composition : 3 NO
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range : Easy TeSys
• Returnability : Yes
• Signalling Circuit Frequency : 25...400 Hz
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 21 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 21.295458075342893
• Relationshiptype : Compatible relationship
• Auxiliaries : DPEAN11
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=526122533&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 21.2954580753429
• Ambient Air Temperature For Operation : -40-60 °C
• Ambient Air Temperature For Storage : -60-80 °C
• Circularity Profile : ENVEOLI1501004
• Environmental Disclosure : ENVPEP1501004
• Eu Rohs Directive : Compliant
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Indonesia
• Height : 3.03 in
• Width : 1.77 in
• Depth : 3.39 in
• General Attributes
• Product Or Component Type : contactor
