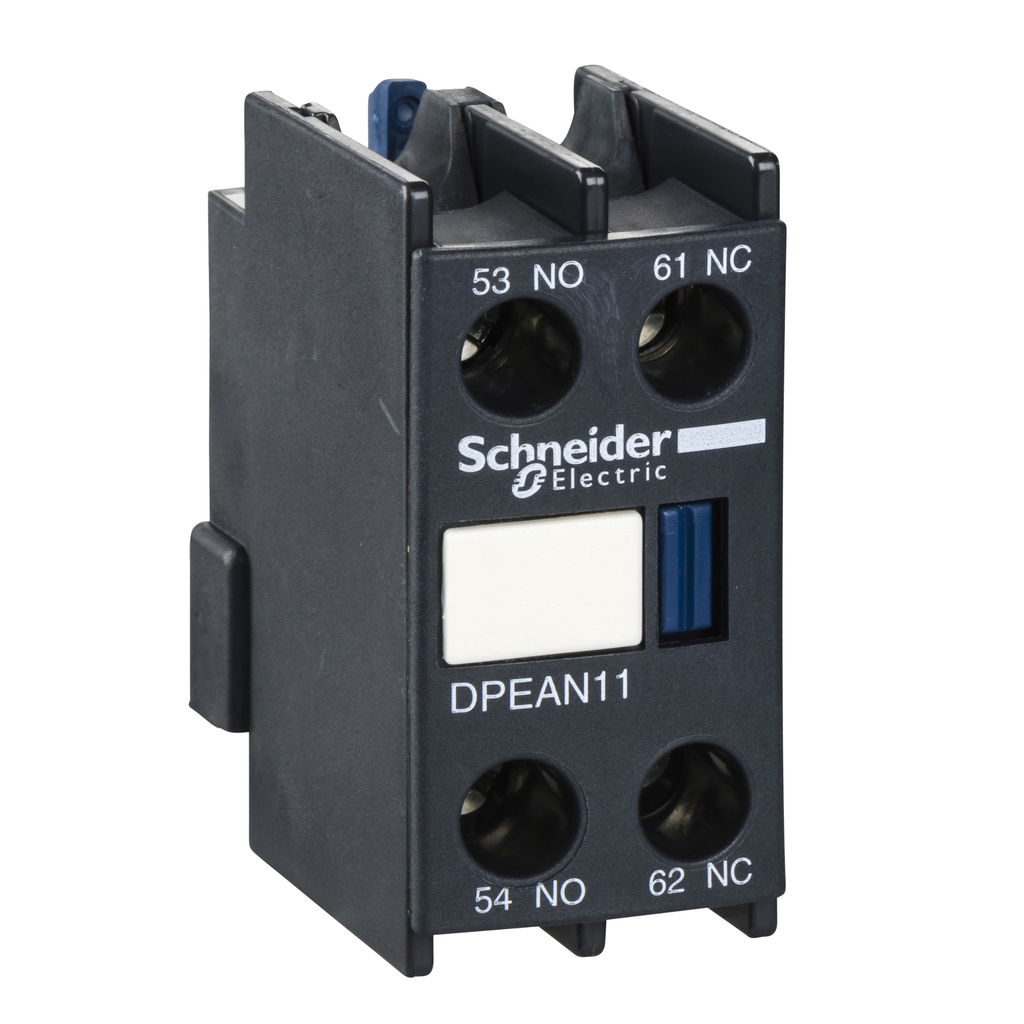

Easy TeSys DPE, Auxiliary contact block, 1 NO + 1 NC

AUXILIARY CONTACT BLOCK, 1 NO

SQDDPEAN11 3606485332581
9.16 / EA
http://schema.org/OutOfStock
Easy TeSys DPE auxiliary contact block. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the overload relays , connection by screw clamp terminals. Multi standards certified (CSA, UL), Green Premium compliant (RoHS/REACh).
QTY
  • Product Description
  • Specifications
Easy TeSys DPE auxiliary contact block. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the overload relays , connection by screw clamp terminals. Multi standards certified (CSA, UL), Green Premium compliant (RoHS/REACh).
  • Specifications
    • Permissible Short-Time Rating : 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
    • Auxiliary Contact Composition : 1 NO + 1 NC
    • [Ith] Conventional Free Air Thermal Current : 10 A 60 °C
    • [Ue] Rated Operational Voltage : 690 V AC 25...400 Hz
    • Range Compatibility : Easy TeSys DPE contactor
    • Product Or Component Type : auxiliary contact block
    • Irms Rated Making Capacity : 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
    • Range : Easy TeSys
    • [Ui] Rated Insulation Voltage : 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
    • Auxiliary Contacts Operation : instantaneous
    • Device Short Name : DPEAN
  • Complementary
    • Non-Overlap Time : 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
    • Minimum Switching Current : 5 mA
    • Insulation Resistance : > 10 MOhm
    • Associated Fuse Rating : 10 A gG
    • Connections - Terminals : screw clamp terminals1 1-2.5 mm² - rigid || screw clamp terminals2 1-2.5 mm² - rigid || screw clamp terminals1 1-2.5 mm² - flexible with or without cable end || screw clamp terminals2 1-2.5 mm² - flexible with or without cable end || screw clamp terminals AWG 10...AWG 18)
    • Mounting Location : front
    • Minimum Switching Voltage : 17 V
    • Tightening Torque : 1.2 N.m Philips No 2 || 1.2 N.m flat Ø 6 mm
    • Mechanical Durability : 30 Mcycles
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110807EN_V2
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Eu Rohs Directive : Compliant
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temperature For Operation : -5-60 °C
    • Standards : IEC 60947-5-1 || EN 60947-5-1 || UL 60947-5-1
    • Ip Degree Of Protection : IP20 conforming to VDE 0106
    • Ambient Air Temperature For Storage : -60-80 °C
    • Environmental Characteristic : normal environment
    • Protective Treatment : TH IEC 60068
    • Operating Altitude : 9842.52 ft (3000 m)
    • Permissible Ambient Air Temperature Around The Device : -40-70 °C at Uc
