Certifications:
UL
-
Depth:
13.69 in
-
Enclosure Material:
Steel
-
Height:
65.30 in
-
Material:
Aluminium: Busbar
-
Mounting Type:
Surface
-
Number of Phases:
1
-
Warranty Length:
18 mth
-
Width:
23.69 in

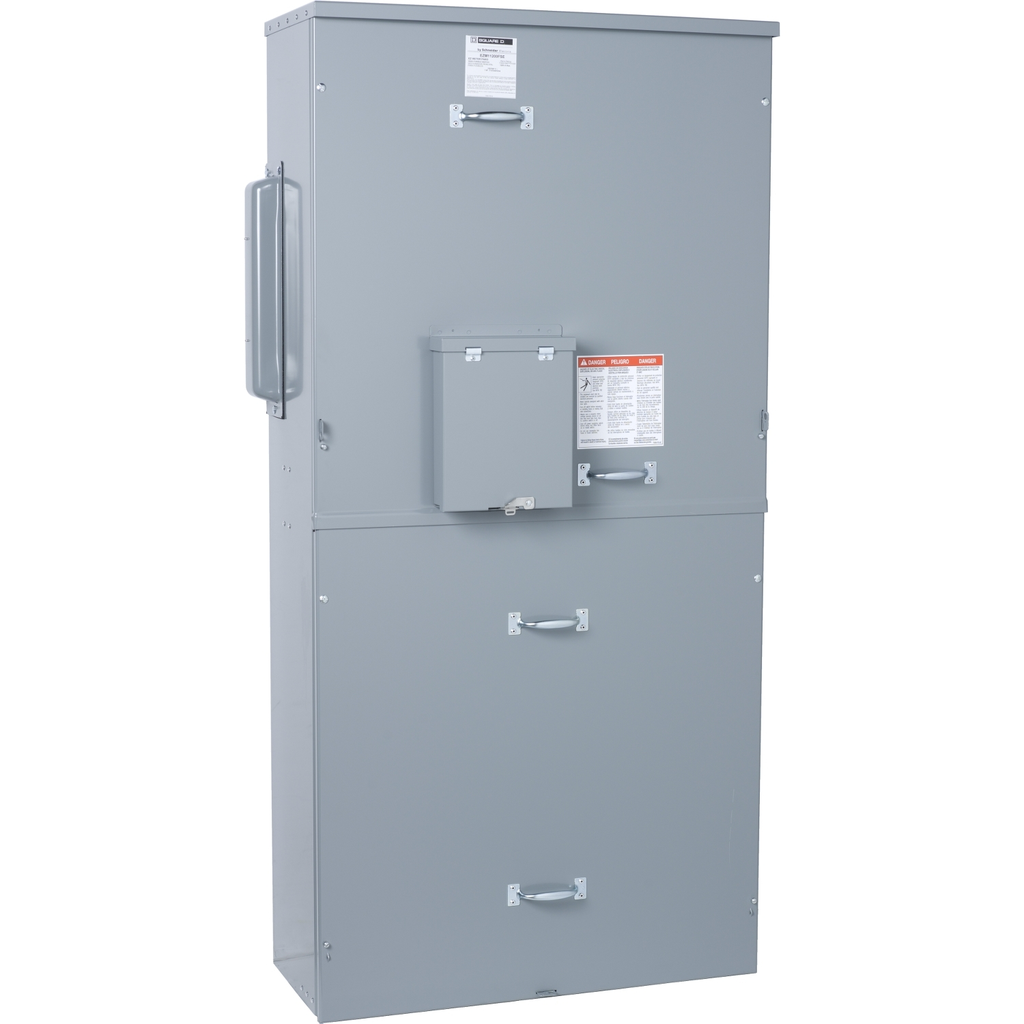

Square D EZ Meter-Pak main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. EZM main fusible switches provide a main disconnect point suitable for service equipment. This fusible switch supplies one phase in, one phase out with a three wire configuration. It is rated for 120/240VAC and 1200A. The compartment accepts Class T 300VAC fuses (order separately). The compartment has three horizontal 1200A rated busbars. The busbars come with Visi-Tite joint nuts for connections, eliminating the need for torque readings. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
