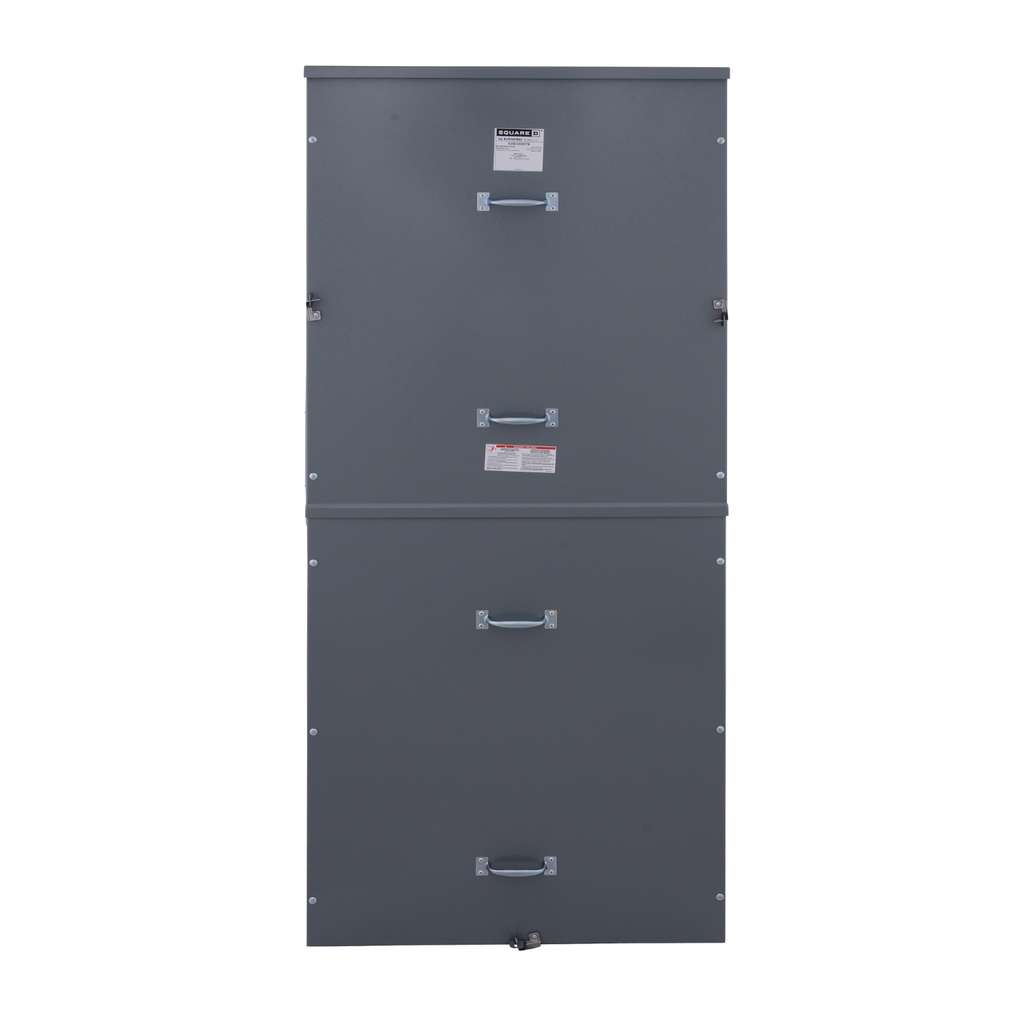

Main lugs unit, EZ Meter-Pak, 2000A, 240VAC max, 3ph/4W, 1200A bus, OH/UG, Type 3R

MTR EZM TERMINAL BOX 2000A OH/

SQDEZM32000TB EZM32000TB 785901684206
5386.22 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Main lugs unit, EZ Meter-Pak, 2000A, 240VAC max, 3ph/4W, 1200A bus, OH/UG, Type 3R-1
  • Depth: 21.46 in
  • Enclosure Material: Painted Steel
  • Warranty Length: 18 mth
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 2000A with the busbar rated for 1200A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.
QTY
  • Product Description
  • Features
  • Specifications
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 2000A with the busbar rated for 1200A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Ue Rated Operational Voltage : 208Y/120 V AC, 240/120 V delta AC
    • Bus Rated Current : 1200 A
    • Main Rated Current : 2000 A
  • Important Information Attributes
    • Electrical Connection : lugs 1 AWG 6...300 kcmil aluminium/copper) ground, studs 6 line, studs 6 neutral
    • Phase : 3 phase in, 3 phase out
    • Product Or Component Type : meter center main unit
    • Provided Equipment : closing plate
    • Service Feed Location : OH, UG
    • Carbon Footprint Of The Distribution Phase A4 : 19.8977508829, 20 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 16 kg CO2 eq., 15.9704413333
    • Carbon Footprint Of The Installation Phase A5 : 0.1513542493, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 647 kg CO2 eq., 647.1724486486
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 505 kg CO2 eq., 504.64
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Three-phase multi-tenant meter enclosure
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : No
    • Use Carbon Footprint : 504.64
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Persona Type Ids : LC
    • Persona Type Names : Contractor
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Enclosure Material : painted steel
    • Energy Efficiency Optimized : False
    • Main Type : Main Lugs
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Range Of Product : EZ meter-pak
    • Returnability : No
    • Software Version : EIME v5.8.1
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 188 kg CO2 eq.
    • Wiring Configuration : 4-wire
    • Warranty In Months : 18
    • X Main Type : Main Lugs
    • Pep Code : ENVPEP2005009EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring. control and protection devices in a single enclosure or a cabinet having the following dimensions 22.6 cm x 37.6 cm x147.3 cm.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Consumption On Product Lifetime, In Kwh : 728.832
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Mexico
    • Energy Model - Installation [A5] : Electricity mix; AC; consumption mix. at consumer; 120V; US
    • Energy Model - Use [B6] : Electricity mix; AC; consumption mix. at consumer; 120V; US
    • Energy Model - End Of Life [C1-c4] : Electricity mix; AC; consumption mix. at consumer; 120V; US
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 71.09 in
    • Width Nominal : 30.19 in
    • Certificate Agency : UL Listed
    • Air Pollution (M3) Operational Energy Use [B6] : 42855
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 6144.1
    • Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 504.64
    • Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 13.492
    • Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 77.159
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 6385.6
    • Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 6793.6
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 408
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 6385.6
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 408
    • Water Pollution (M3) Operational Energy Use [B6] : 24878
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Nema Degree Of Protection : NEMA 3R
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 1187.8319951141
    • Environmental Disclosure : ENVPEP2005009EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2005009EN
    • Pep Verification Date : 2020-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 3 phase in, 3 phase out
    • Product Or Component Type : meter center main unit
    • Provided Equipment : closing plate
    • Range Of Product : EZ meter-pak
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico, United States
    • Depth : 21.46 in
