SQUARE D

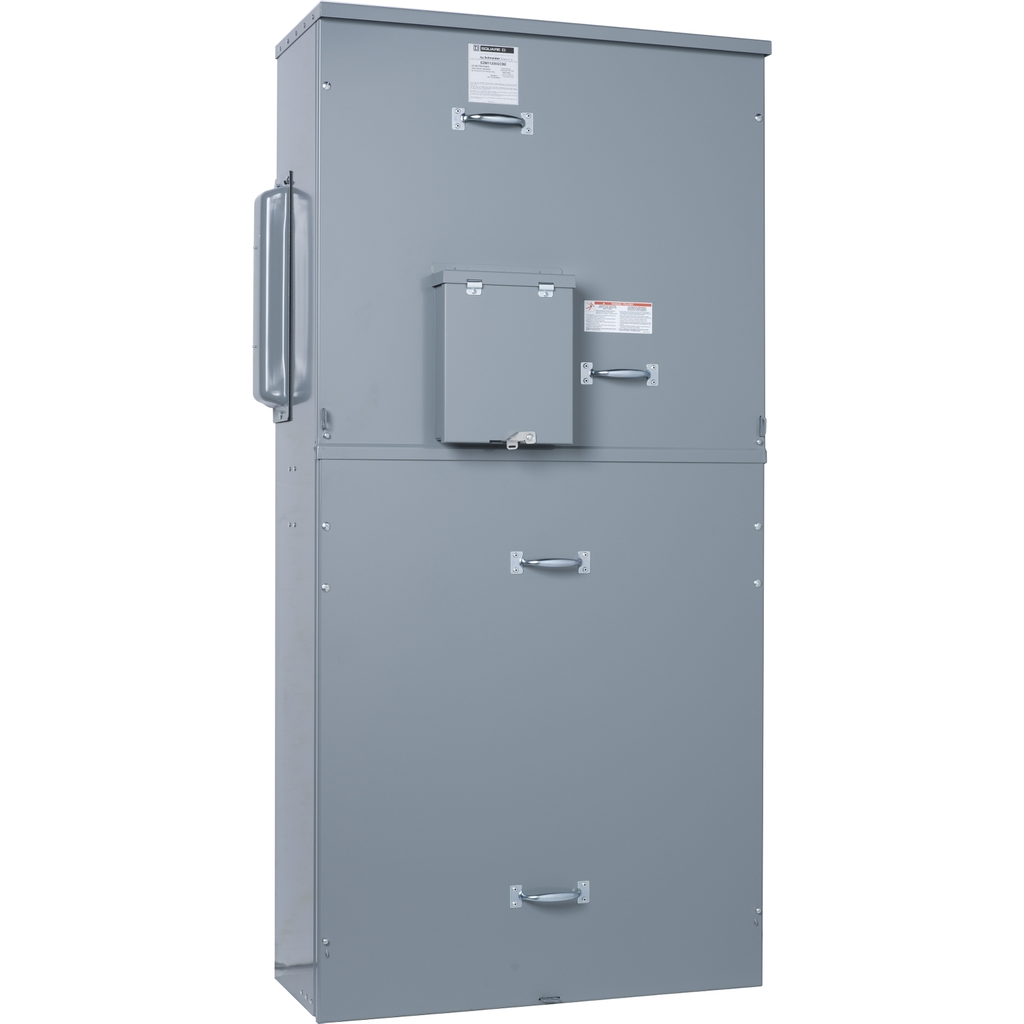

Main circuit breaker unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, 65kA, UG, Type 3R, EUSERC, ERMS

EZM MAIN 1PH CB 65K 1200A EUSE

SQDEZM11200GCBEMS EZM11200GCBEMS 785901470137
14059.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-Main circuit breaker unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, 65kA, UG, Type 3R, EUSERC, ERMS-1
  • Depth: 13.70 in
  • Enclosure Material: Painted Steel
  • Height: 66.26 in
  • Width: 32.40 in
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. With ERMS (energy reducing maintenance switch), it has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.
QTY
  • Product Description
  • Features
  • Specifications
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. With ERMS (energy reducing maintenance switch), it has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2011003
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1264.7307267203
  • Specifications
    • Country of Origin : Mexico
    • Width : 32.40 in
    • Height : 66.26 in
    • Range Of Product : EZ meter-pak
    • Main Type : Main Circuit Breaker
    • Provided Equipment : circuit-breaker 1 ) 2P 1200 A 65 kA main supply, ready assembled || closing plate
    • Product Or Component Type : meter center main unit
  • Complementary
    • Service Feed Location : UG
    • Height : 66.26 in
    • Phase : 1 phase in || 1 phase out
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Bus Rated Current : 1200 A
    • Main Rated Current : 1200 A
    • Electrical Connection : lugs 1 AWG 6...300 kcmil aluminium/copper) ground || studs 3 line || studs 3 neutral
    • Enclosure Material : painted steel
    • Wiring Configuration : 3-wire
    • Width : 32.40 in
    • Depth : 13.70 in
  • Environment
    • Product Certifications : UL Listed || EUSERC
    • Nema Degree Of Protection : NEMA 3R
