SQUARE D

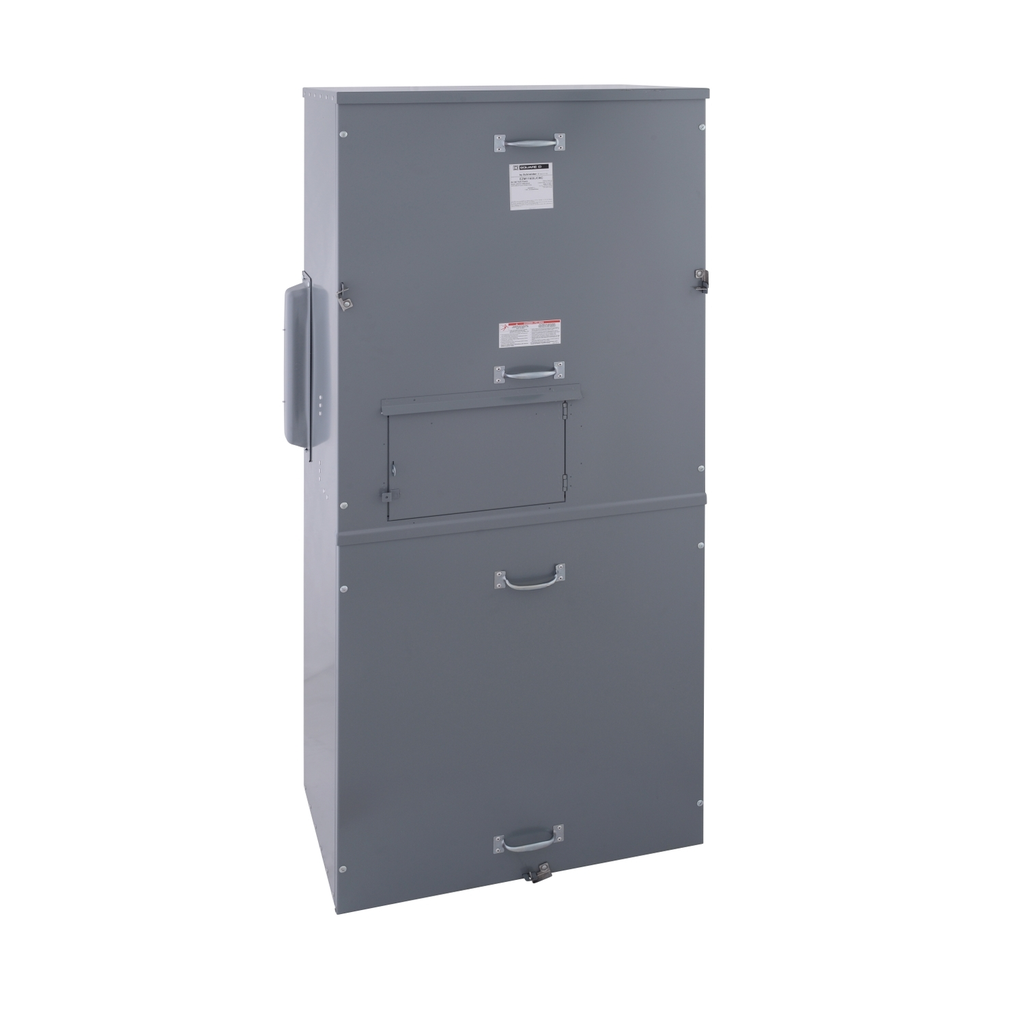

Main circuit breaker unit, EZ Meter-Pak, 1600A, 120/240VAC, 1ph/3W, 1200A bus, 100kA, OH/UG, Type 3R

EZM METER 1PH 1600A MAIN CB OH

SQDEZM11600JCBC EZM11600JCBC 785901948858
13844.85 / EACH
http://schema.org/OutOfStock
  • Country of Origin: Mexico
  • Depth: 18.33 in
  • Enclosure Material: Painted Steel
  • Height: 68.70 in
  • Warranty Length: 18 mth
  • Width: 30.19 in
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug term
QTY
  • Product Description
  • Features
  • Specifications
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug term
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Provided Equipment
    • circuit-breaker 1 ) 2P 1600 A 100 kA
    • closing plate
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Phase
    • 1 phase in
    • 1 phase out
  • Electrical Connection
    • lugs 1 AWG 6...300 kcmil aluminium/copper) ground
  • Service Feed Location
    • OH
    • UG
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Bus Rated Current : 1200 A
    • Main Rated Current : 1600 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Main circuit breaker, fusible switch, or lug terminal boxes available
    • B2B Bullet Point 2 : Meter-Pak units from 225A to 2000A
    • B2B Bullet Point 3 : Visi-Tite nuts eliminate special tools and torque readings
    • B2B Bullet Point 4 : Rotating mounting brackets pivot for drilling holes without moving the device
    • B2B Bullet Point 5 : External mounting channels allow immediate installation
    • B2B Bullet Point 6 : Compact footprint for installation flexibility
    • B2B Bullet Point 7 : NEMA Type 3R for outdoor and indoor installation
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Persona Type Ids : LC
    • Persona Type Names : Contractor
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Single-phase multi-tenant meter enclosure
    • Enclosure Material : painted steel
    • Energy Efficiency Optimized : False
    • Main Type : Main Circuit Breaker
    • Package Weight Lbs : 137.892 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : meter center main unit
    • Range Of Product : EZ meter-pak
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : meter center main unit
    • Range Of Product : EZ meter-pak
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423254426&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2011003
    • Eu Rohs Directive : Compliant with Exemptions
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 68.70 in
    • Width : 30.19 in
    • Depth : 18.33 in
