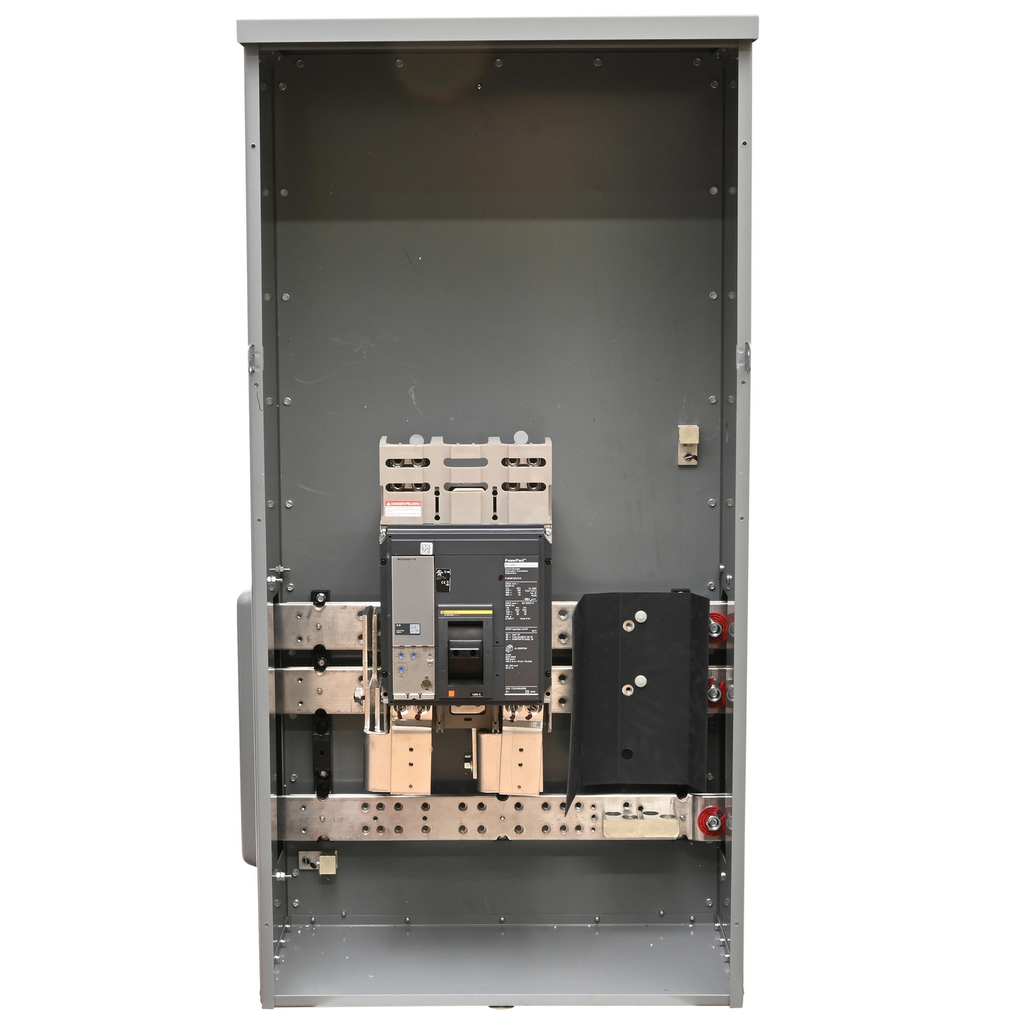

Main circuit breaker unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, 100kA, OH, Type 3R

EZM METER 1PH 1200A MAIN CB OH

SQDEZM11200JCBT EZM11200JCBT 785901865742
9414.89 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Main circuit breaker unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, 100kA, OH, Type 3R-1
  • Country of Origin: USA
  • Depth: 13.69 in
  • Enclosure Material: Painted Steel
  • Height: 46.90 in
  • Warranty Length: 18 mth
  • Width: 23.69 in
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from OH feeds. The unit is rated for 1200A with the busbar rated for 1200A. It has a short circuit current rating of 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.
QTY
  • Product Description
  • Features
  • Specifications
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from OH feeds. The unit is rated for 1200A with the busbar rated for 1200A. It has a short circuit current rating of 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Service Feed Location : OH
    • Height : 46.90 in
    • Phase : 1 phase in || 1 phase out
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Bus Rated Current : 1200 A
    • Main Rated Current : 1200 A
    • Electrical Connection : lugs
    • Enclosure Material : painted steel
    • Width : 23.69 in
    • Wiring Configuration : 3-wire
    • Depth : 13.69 in
  • Specifications
    • Country of Origin : United States
    • Width : 23.69 in
    • Height : 46.90 in
    • Range Of Product : EZ meter-pak
    • Main Type : Main Circuit Breaker
    • Provided Equipment : circuit-breaker 1 ) 2P 1200 A 100 kA || closing plate
    • Product Or Component Type : meter center main unit
