SQUARE D

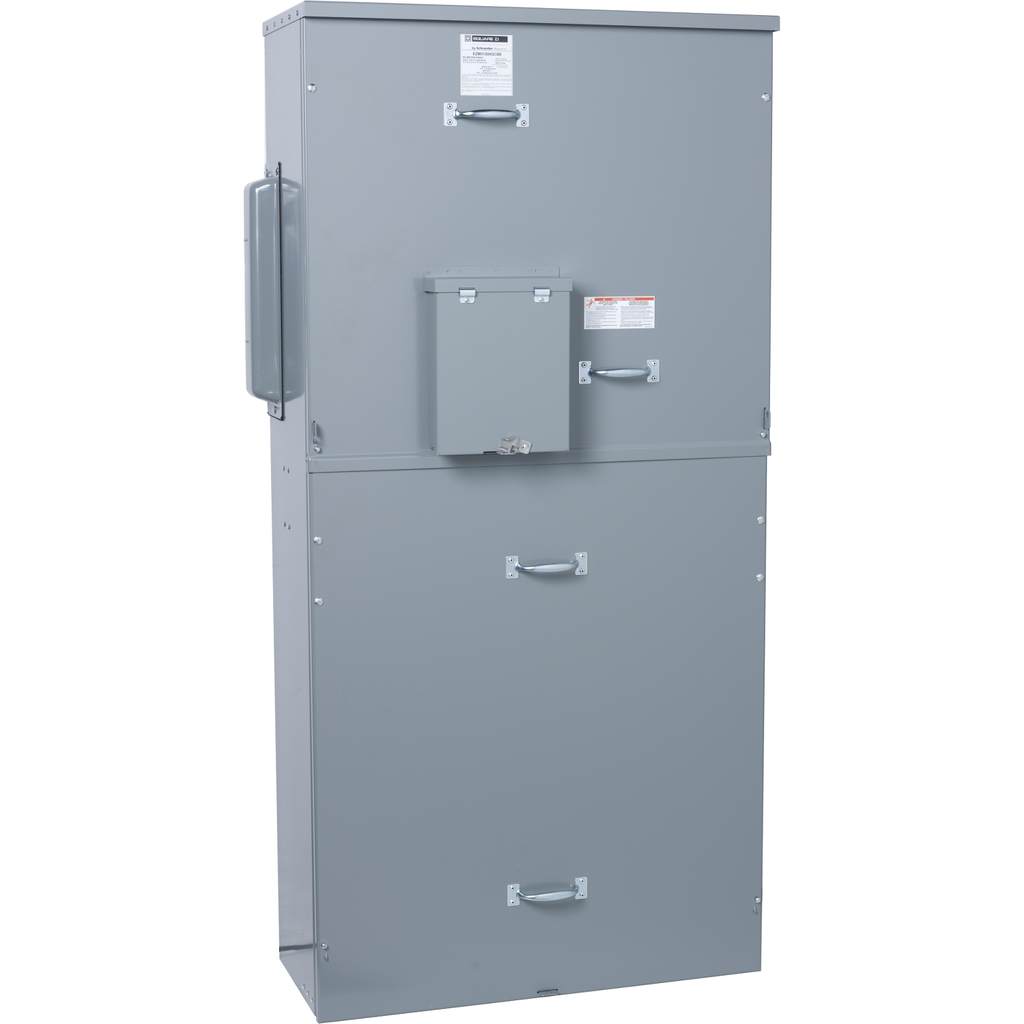

Main circuit breaker unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, 65kA, UG, Type 3R, EUSERC, ERMS

EZM MAIN 3PH CB 65K 1200A EUSE

SQDEZM31200GCBEMS EZM31200GCBEMS 785901468493
16287.52 / EA
http://schema.org/OutOfStock
  • Depth: 13.70 in
  • Enclosure Material: Painted Steel
  • Height: 66.27 in
  • Width: 32.39 in
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. With ERMS (energy reducing maintenance switch), it has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.
QTY
  • Product Description
  • Features
  • Specifications
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. With ERMS (energy reducing maintenance switch), it has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Service Feed Location : UG
    • Height : 66.27 in
    • Phase : 3 phase in || 3 phase out
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 208Y/120 V AC || 240/120 V delta AC
    • Bus Rated Current : 1200 A
    • Type Of Installation : indoor/outdoor
    • Main Rated Current : 1200 A
    • Electrical Connection : lugs 1 AWG 6...300 kcmil aluminium/copper) ground || busbar connection
    • Enclosure Material : painted steel
    • Wiring Configuration : 4-wire
    • Width : 32.39 in
    • Depth : 13.70 in
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2011003
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 1 317 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1316.9872651613
  • Specifications
    • Country of Origin : Mexico
    • Width : 32.39 in
    • Height : 66.27 in
    • Range Of Product : EZ meter-pak
    • Main Type : Main Circuit Breaker
    • Provided Equipment : circuit-breaker 1 ) 3P 1200 A 65 kA main supply, ready assembled || closing plate
    • Product Or Component Type : meter center main unit
  • Environment
    • Product Certifications : UL Listed || EUSERC
    • Nema Degree Of Protection : NEMA 3R
