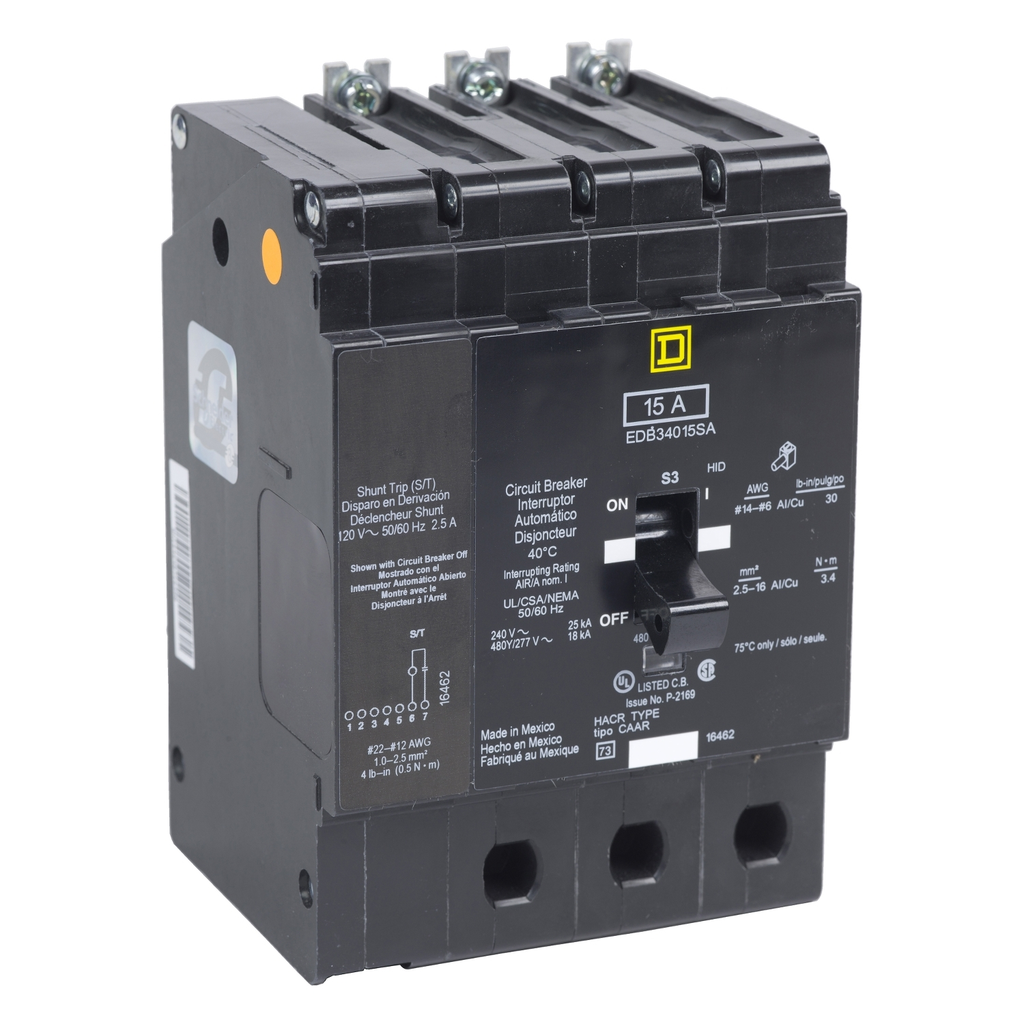

Mini circuit breaker, E-Frame, 15A, 3 pole, 480Y/277VAC, 25kA max, bolt on, aux switch, alarm switch [TAA]

MINIATURE CIRCUIT BREAKER 480Y

SQDEDB34015AABA EDB34015AABA 785901285175
1046.55 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, E-Frame, 15A, 3 pole, 480Y/277VAC, 25kA max, bolt on, aux switch, alarm switch [TAA]-1
  • Country of Origin: Mexico
  • Depth: 4.05 in
  • Height: 5.66 in
  • Module Type: E-Frame
  • Number of Poles: 3
  • Number of Spaces: 4
  • Warranty Length: 18 mth
  • Width: 3.92 in
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer super
QTY
  • Product Description
  • Features
  • Specifications
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer super
  • Ue Rated Operational Voltage
    • 480Y/277 V AC
  • Electrical Connection
    • lugs aluminium
  • Protection Type
    • overload
    • short-circuit
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
  • Device Composition
    • alarm switch
    • auxiliary switch
  • Circuit Breaker Application
    • HID rated
    • HACR rated
  • Persona Type Ids
    • LC
    • OM
  • Tightening Torque
    • 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
  • AWG Gauge
    • AWG 12...AWG 6 aluminium
    • AWG 14...AWG 6 copper
  • Product Destination
    • NF panelboard
  • Conformance Attributes
    • Product Certifications : cULus
  • Complementary Attributes
    • Line Rated Current : 15 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Used in lighting panelboards
    • B2B Bullet Point 2 : Superior overload and short circuit protection
    • B2B Bullet Point 3 : From 15A to 125A ratings
    • B2B Bullet Point 4 : Troubleshoot faster with Visi-Trip™
    • B2B Bullet Point 5 : UL listed, CSA, and HOM certified
    • B2B Bullet Point 6 : This product is TAA compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-18
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2212008
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : MCB
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB UL 3P
    • Device Short Name : EDB
    • Energy Efficiency Optimized : False
    • Holding Current : 270 A
    • Local Signalling : trip indicator
    • Module Type : E-Frame
    • Mounting Mode : bolt-on
    • Number Of Poles : 3
    • Number Of Spaces : 4
    • Number Of Spaces Required : 4
    • Package Weight Lbs : 1.925 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : 125 A Frame EDB-EGB-EJB
    • Returnability : No
    • Sustainable Packaging : No
    • Trip Unit Rating : 875-875 A
    • Trip Unit Technology : thermal-magnetic
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : 125 A Frame EDB-EGB-EJB
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=396923&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 40 °C
    • Circularity Profile : ENVEOLI2212008
    • Environmental Disclosure : ENVPEP2212008
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 5.66 in
    • Width : 3.92 in
    • Compliance : TAA
    • Depth : 4.05 in
