daisy chaining Bus X cable kit, Modicon X80, for racks, 2 connectors SUB-D9, 28m

BUS X EXT. CABLE 28M KIT

SQDTSXCBY280KT TSXCBY280KT 3595864104041
1134.50 / EA
http://schema.org/OutOfStock

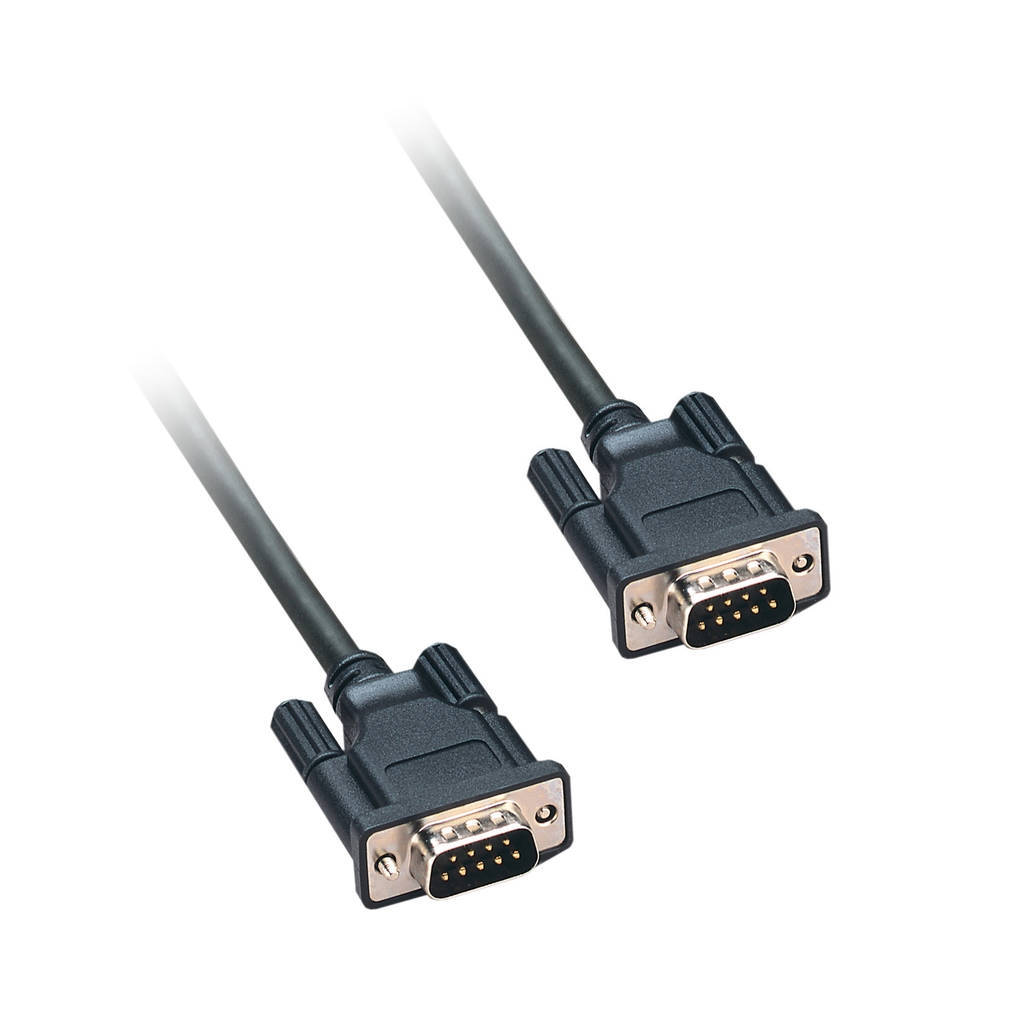

Mayer-DDS-daisy chaining Bus X cable kit, Modicon X80, for racks, 2 connectors SUB-D9, 28m-1
  • Country of Origin: Tunisia
  • Warranty Length: 18 mth
This cable kit is part of the Modicon X80 range, an offer of common IO modules, communication modules, power supplies, and backplanes for Modicon M340 and Modicon M580 automation platforms. The kit is used to connect bux-X racks one to the other in a daisy chain topology. It fits to straight connectors. It is ready to use. The cable is 28m long. It is an IP20 rated product. It has a black color. It is used for expanding a Modicon system. The use of a line terminator is recommended if one port remains available on the rack expansion module. The kit includes 1 cable and 2 transient voltage suppressors. It is connected to the rack expansion module BMXXBE0100, installed on both main and local racks, or on 2 local racks. The Modicon range is tailored for easy migration of legacy products. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
QTY
  • Product Description
  • Features
  • Specifications
This cable kit is part of the Modicon X80 range, an offer of common IO modules, communication modules, power supplies, and backplanes for Modicon M340 and Modicon M580 automation platforms. The kit is used to connect bux-X racks one to the other in a daisy chain topology. It fits to straight connectors. It is ready to use. The cable is 28m long. It is an IP20 rated product. It has a black color. It is used for expanding a Modicon system. The use of a line terminator is recommended if one port remains available on the rack expansion module. The kit includes 1 cable and 2 transient voltage suppressors. It is connected to the rack expansion module BMXXBE0100, installed on both main and local racks, or on 2 local racks. The Modicon range is tailored for easy migration of legacy products. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
  • Persona Type Names
    • End User
    • OEM - Control Panelbuilder
    • System Integrator
  • Persona Type Ids
    • EU
    • OM8
    • SI
  • Electrical Connection
    • 2 connectors SUB-D 9
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-15
    • HTML Description : daisy chaining Bus X cable kit - for racks - 2 connectors SUB-D 9 - 28 m
    • Manufacturer : Square D
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2024
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 3.595 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Range Of Product : Modicon Premium Automation platform
    • Returnability : No
    • Sustainable Packaging : No
    • Accessory Separate Part Designation : daisy chaining Bus X cable kit
    • Pep Code : ENVPEP1312012EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Range Of Product : Modicon Premium Automation platform
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61703223&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1312012EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1312012EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Tunisia
