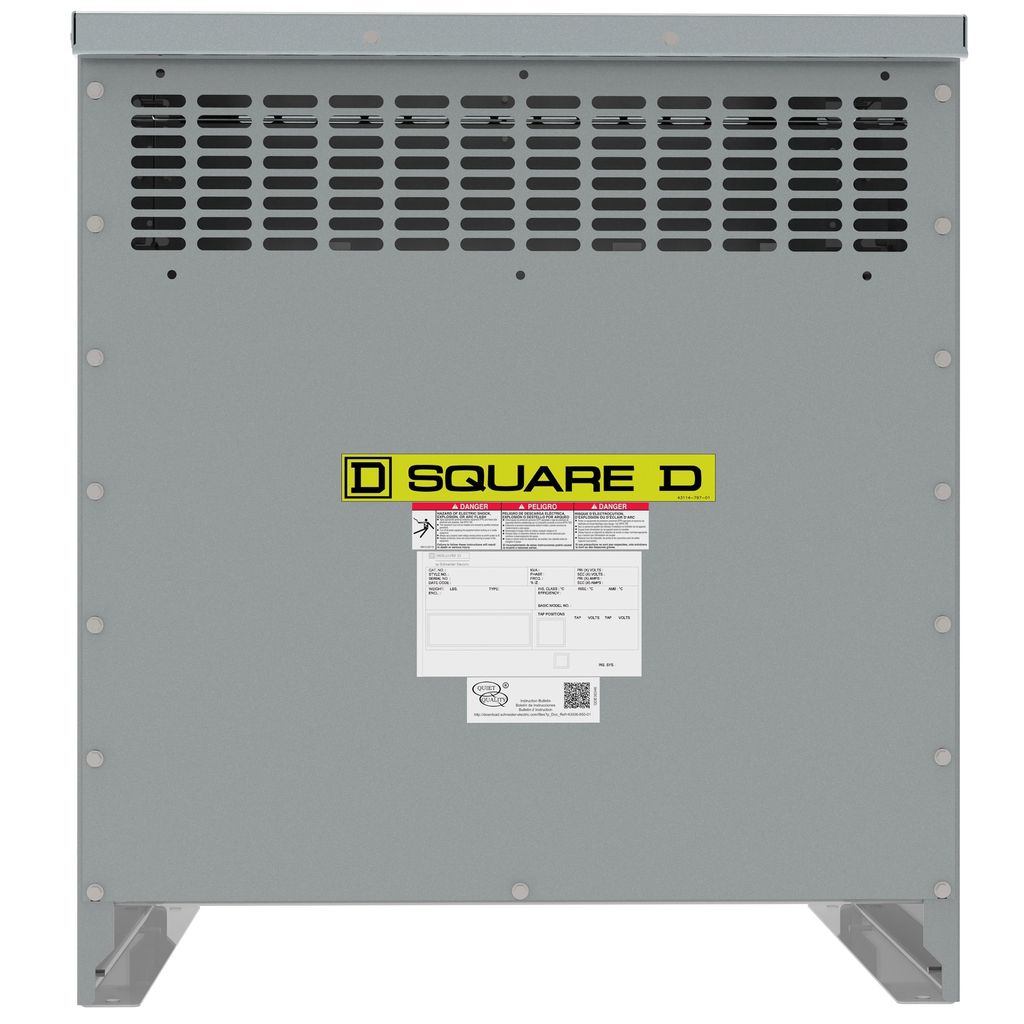

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 75kVA, 480V primary (three wire), 208Y

• Mounting Support
• floor
• floor, with 7400FMB
• ceiling, with 7400CMB18M19M20M
• wall, with 7400WMB18M19M20M
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 499 kg CO2 eq.
• 498.5015547340777
• Standards
• UL 1561
• CSA C22.2 No 47
• NEMA ST-20
• Electrical Connection
• 2 Hole Nema Pad primary 11.1 mm
• 2 Hole Nema Pad secondary 11.1 mm
• 4 Hole Nema Pad sec - XO 11.1 mm
• 4 Hole Nema Pad sec - X
• Continuous Thermal Current Rating Factor
• 696 16.6 %
• 959 25 %
• 2383 50 %
• 4757 75 %
• 8080 100 %
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 561 kg CO2 eq.
• 1561.1898646363159
• Temperature Rise
• 150 °C
• 220 °C insulated
• Accessories
• 7400WMB18M19M20M
• 7400WS20M
• 7400CMB18M19M20M
• 7400FMB
• Efficiency
• 98.63 % at 35 % load factor , 75.0 °C
• Number Of Mounting Holes
• 4 Ø: 13 mm
• Tap Loss
• 142 no load (core loss)
• 2226 load loss (coil loss)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 21 780 kg CO2 eq.
• 21779.971874637067
• Primary Operational Current
• 90.21-90.21 A 208.18 A 75 kVA
• Carbon Footprint Of The Distribution Phase A4
• 44.07472283863975
• 44 kg CO2 eq.
• Noise Level
• 3 dB NEMA ST-20
• 47 dB
• Number Of Tap Offs
• 2 2.5 % FCAN
• 4 2.5 % FCBN

• Complementary Attributes
• Rated Operational Power In Va : 75 kVA
• Ipk Rated Peak Withstand Current : 3.71 kA
• Uimp Rated Impulse Withstand Voltage : 10 kV
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : DOE 2016 fully compliant
• B2B Bullet Point 2 : Space-saving design
• B2B Bullet Point 3 : Terminals sized to handle Square D equipment
• B2B Bullet Point 4 : Bending radius for side and bottom access
• B2B Bullet Point 5 : ICS ES AC 156 shake table tested
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-10
• Html Descr : DOE 2016 LV XFMR, 3 Phase, 75kVA, 480 Delta-208Y/120, AL, 150C Rise
• Manufacturer : Schneider Electric
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : Yes
• Field Service Division : PSIBS
• Average Life Duration : 25 year(s)
• Manufacturing Carbon Footprint : 1561.18986463632
• Distribution Carbon Footprint : 44.0747228386398
• Installation Carbon Footprint : 0
• Use Carbon Footprint : 21779.9718746371
• End Of Life Carbon Footprint : 498.501554734078
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2014
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Box Number : 20M
• Device Application : low voltage electrical distribution
• Device Short Name : DOE 2016
• Halogen Free Status : Halogen free plastic parts product
• Inrush Current : 985 A
• Material : aluminium
• Network Frequency : 60 Hz
• Package Weight Lbs : 247.208 kg
• Percentage Impedance Voltage : 4.90 %
• Percentage Reactance : 3.97 %
• Phase : 3 phase
• Primary Voltage : 480 V delta
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : transformer
• Range Of Product : Square D
• Returnability : Yes
• Secondary Voltage : 208Y/120 V
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 23 884 kg CO2 eq.
• Transformer Type : energy efficient
• Type Of Cooling : natural convection
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• X R Ratio : 1.54
• Ipk Rated Peak Withstand Current : 3.71 kA
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 23883.7380168461
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : transformer
• Range Of Product : Square D
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=508255791&lang=en-us
• Take Back : No
• Declare : Red list free
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 23883.7380168461
• Ambient Air Temperature For Operation : 40-40 °C
• Average Ambient Air Temperature For Operation : 30 °C
• Environmental Disclosure : ENVPEP1604028_V2
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 33.5 in
• Width : 30.08 in
• Depth : 27.44 in
