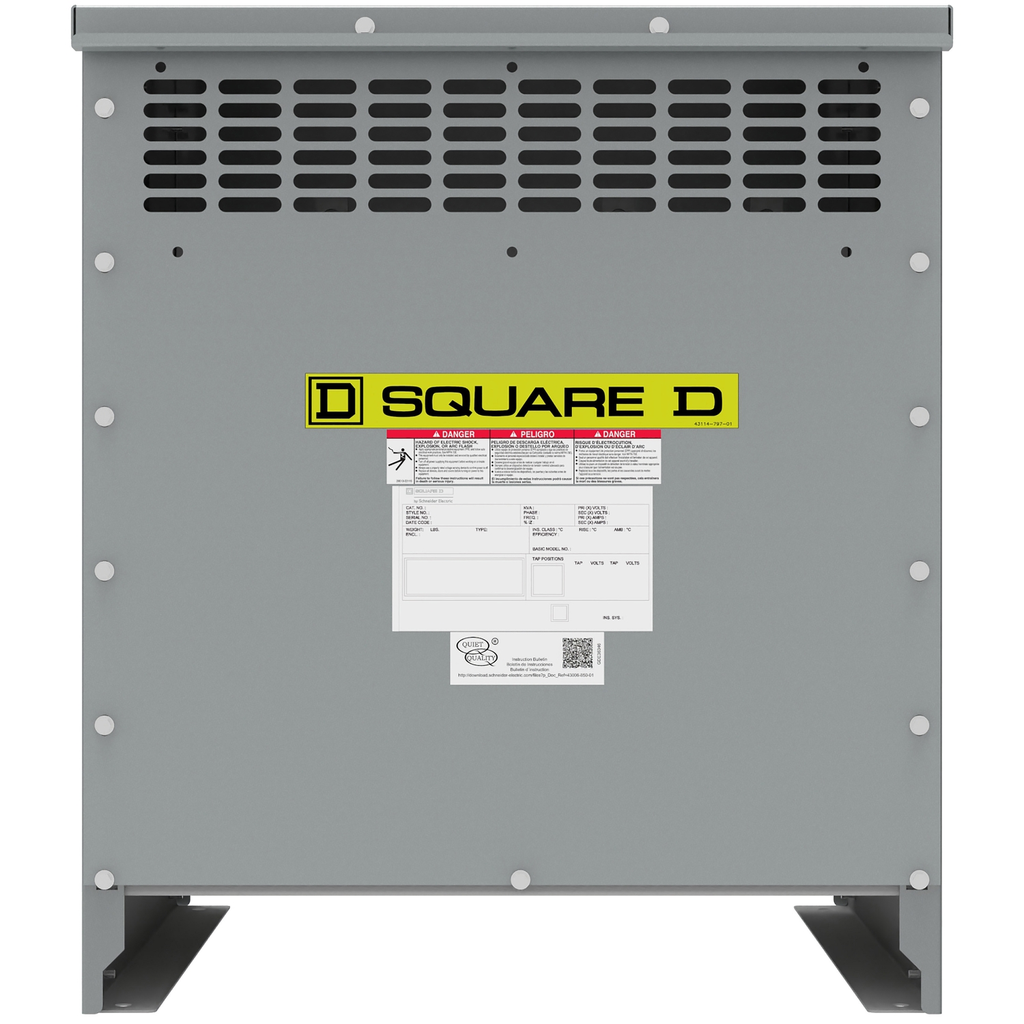

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 45kVA, 480V primary (three wire), 208Y

• Mounting Support
• floor
• floor, with 7400FMB
• ceiling, with 7400CMB18M19M20M
• wall, with 7400WMB18M19M20M
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 357 kg CO2 eq.
• 357.18831434670346
• Standards
• UL 1561
• CSA C22.2 No 47
• NEMA ST-20
• Electrical Connection
• 2 Hole Nema Pad primary 11.1 mm
• 2 Hole Nema Pad secondary 11.1 mm
• 4 Hole Nema Pad sec - XO 11.1 mm
• 4 Hole Nema Pad sec - X
• Continuous Thermal Current Rating Factor
• 492 16.6 %
• 663 25 %
• 1588 50 %
• 3130 75 %
• 5289 100 %
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 119 kg CO2 eq.
• 1118.6299637963466
• Temperature Rise
• 150 °C
• 220 °C insulated
• Accessories
• 7400WS18M19M
• 7400WMB18M19M20M
• 7400CMB18M19M20M
• 7400FMB
• Efficiency
• 98.45 % at 35 % load factor , 75.0 °C
• Number Of Mounting Holes
• 4 Ø: 13 mm
• Tap Loss
• 104 no load (core loss)
• 1446 load loss (coil loss)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 15 135 kg CO2 eq.
• 15134.856910666187
• Primary Operational Current
• 54.13-54.13 A 124.91 A 45 kVA
• Carbon Footprint Of The Distribution Phase A4
• 31.58059549970686
• 32 kg CO2 eq.
• Noise Level
• 3 dB NEMA ST-20
• 42 dB
• Number Of Tap Offs
• 2 2.5 % FCAN
• 4 2.5 % FCBN

• Complementary Attributes
• Rated Operational Power In Va : 45 kVA
• Ipk Rated Peak Withstand Current : 3.05 kA
• Uimp Rated Impulse Withstand Voltage : 10 kV
• Important Information Attributes
• B2B Bullet Point 1 : DOE 2016 fully compliant
• B2B Bullet Point 2 : Space-saving design
• B2B Bullet Point 3 : Terminals sized to handle Square D equipment
• B2B Bullet Point 4 : Bending radius for side and bottom access
• B2B Bullet Point 5 : ICS ES AC 156 shake table tested
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-10
• Html Descr : DOE 2016 LV XFMR, 3 Phase, 45kVA, 480 Delta-208Y/120, AL, 150C Rise
• Manufacturer : Schneider Electric
• Device Type : Transformer - dry
• Serviceability : No
• Traceability : Yes
• Field Service Division : PSIBS
• Average Life Duration : 25 year(s)
• Manufacturing Carbon Footprint : 1118.62996379635
• Distribution Carbon Footprint : 31.5805954997069
• Installation Carbon Footprint : 0
• Use Carbon Footprint : 15134.8569106662
• End Of Life Carbon Footprint : 357.188314346703
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2014
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Box Number : 19M
• Device Application : low voltage electrical distribution
• Device Short Name : DOE 2016
• Halogen Free Status : Halogen free plastic parts product
• Inrush Current : 736 A
• Material : aluminium
• Network Frequency : 60 Hz
• Package Weight Lbs : 177.354 kg
• Percentage Impedance Voltage : 4.10 %
• Percentage Reactance : 2.60 %
• Phase : 3 phase
• Primary Voltage : 480 V delta
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : transformer
• Range Of Product : Square D
• Returnability : Yes
• Secondary Voltage : 208Y/120 V
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 16 642 kg CO2 eq.
• Transformer Type : energy efficient
• Type Of Cooling : natural convection
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• X R Ratio : 0.88
• Ipk Rated Peak Withstand Current : 3.05 kA
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 16642.25578430894
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : transformer
• Range Of Product : Square D
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=508255763&lang=en-us
• Take Back : No
• Declare : Red list free
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 16642.2557843089
• Ambient Air Temperature For Operation : 40-40 °C
• Average Ambient Air Temperature For Operation : 30 °C
• Environmental Disclosure : ENVPEP1604028_V2
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 29.33 in
• Width : 25.51 in
• Depth : 25.94 in
