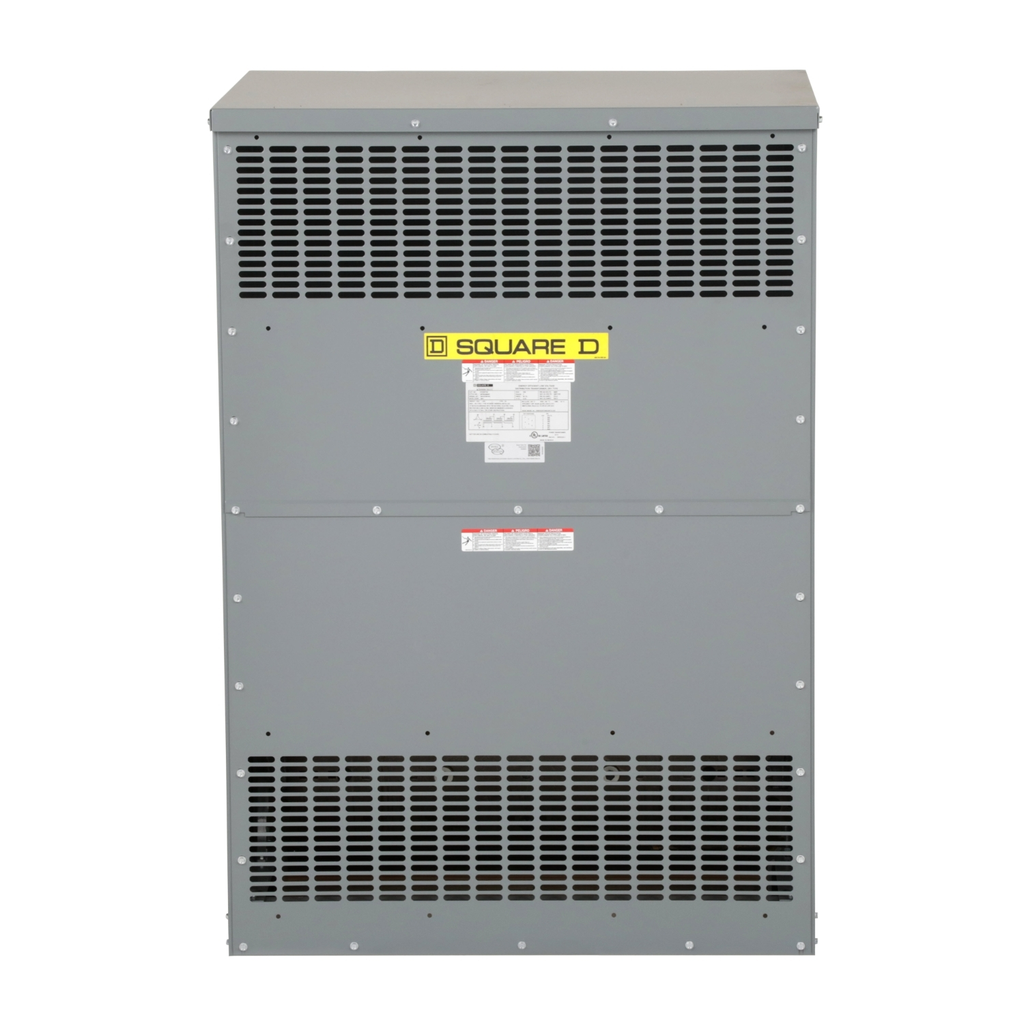

EX three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 225kVA, 480V primary (three wire), 208Y

• Mounting Support
• floor
• floor, with 7400FMB
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 34.78844216176204
• 35 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 684 kg CO2 eq.
• 1683.951265333531
• Standards
• UL 1561
• CSA C22.2 No 47
• NEMA ST-20
• Electrical Connection
• 4 Hole Nema Pad primary 11.1 mm
• 6 Hole Nema Pad secondary 11.1 mm
• 8 Hole Nema Pad sec - XO 11.1 mm
• 8 Hole Nema Pad sec - X
• Continuous Thermal Current Rating Factor
• 1483.536394404384 16.6 %
• 2019.1350284999999 25 %
• 4893.011627999999 50 %
• 9682.8059605 75 %
• 16388.518025999998 1.0 %
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 312 kg CO2 eq.
• 3311.633151098665
• Temperature Rise
• 150 °C
• 220 °C insulated
• Accessories
• 7400WS25J
• DASKP600
• 7400FMB
• DASKP1000
• 7400DS25J
• DASKGS1000
• Efficiency
• 99.04 % at 35 % load factor , 75.0 °C
• Tap Loss
• 311.0 no load (core loss)
• 4492.0 load loss (coil loss)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 46 003 kg CO2 eq.
• 46003.020467185845
• Carbon Footprint Of The Distribution Phase A4
• 132.22416851591925
• 132 kg CO2 eq.
• Noise Level
• 6 dB NEMA ST-20
• 49 dB
• Number Of Tap Offs
• 2 2.5 % FCAN
• 4 2.5 % FCBN

• Complementary Attributes
• Rated Operational Power In Va : 225 kVA
• Ipk Rated Peak Withstand Current : 10.9 kA
• Uimp Rated Impulse Withstand Voltage : 10 kV
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Designed for harmonic applications
• B2B Bullet Point 2 : DOE 2016 fully compliant
• B2B Bullet Point 3 : Reduced floor space required
• B2B Bullet Point 4 : Bending radius for side and bottom access
• B2B Bullet Point 5 : ICS ES AC 156 shake table tested
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-23
• Html Descr : Low voltage transformer, DOE 2016, dry type, 3 phase, 225kVA, 480V pri, 208Y/120V sec, Cu, 150C rise, Type 1
• Manufacturer : Square D
• Device Type : Transformer - dry
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : PSIBS
• Average Life Duration : 25 year(s)
• Manufacturing Carbon Footprint : 3311.63315109867
• Distribution Carbon Footprint : 132.224168515919
• Installation Carbon Footprint : 34.788442161762
• Use Carbon Footprint : 46003.0204671858
• End Of Life Carbon Footprint : 1683.95126533353
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1902
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Box Number : 25J
• Device Application : low voltage electrical distribution
• Device Short Name : DOE 2016
• Material : copper
• Network Frequency : 60 Hz
• Package Weight Lbs : 810.115 kg
• Percentage Impedance Voltage : 0.057 %
• Percentage Reactance : 0.0536 %
• Phase : 3 phase
• Primary Voltage : 480 V delta
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : transformer
• Range Of Product : Square D
• Returnability : Yes
• Secondary Voltage : 208Y/120 V
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 51 166 kg CO2 eq.
• Transformer Type : energy efficient
• Type Of Cooling : natural convection
• X R Ratio : 2.68
• Ipk Rated Peak Withstand Current : 10.9 kA
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 51165.61749429572
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : transformer
• Range Of Product : Square D
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=439593629&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 51165.6174942957
• Ambient Air Temperature For Operation : 40-40 °C
• Average Ambient Air Temperature For Operation : 30 °C
• Environmental Disclosure : ENVPEP1604027_V2
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 57.52 in
• Width : 40.08 in
• Depth : 32.76 in
