SQUARE D

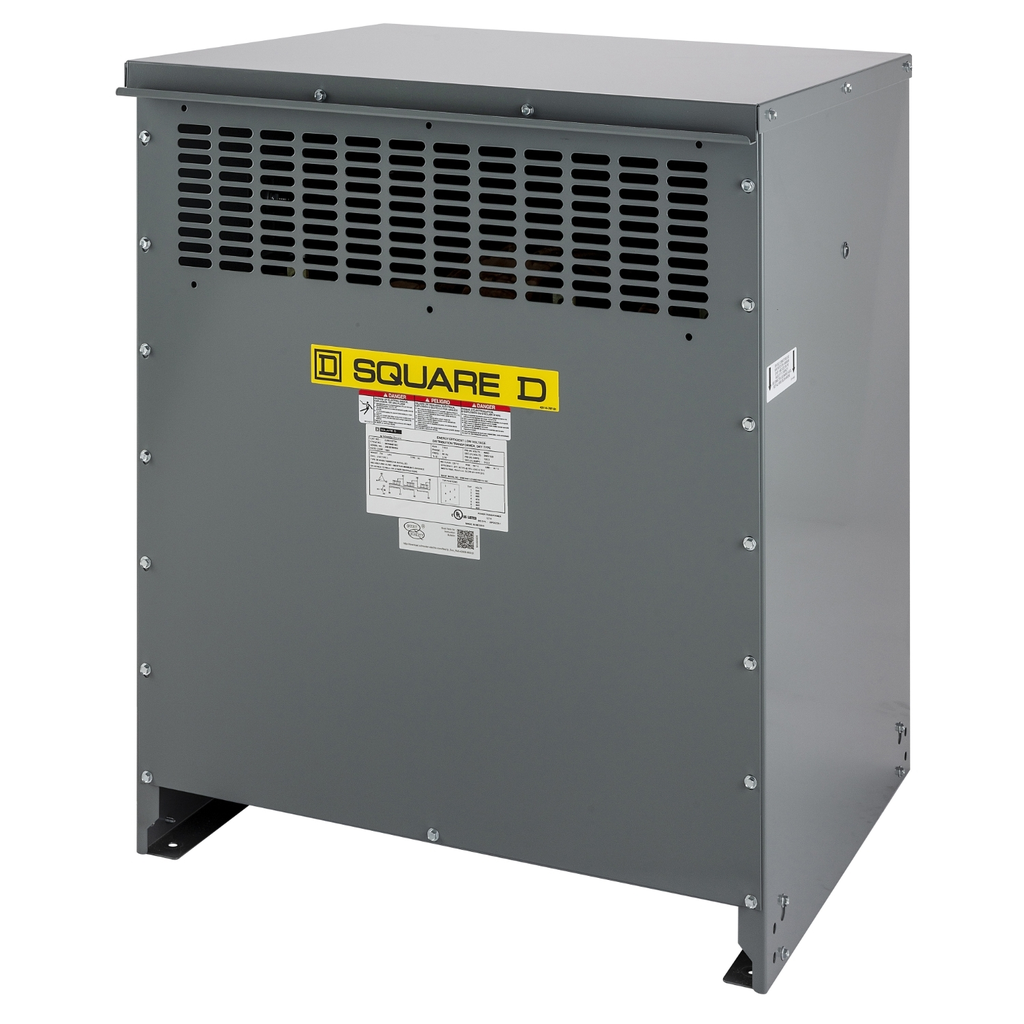

Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 80C rise, Cu

TRANSFORMER DRY TYPE 150KVA 48

SQDEXN150T3HBCU EXN150T3HBCU 785901454694
28479.84 / EA
http://schema.org/OutOfStock
Mayer-DDS-Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 80C rise, Cu-1
  • Country of Origin: Mexico
EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 150kVA, 480V primary (three wire), 208
QTY
  • Product Description
  • Features
  • Specifications
EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 150kVA, 480V primary (three wire), 208
  • Mounting Support
    • floor
    • floor, with 7400FMB
    • ceiling, with 7400CMB22M
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=EXN150T3HBCU&p_File_name=EXN150T3HBCU.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=EXN150T3HBCU&p_File_name=EXN150T3HBCU.DXF
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 32.06414178242771
    • 32 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1 552 kg CO2 eq.
    • 1552.0801959249918
  • Electrical Connection
    • 6 Hole Nema Pad secondary 11.1 mm
    • 8 Hole Nema Pad sec - XO 11.1 mm
    • 2 Hole Nema Pad primary 11.1 mm
    • 2 Hole Nema Pad prima
  • Continuous Thermal Current Rating Factor
    • 1193 16.6 %
    • 1456 25 %
    • 2877 50 %
    • 5246 75 %
    • 8561 100 %
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 3 052 kg CO2 eq.
    • 3052.297495658747
  • Temperature Rise
    • 80 °C
    • 220 °C insulated
  • Accessories
    • 7400WS22M
    • 7400FMB
    • 7400CMB22M
  • Efficiency
    • 99.09 % at 35 % load factor , 75.0 °C
  • Number Of Mounting Holes
    • 4 Ø: 13 mm
  • Tap Loss
    • 228 no load (core loss)
    • 2221 load loss (coil loss)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 28 975 kg CO2 eq.
    • 28974.93015599451
  • Primary Operational Current
    • 90.21-90.21 A 208.18 A 150 kVA
  • Carbon Footprint Of The Distribution Phase A4
    • 121.8696274654717
    • 122 kg CO2 eq.
  • Noise Level
    • 49 dB
    • 7 dB
  • Number Of Tap Offs
    • 2 2.5 % FCAN
    • 4 2.5 % FCBN
  • Important Information Attributes
    • B2B Bullet Point 1 : Comes in a space-saving design and DOE 2016 fully compliant
    • B2B Bullet Point 2 : Terminals sized to handle Square D equipment
    • B2B Bullet Point 3 : Bending radius for side and bottom access to the transformer
    • B2B Bullet Point 4 : Product characteristics conformity is certified by UL
    • B2B Bullet Point 5 : .
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Device Type : Transformer - dry
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : PSIBS
    • Average Life Duration : 25 year(s)
    • Manufacturing Carbon Footprint : 3052.297496
    • Distribution Carbon Footprint : 121.8696275
    • Installation Carbon Footprint : 32.06414178
    • Use Carbon Footprint : 28974.93016
    • End Of Life Carbon Footprint : 1552.080196
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2014
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Device Short Name : DOE 2016
    • Inrush Current : 1332 A
    • Package Weight Lbs : 700.8 kg
    • Percentage Impedance Voltage : 5.45%
    • Percentage Reactance : 5.28%
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : transformer
    • Range Of Product : Square D
    • Returnability : Yes
    • Secondary Voltage : 208Y/120 V
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 33 733 kg CO2 eq.
    • Transformer Type : energy efficient
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • X R Ratio : 3.91
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 33733.24162
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1604027_V2
    • Pep Verification Date : 2/1/2025
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Product Weight In G : 645920
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, th
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 60491.09376
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model Installation A5 : Electricity origin
    • Energy Model Use B6 : Electricity origin
    • Energy Model End Of Life C1 C4 : Electricity origin
    • Recyclability Potential In : 95
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 186.1024822
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 45.3957686
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.772901154
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.013508448
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 131.6321567
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 8.288147295
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -35.5194659
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 110.268868
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 1.635157137
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 30.75285703
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 41.42208323
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 36.45877062
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -34.83194294
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 33622.97218
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 3050.662311
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 121.8696275
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 1.311284755
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 28933.50807
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 1515.620882
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1932.992589
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 33733.24162
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 3052.297496
    • Climate Change Total Kg Co2 Eq Distribution A4 : 121.8696275
    • Climate Change Total Kg Co2 Eq Installation A5 : 32.06414178
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 28974.93016
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 1552.080196
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1967.824532
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.896890762
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.859741692
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 4.80441E-06
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : -1.32658E-06
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.003868684
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.033276908
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.730736181
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 812780.4079
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 72656.60624
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1702.493786
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 19.0325455
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 644828.767
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 93573.50831
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -43680.34991
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 108362.0108
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 37801.03091
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 79.93924487
    • Ecotoxicity Fresh Water Ctue Installation A5 : 38.56309295
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 39736.56238
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 30705.91519
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -10716.73807
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.002286478
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.001273898
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 6.28544E-06
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 7.08536E-08
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.000961412
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 4.48124E-05
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.001046781
    • Exported Energy Mj By Energy Vector Total Life Cycle : 8.195715314
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 2.435581244
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 5.76013407
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 1.13265851
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.056342326
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 4.57776E-05
    • Freshwater Eutrophication Kg P Eq Installation A5 : 2.3183E-06
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.051897237
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 1.024370851
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.002911134
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 70928.43693
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 70928.2393
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : -0.001917453
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.199547227
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -60450.10646
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 4.45179E-05
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 3.98765E-05
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 2.14462E-09
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 8.32051E-08
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 3.40711E-06
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.14891E-06
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.005871765
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.000698662
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000523313
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 4.14889E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 5.7309E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 8.80248E-05
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 8.72256E-05
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000433774
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 3787.920167
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 160.9723687
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 533.617719
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 3093.330079
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 81809.04803
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 53389.6329
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.297249913
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.067310117
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 28371.34323
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 47.70733603
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -44031.76559
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 21.0988153
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 2.672075639
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.362279779
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.005068019
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 16.70203484
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 1.357357023
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -1.3153514
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 650.1309874
    • Materials For Recycling Kg Manufacturing A1 A3 : 67.71333781
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 582.4176496
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 120.8666728
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 58.1647638
    • Net Use Of Fresh Water M3 Distribution A4 : 0.010790399
    • Net Use Of Fresh Water M3 Installation A5 : 0.1025372
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 31.64946098
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 30.93912045
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -45.72611816
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 6542.271876
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2163.292079
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 4.283816604
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 30.67696058
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 4310.791725
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 33.22729507
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1359.432673
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000560896
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00042857
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 1.87079E-07
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 5.66843E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000115009
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.70734E-05
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.000341185
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 72.09210865
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 11.23486503
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 1.002441538
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.013140712
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 55.03523363
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 4.806427737
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -6.702795771
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 1.999664156
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.962382359
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.003051065
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.000674629
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 1.029484791
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.004071313
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.627966423
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 249.4779412
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 30.322193
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 3.974383973
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.060015242
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 199.1221231
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 15.99922591
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -15.39108011
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 375.2103178
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 375.2103178
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 885973.4789
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 75191.47862
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1704.765685
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 19.33591524
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 714685.5713
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 94372.32733
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -44650.16339
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 73193.07098
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2534.872385
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.271899324
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.303369745
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 69856.8043
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 798.819022
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -969.8134735
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 375.2103178
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 375.2103178
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 812405.1976
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 72281.39592
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1702.493786
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 19.0325455
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 644828.767
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 93573.50831
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -43680.34991
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 626.2067139
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 626.2067139
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 72566.86426
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1908.665671
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.271899324
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.303369745
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 69856.8043
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 798.819022
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -969.8134735
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.009814115
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.009814115
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 5187.133029
    • Water Use M3 Eq Manufacturing A1 A3 : 2498.096326
    • Water Use M3 Eq Distribution A4 : 0.463447647
    • Water Use M3 Eq Installation A5 : 4.40397274
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 1355.343216
    • Water Use M3 Eq End Of Life C1 C4 : 1328.826067
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -1963.87277
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • Specifications
    • Country of Origin : Mexico
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=508255698&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 33733.24162
    • Environmental Disclosure : ENVPEP1604027_V2
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1604027_V2
    • Pep Verification Date : 2/1/2025
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
  • General Attributes
    • Product Or Component Type : transformer
    • Range Of Product : Square D
