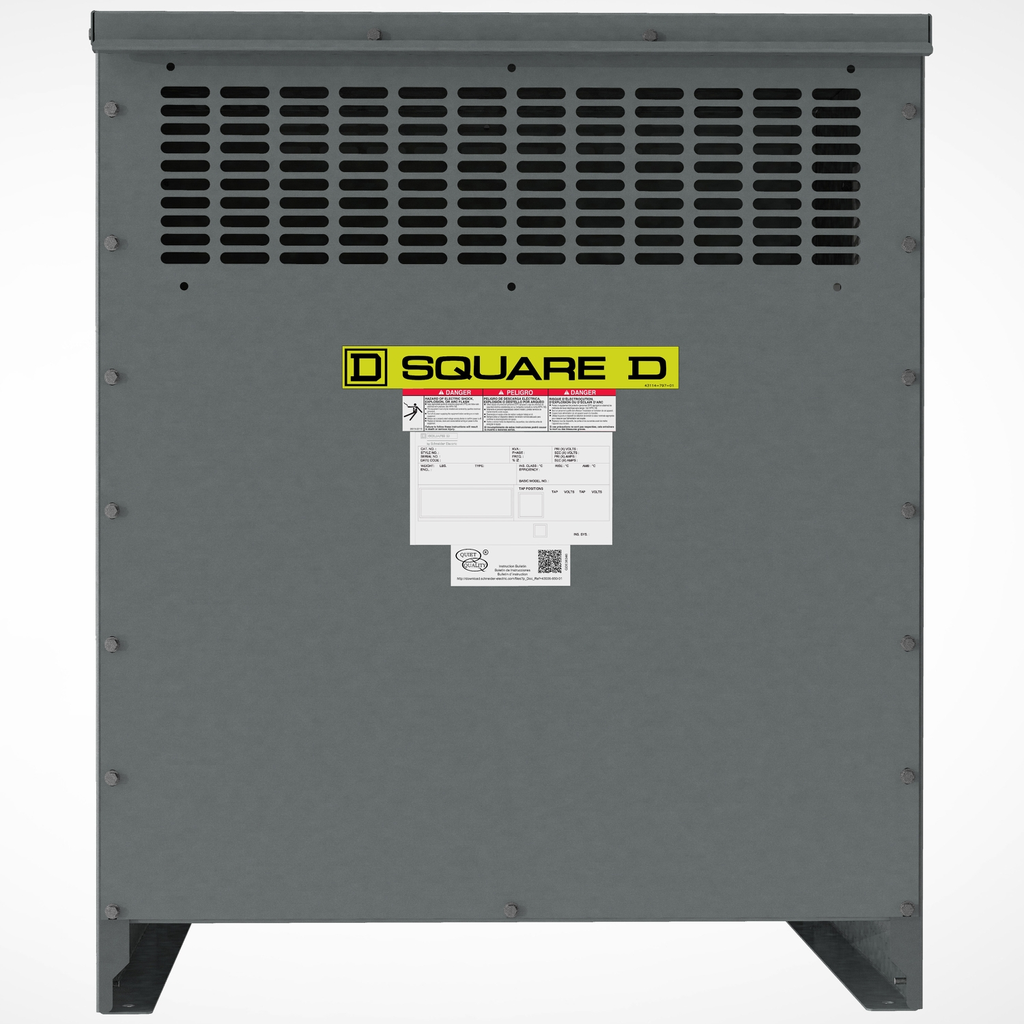

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 112.5kVA, 480V primary (three wire), 2

• Mounting Support
• floor
• floor, with 7400FMB
• ceiling, with 7400CMB21M
• Prop 65
• WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 701 kg CO2 eq.
• 700.80441170664
• Standards
• UL 1561
• CSA C22.2 No 47
• NEMA ST-20
• Electrical Connection
• 4 Hole Nema Pad primary 11.1 mm
• 4 Hole Nema Pad secondary 11.1 mm
• 6 Hole Nema Pad sec - XO 11.1 mm
• 6 Hole Nema Pad sec - X
• Continuous Thermal Current Rating Factor
• 1003 16.6 %
• 1309 25 %
• 2963 50 %
• 5721 75 %
• 9581 100 %
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 195 kg CO2 eq.
• 2194.7549295657795
• Temperature Rise
• 150 °C
• 220 °C insulated
• Accessories
• 7400WS21M
• 7400FMB
• 7400CMB21M
• Efficiency
• 98.80 % at 35 % load factor , 75.0 °C
• Number Of Mounting Holes
• 4 Ø: 13 mm
• Tap Loss
• 222 no load (core loss)
• 2586 load loss (coil loss)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 30 089 kg CO2 eq.
• 30088.715337367274
• Primary Operational Current
• 135.32-135.32 A 312.27 A 112.5 kVA
• Carbon Footprint Of The Distribution Phase A4
• 61.96121138788225
• 62 kg CO2 eq.
• Noise Level
• 44 dB
• 6 dB NEMA ST-20
• Number Of Tap Offs
• 2 2.5 % FCAN
• 4 2.5 % FCBN

• Complementary Attributes
• Rated Operational Power In Va : 112.5 kVA
• Ipk Rated Peak Withstand Current : 8.44 kA
• Uimp Rated Impulse Withstand Voltage : 10 kV
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Html Descr : Low voltage transformer, DOE 2016, dry type, 3 phase, 112.5kVA, 480V pri, 208Y/120V sec, Al, 150C rise, Type 2
• Manufacturer : Square D
• Baan Price : 20727.68
• Baan Currency : USD
• Device Type : Transformer - dry
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : PSIBS
• Average Life Duration : 25 year(s)
• Manufacturing Carbon Footprint : 2194.75492956578
• Distribution Carbon Footprint : 61.9612113878823
• Installation Carbon Footprint : 0
• Use Carbon Footprint : 30088.7153373673
• End Of Life Carbon Footprint : 700.80441170664
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2014
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 2 - SELECTED (Migration)
• Box Number : 21M
• Device Application : low voltage electrical distribution
• Device Short Name : DOE 2016
• Halogen Free Status : Halogen free plastic parts product
• Inrush Current : 1939 A
• Material : aluminium
• Network Frequency : 60 Hz
• Package Weight Lbs : 339.29 kg
• Percentage Impedance Voltage : 3.70 %
• Percentage Reactance : 2.94 %
• Phase : 3 phase
• Primary Voltage : 480 V delta
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : transformer
• Range Of Product : Square D
• Returnability : Yes
• Secondary Voltage : 208Y/120 V
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 33 046 kg CO2 eq.
• Transformer Type : energy efficient
• Type Of Cooling : natural convection
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• X R Ratio : 1.42
• Ipk Rated Peak Withstand Current : 8.44 kA
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 33046.23589002757
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : transformer
• Range Of Product : Square D
• Environment Attributes
• Take Back : No
• Declare : Red list free
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 33046.2358900276
• Ambient Air Temperature For Operation : 40-40 °C
• Average Ambient Air Temperature For Operation : 30 °C
• Environmental Disclosure : ENVPEP1604028_V2
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 37.52 in
• Width : 31.3 in
• Depth : 28.43 in
