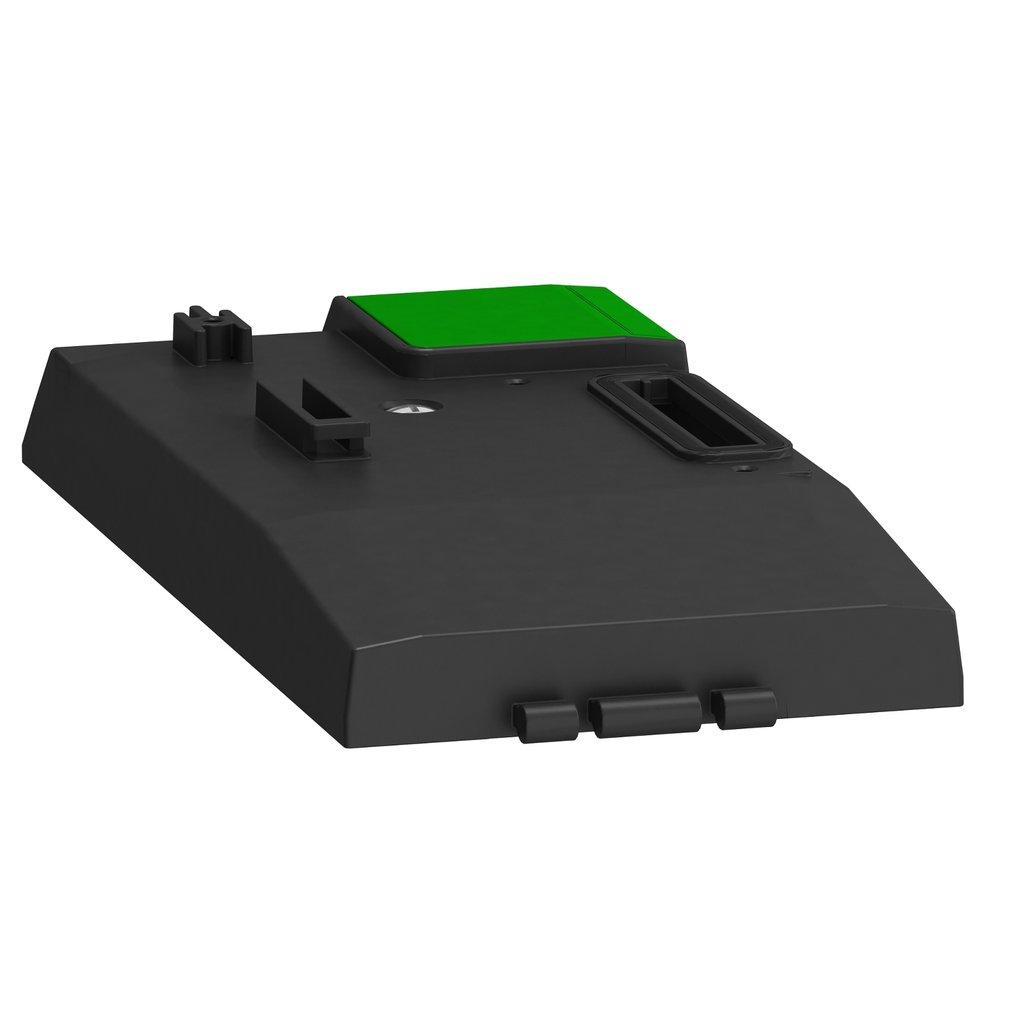

This product is part of the Lexium 32i range, an offer of control units for integrated servo drive from 0.6kW to 2.2kW. This control unit offers 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is furnished with RJ45 for Modbus and M12 for Profinet connectors. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.63kg. The Lexium 32i is the perfect drive for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CSA, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. Lexium BMI servo motors are available in 2 flange sizes and 2 different lengths, a continuous torque range from 1.7Nm to 7.2Nm for speeds up to 4700RPM. Lexium 32i integrated servo drive from 0.6kW to 2.2kW is designed for application areas requiring high precision and advanced motor control.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Interface : Profinet, Integrated
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Connector Type : RJ45 Modbus, M12 PROFINET
• Contact Bounce Time : <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B, 0.25 µs...1.5 ms DI
• Electromagnetic Compatibility : conducted EMC conforming to EN 55011 class A group 1, conducted EMC conforming to EN 55011 class A group 2, conducted EMC conforming to EN/IEC 61800-3 environment 2 category C3, conducted EMC conforming to IEC/EN 61800-3 category C2, EMC immunity conforming to IEC/EN 61800-3 environments 1 and 2, EMC immunity level 3 conforming to IEC 61000-4-2, EMC immunity level 3 conforming to IEC 61000-4-3, EMC immunity level 3 conforming to IEC 61000-4-5, EMC immunity level 4 conforming to IEC 61000-4-4, radiated EMC conforming to EN 55011 class A group 2, radiated EMC conforming to IEC/EN 61800-3 category C3
• Number Of Addresses : 1-127 CANopen, CANmotion, 1-247 Modbus
• Protection Type : against reverse polarity inputs signal, against short-circuits outputs signal
• Response Time : <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
• Safety Level : SIL 3 IEC 61508, PL = e ISO 13849-1
• Status Led : 1 LED (Red) servo drive voltage, 1 LED error, 1 LED RUN
• Vibration Resistance : 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.0812841738, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1642007758
• Carbon Footprint Of The Installation Phase A5 : 0.0059571901, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 15 kg CO2 eq., 14.9665321955
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Motion - integrated drive
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1609004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Braking Current : 50 mA
• Compatibility Code : LXM32i
• Control Signal Type : servo motor encoder feedback
• Device Short Name : LXM32i
• Environmental Characteristic : classes 3C1 conforming to IEC 60721-3-3
• Format Of The Drive : board
• Package Weight Lbs : 656.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : control unit
• Range Of Product : Lexium 32i
• Returnability : No
• Safety Function : safe torque off safety function, Integrated
• Sampling Duration : DI 0.25 ms discrete
• Shock Resistance : 15 gn 11 ms IEC 60028-2-27
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
• Transmission Rate : 9600, 19200, 38400 bps 0-40 m Modbus
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1609004EN
• Pep Verification Date : 2021-03-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To drive and control the integrated synchronous electric motor for 10 years 100% of the time
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 15.2179743351
• Ambient Air Temperature For Operation : 0-50 °C UL
• Circularity Profile : ENVEOLI1609004EN
• Environmental Disclosure : ENVPEP1609004EN
• IP Degree Of Protection : IP65
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
• Pep Code : ENVPEP1609004EN
• Pep Verification Date : 2021-03-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : control unit
• Range Of Product : Lexium 32i
• Output Attributes
• Discrete Output Voltage : <= 30 V DC, <= 30 V DC
• Discrete Output Logic : positive or negative DO)IEC 61131-2
• Discrete Output Type : logic DO)24 V DC
• Response Time On Output : 250 µs DO)discrete
• Input Attributes
• Discrete Input Logic : positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V IEC 61131-2 Type 1, positive DI)> 19 V < 9 V IEC 61131-2 Type 1, positive or negative DI)< 5 V > 15 V IEC 61131-2 Type 1
• Discrete Input Number : 2 safety, 4 logic
• Discrete Input Type : safety compliment of STO_A, compliment of STO_B, logic DI
• Discrete Input Voltage : 24 V DC capture, 24 V DC logic, 24 V DC safety
