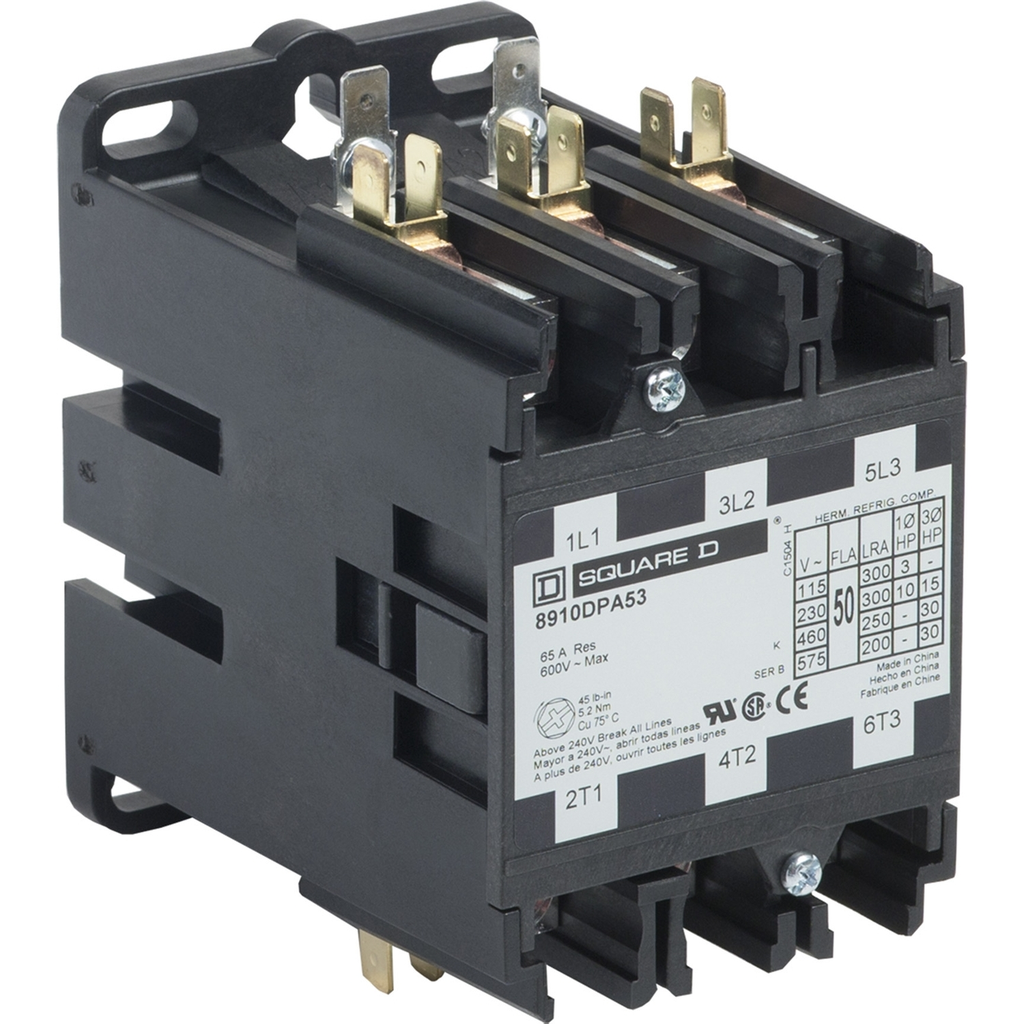

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.

• Complementary Attributes
• Locked Rotor Rated Current : 300 A 277 V AC, 300 A 277 V AC, 300 A 277 V AC, 250 A 460 V AC, 250 A 460 V AC, 250 A 460 V AC, 200 A 575 V AC, 200 A 575 V AC, 200 A 575 V AC
• Maximum Horse Power Rating : 3-3 hp 115 V AC, 1 phase, 3-3 hp 115 V AC, 1 phase, 3-3 hp 115 V AC, 1 phase, 3-3 hp 115 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 15-15 hp 230 V AC, 3 phase, 15-15 hp 230 V AC, 3 phase, 15-15 hp 230 V AC, 3 phase, 15-15 hp 230 V AC, 3 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase
• UC Control Circuit Voltage : 208...240 V AC 60 Hz, 208...240 V AC 60 Hz, 208...240 V AC 60 Hz, 220 V AC 50 Hz, 220 V AC 50 Hz, 220 V AC 50 Hz
• UE Rated Operational Voltage : 600 V AC, 600 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• HTML Description : Definite Purpose Contactor:Range of Product: DPALine Rated Current: 50AMotor Power Horsepower: 3HP 115VAC, 10HP 230VAC, 15HP 230VAC, 30HP 460VAC, 30HP 575VACNumber of Phases: 1-PhaseNumber of Poles: 3-PoleControl Circuit Voltage: 220 VAC 50Hz, 208-240 VAC 60HzEnclosure Rating: OpenMounting: PanelSystem Voltage: 600VACLocked Rotor Rated Current: 250A 460 VAC, 200A 575 VAC, 300A 277 VACElectrical Connection: Quick Connect Terminals, Box Lugs
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Package Weight Lbs : 680.388 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Definite Purpose Contactor
• Range Of Product : DPA
• Returnability : Yes
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : Definite Purpose Contactor
• Range Of Product : DPA
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
