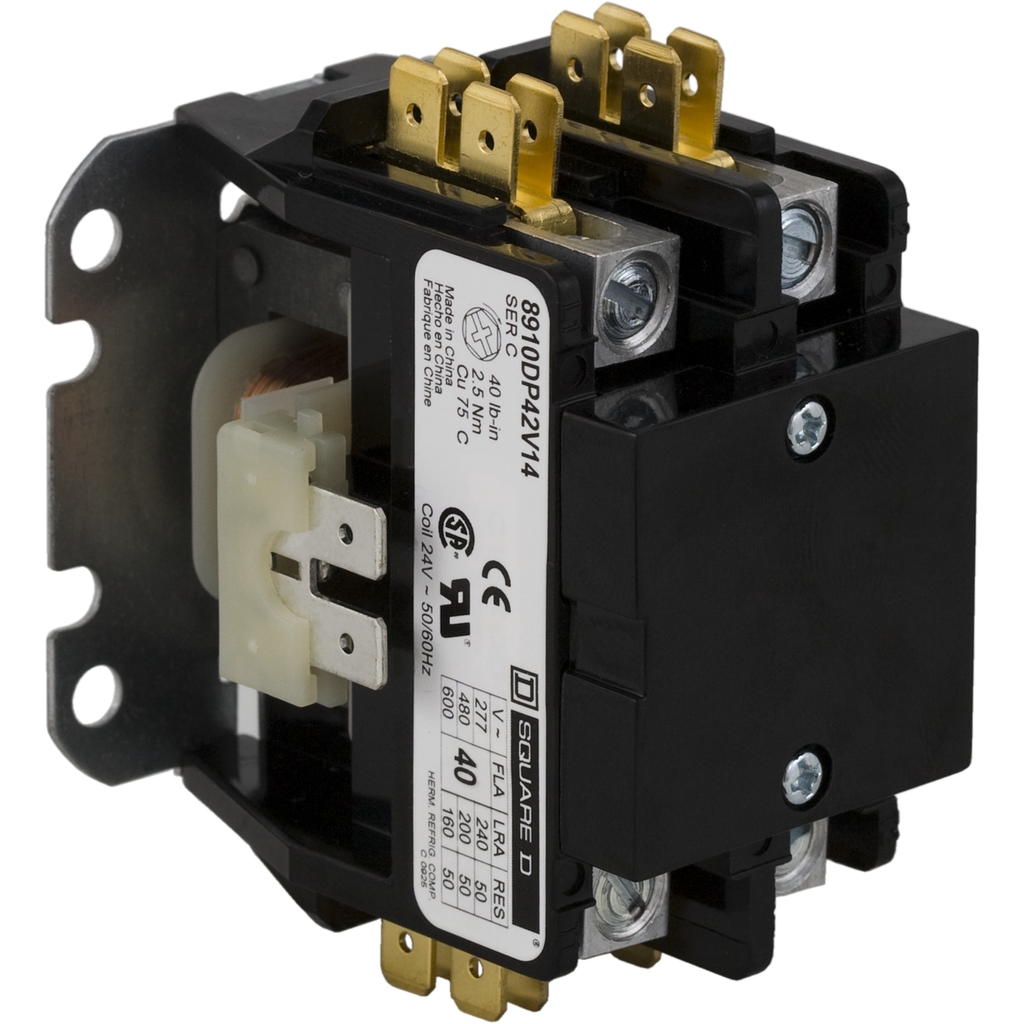

Contactor, Definite Purpose, 40A, 1 pole, 24/24VAC 50/60Hz coil, open

CONTACTOR 600VAC 40AMP DP +OPT

SQD8910DP41V14 8910DP41V14 785901233053
75.43 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Contactor, Definite Purpose, 40A, 1 pole, 24/24VAC 50/60Hz coil, open-1
  • Country of Origin: China
  • Warranty Length: 18 mth
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.
  • UC Control Circuit Voltage
    • 24 V AC 50/60 Hz
  • Locked Rotor Rated Current
    • 240 A 277 V AC
    • 200 A 460 V AC
    • 160 A 575 V AC
  • Maximum Horse Power Rating
    • 2-2 hp 115 V AC, 1 phase
    • 5-5 hp 230 V AC, 1 phase
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 600 V AC
  • Important Information Attributes
    • B2B Bullet Point 1 : Electrical systems protection from overloads and short circuits
    • B2B Bullet Point 2 : Current ranging from 20A to 90A
    • B2B Bullet Point 3 : Quick connect terminals and binder head screws for easy wiring
    • B2B Bullet Point 4 : Compact design and exclusive DIN mounting option
    • B2B Bullet Point 5 : Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Definite Purpose Contactor:Range of Product: DPLine Rated Current: 40AMotor Power Horsepower: 2HP 115VAC, 5HP 230VACNumber of Phases: 1-PhaseNumber of Poles: 1-PoleControl Circuit Voltage: 24 VAC 50/60HzEnclosure Rating: OpenMounting: PanelSystem Voltage: 600VACLocked Rotor Rated Current: 200A 460 VAC, 160A 575 VAC, 240A 277 VACElectrical Connection: Quick Connect Terminals, Binder Head
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1905
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 231.332 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DP
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Accessories : 9991DPG1
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DP
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=559099&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
