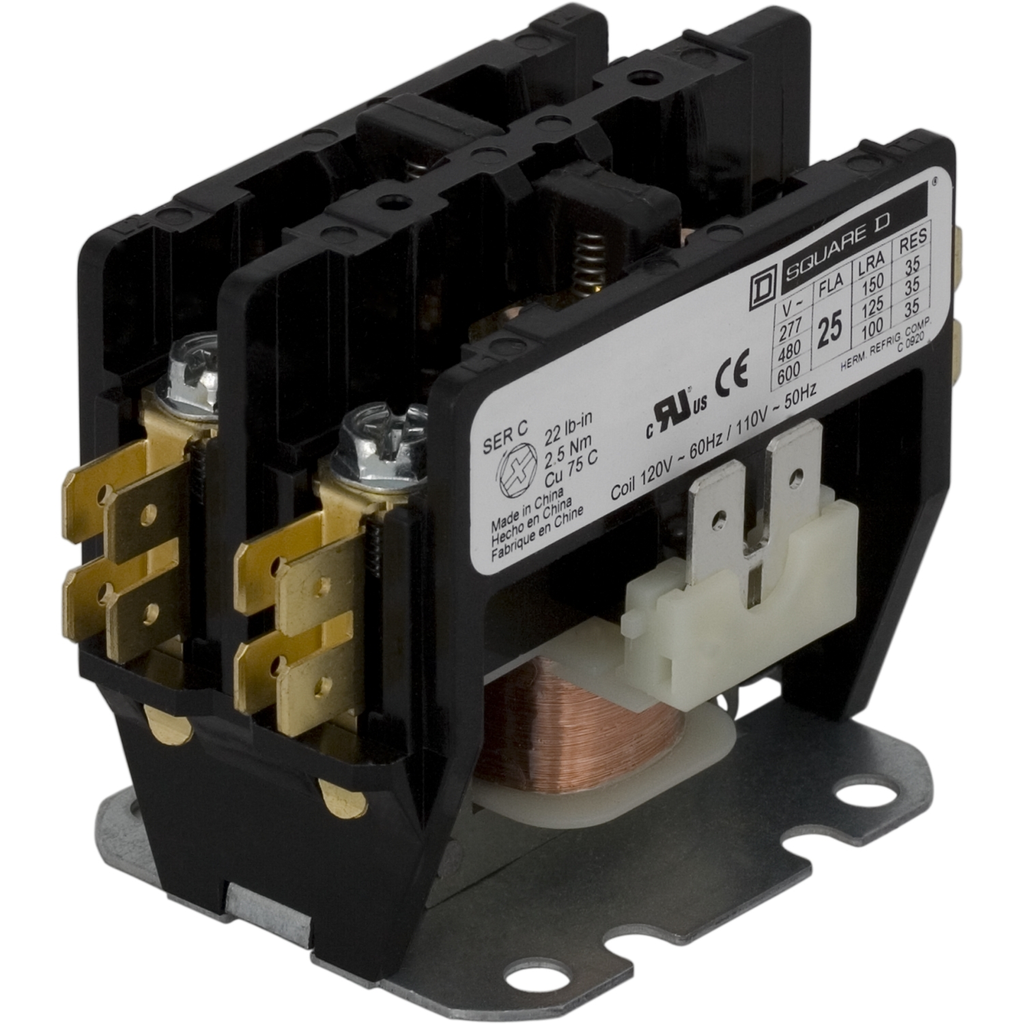

Contactor, Definite Purpose, 30A, 2 pole, 110/120VAC 50/60Hz coil, open

CONTACTOR 2P 30A

SQD8910DP32V02 8910DP32V02 785901073338
83.07 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Contactor, Definite Purpose, 30A, 2 pole, 110/120VAC 50/60Hz coil, open-2
  • Warranty Length: 18 mth
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
QTY
  • Product Description
  • Specifications
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
  • Complementary Attributes
    • Locked Rotor Rated Current : 125 A 460 V AC, 125 A 460 V AC, 125 A 460 V AC, 100 A 575 V AC, 100 A 575 V AC, 100 A 575 V AC, 150 A 277 V AC, 150 A 277 V AC, 150 A 277 V AC
    • Maximum Horse Power Rating : 2-2 hp 115 V AC, 1 phase, 2-2 hp 115 V AC, 1 phase, 2-2 hp 115 V AC, 1 phase, 2-2 hp 115 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase
    • UC Control Circuit Voltage : 120 V AC 60 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz, 110 V AC 50 Hz, 110 V AC 50 Hz, 110 V AC 50 Hz
    • UE Rated Operational Voltage : 600 V AC, 600 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Definite Purpose Contactor:Range of Product: DPLine Rated Current: 30AMotor Power Horsepower: 2HP 115VAC, 5HP 230VACNumber of Phases: 1-PhaseNumber of Poles: 2-PoleControl Circuit Voltage: 110 VAC 50Hz, 120 VAC 60HzEnclosure Rating: OpenMounting: PanelSystem Voltage: 600VACLocked Rotor Rated Current: 125A 460 VAC, 100A 575 VAC, 150A 277 VACElectrical Connection: Quick Connect Terminals, Binder Head
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 272.155 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DP
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DP
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
