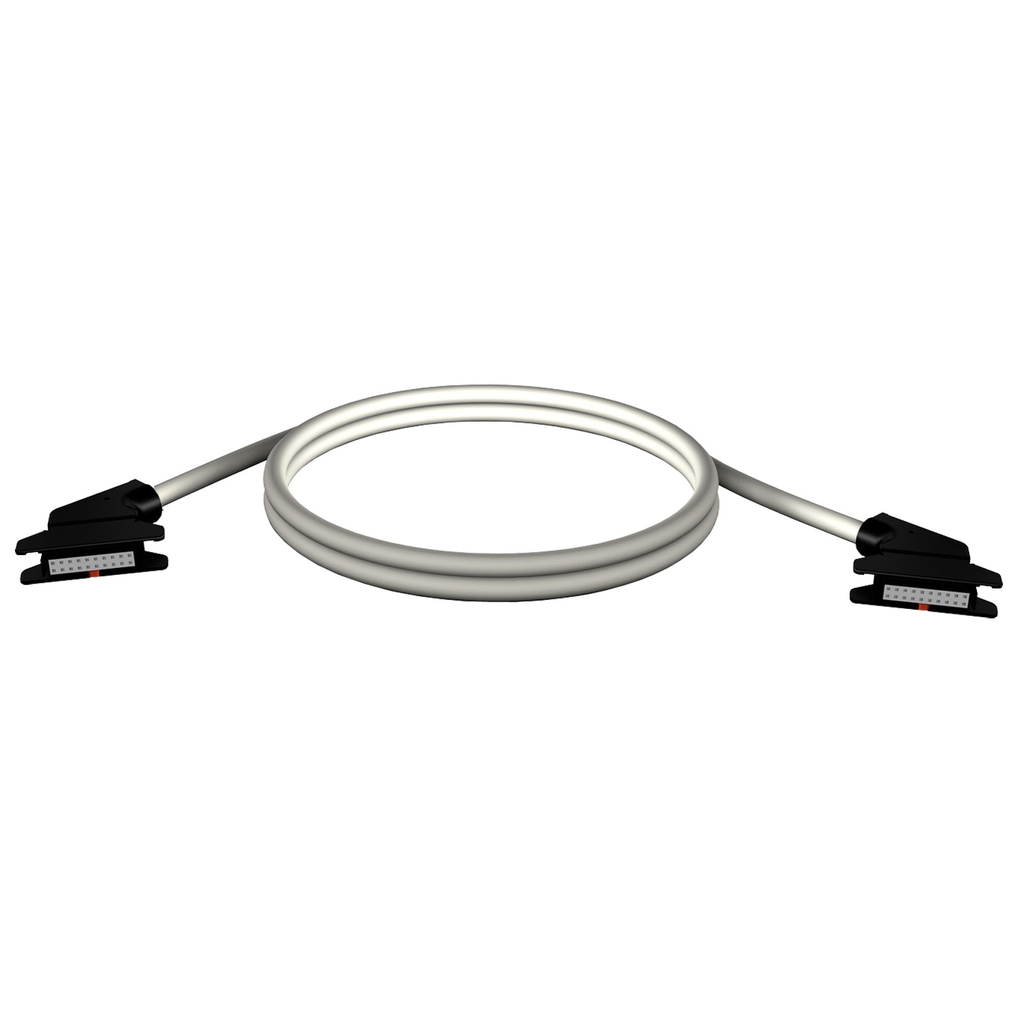

connecting cable - Modicon Premium - 1 m - for sub-base ABE7H16R20

CABLE CONN. 1M

SQDTSXCDP103 TSXCDP103 3389110647761
121.30 / EA
http://schema.org/OutOfStock
Mayer-DDS-connecting cable - Modicon Premium - 1 m - for sub-base ABE7H16R20-1
  • Cable Length: 1 m
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cable Length : 1 m
  • Important Information Attributes
    • Electrical Connection : 1 connector HE10, 20 ways module side, 1 connector HE10, 20 ways PLC side
    • Carbon Footprint Of The Distribution Phase A4 : 0.08008877077758912, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.4329339842347783
    • Carbon Footprint Of The Installation Phase A5 : 0.3246769661591741, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.422441254832351
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.1482067149677826
    • Medium Desc : connecting cable - Modicon Premium - 1 m - for sub-base ABE7H16R20
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Awg Gauge : AWG 22
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range Of Product : Modicon Premium
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Wire Section : 0.324 mm²
    • Accessory Separate Part Category : connection accessories
    • Accessory Separate Part Destination : sub-base ABE7H16R20
    • Accessory Separate Part Type : connecting cable
    • Accessory Separate Part Designation : connecting cable
    • Pep Code : ENVPEP1312013_V2
    • Database Version : 2024-01
    • Pep Verification Date : 2026-01-11
    • Pcr Version : PCR-4-ed4-2021 09 06
    • Psr Version : PSR-0001-ed4-EN-2022 11 16
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : To transmit encoder signals over a distance of 1 meter during 10 years at a 100% use rate.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Germany, DE
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; China, CN
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
  • Environment Attributes Main
    • Product Compatibility : TSXCTY2A, TSXCFY21, TSXCTY2C, TSXCTY4A, TSXCCY1128, TSXCFY11, TSXCAY
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 3.4083476909716754
    • Environmental Disclosure : ENVPEP1312013_V2
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1312013_V2
    • Pep Verification Date : 2026-01-11
    • Pcr Version : PCR-4-ed4-2021 09 06
    • Psr Version : PSR-0001-ed4-EN-2022 11 16
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Modicon Premium
  • ETIM
    • ETIM 8 : EC000237
    • ETIM 9 : EC000237
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Tunisia, United States
