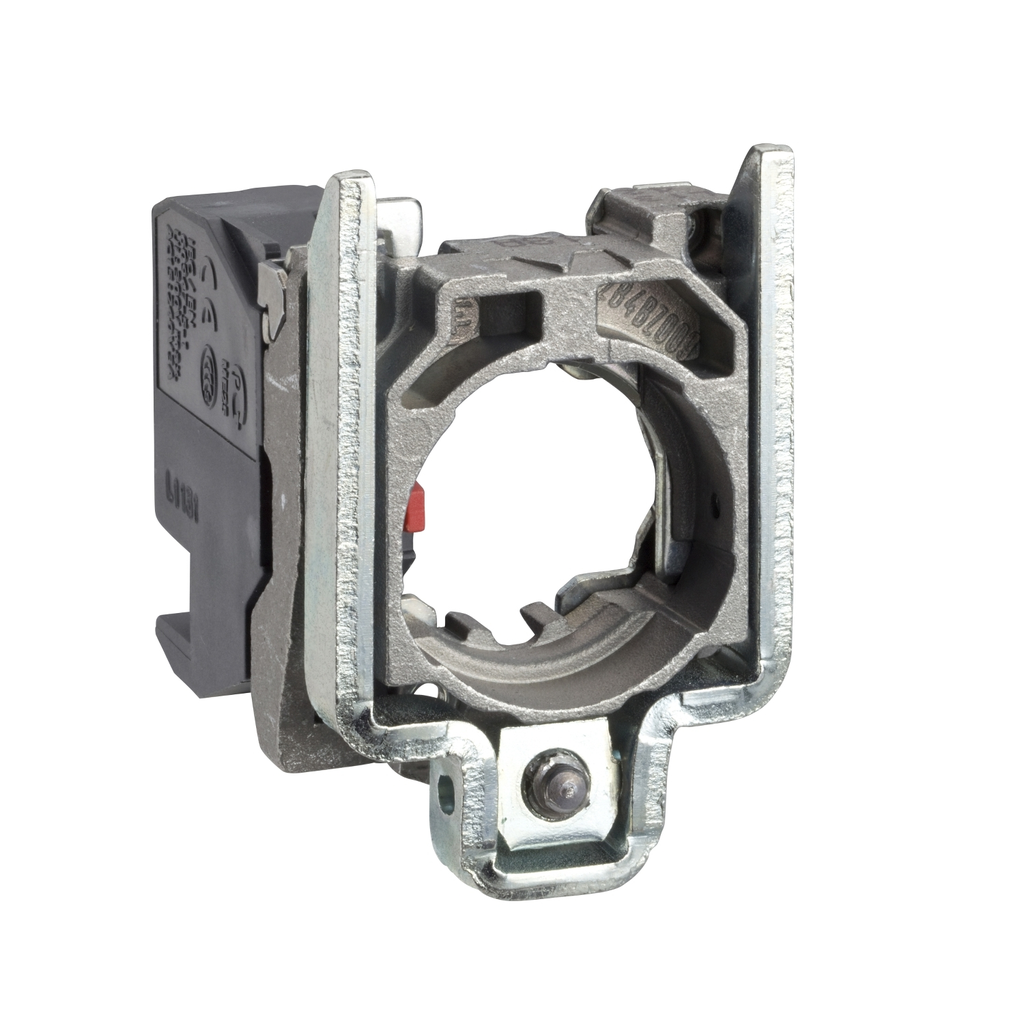

Complete body/contact assembly, Harmony XB4, single contact block with body/fixing collar 1NC plug in connector

Complete body/contact assembly, Harmony XB4, single contact block with body/fixing collar 1NC plug in connector

SQDZB4BZ1024 ZB4BZ1024 3389110889444
24.92 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete body/contact assembly, Harmony XB4, single contact block with body/fixing collar 1NC plug in connector-1
  • Head Type: Standard
  • Operating Force: 2 N
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 37 mm
    • Cad Overall Height : 47 mm
    • Cad Overall Width : 30 mm
  • Complementary Attributes
    • IE Rated Operational Current : 3 A 240 V, AC-15, A300 IEC 60947-5-1, 6 A 120 V, AC-15, A300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    • UI Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
  • Important Information Attributes
    • Customizable : no, 0
    • Electrical Durability : 10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    • Operating Travel : 1.5 mm NC changing electrical state), 4.3 mm total travel)
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • IE Rated Operational Current : 3 A 240 V, AC-15, A300 IEC 60947-5-1, 6 A 120 V, AC-15, A300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.0065385528, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0632443654
    • Carbon Footprint Of The Installation Phase A5 : 0.0100284698, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.354400949
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.026093662
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308035EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Average Percentage Of Recycled Metal Content : 16 %
    • Average Percentage Of Recycled Plastic Content : 23 %
    • Compatibility Code : ZB4
    • Contact Block Type : single
    • Contacts Usage : standard contacts
    • Device Short Name : ZB4
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Operating Force : 2 N NC changing electrical state
    • Package Weight Lbs : 50.000 g
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete body/contact assembly
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Short Circuit Protection : 4 A cartridge fuse gG IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Terminals Description ISO N 1 : (11-12)NC
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Connections Terminals : plug-in connector
    • Pep Code : ENVPEP2308035_V1-EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : SU-JIN NG
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 16 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.4603059989
    • Circularity Profile : ENVEOLI2308035EN
    • Environmental Disclosure : ENVPEP2308035_V1-EN
    • IP Degree Of Protection : IP20 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308035_V1-EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete body/contact assembly
    • Range Of Product : Harmony XB4
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
