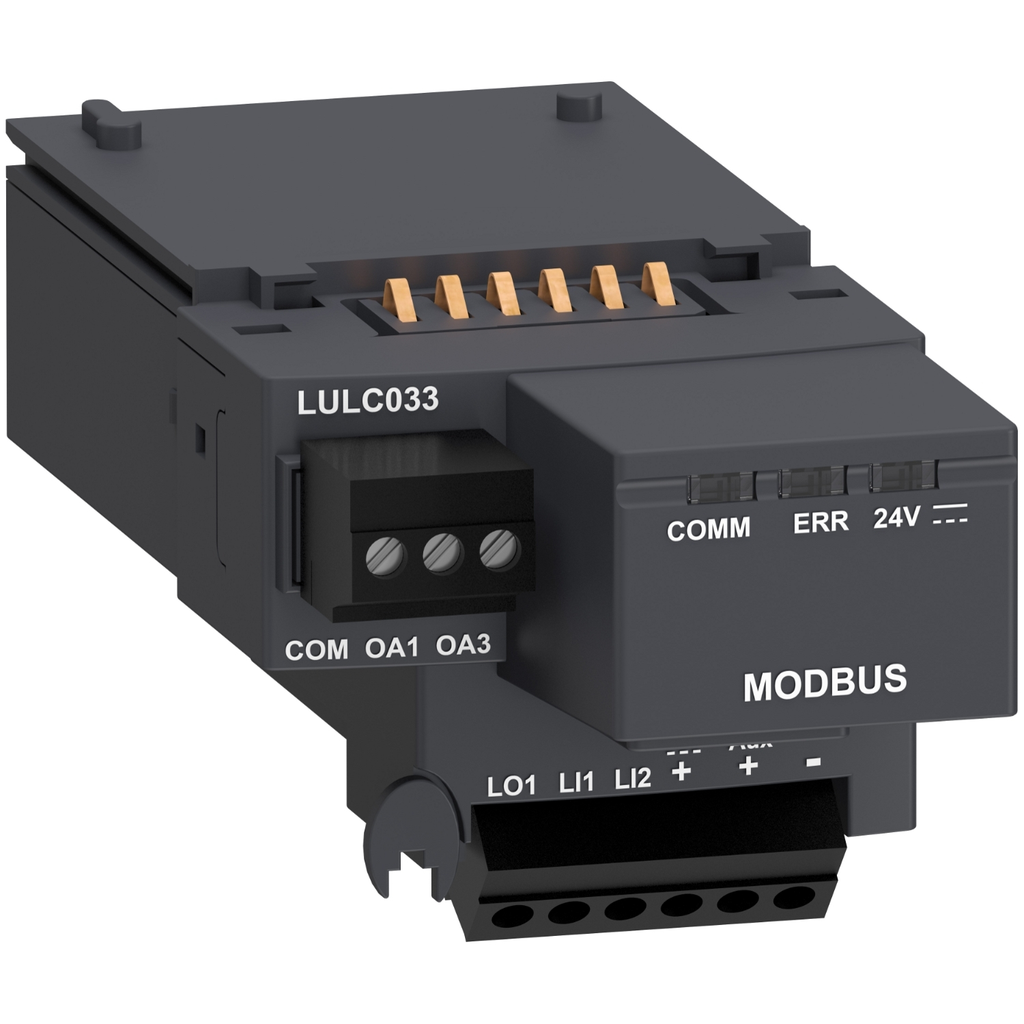

TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
  • Product Description
  • Specifications
TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
  • Warranty : 18 months
  • Number Of Inputs : 2
  • Logic Input : positive 24 V DC - 7 mA
  • Product Compatibility : LUCL || LUCC || LUCB || LUCM || LUCA || LUCD
  • Output Current : <= 500 mA
  • Local Signalling : 3 LEDs front panel
  • Device Short Name : LUL
  • Tightening Torque : 0.2-0.25 N.m 2.5 mm
  • Ip Degree Of Protection : IP20 conforming to IEC 60529
  • Ambient Air Temperature For Operation : -25-55 °C
  • Connections - Terminals : screw clamp terminals 1 0.14-1 mm²flexible without cable end || screw clamp terminals 1 0.14-1 mm²rigid without cable end || screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || screw clamp terminals 1 0.25-1 mm²flexible with cable end || screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
  • Compatibility Code : LUL
  • Number Of Outputs : 2 dedicated to starter-controller coil operation || 1
  • Connection Pitch : 3.81 mm
  • Device Application : communication
  • Input Type : resistive
  • Mounting Mode : plug-in
  • Transmission Rate : 19200 bit/s
  • Mounting Location : front side
  • Response Time : 10 ms +/- 30 % change to state 0 || 10 ms +/- 30 % change to state 1
  • Product Or Component Type : communication module
  • Range : TeSys
  • Return Time : 30 ms
  • [Us] Rated Supply Voltage : 24 V DC
  • Function Available : communication module
  • Cable Connector Type : RJ45 front panel
  • Range Of Product : TeSys U
  • Protection Type : gG fuse 1 A
  • Bus Type : Modbus
  • Switching Current Capacity : 0.5 mA 24 V
  • Associated Cable Type : AWG 26...AWG 16
  • Addressing : 0...31
  • Communication Port Protocol : Modbus RTU
  • Net Weight : 0.08 kg
  • Range Compatibility : TeSys U LUB non reversing power base || TeSys U LU2B reversing power base
  • Physical Interface : RS485 multidrop
