Communication module, Modicon M580, IEC 61850, coated

COMMUNICATION MODULE, MODICON

SQDBMENOP0300C BMENOP0300C 3606481285997
4380.37 / EA
http://schema.org/OutOfStock

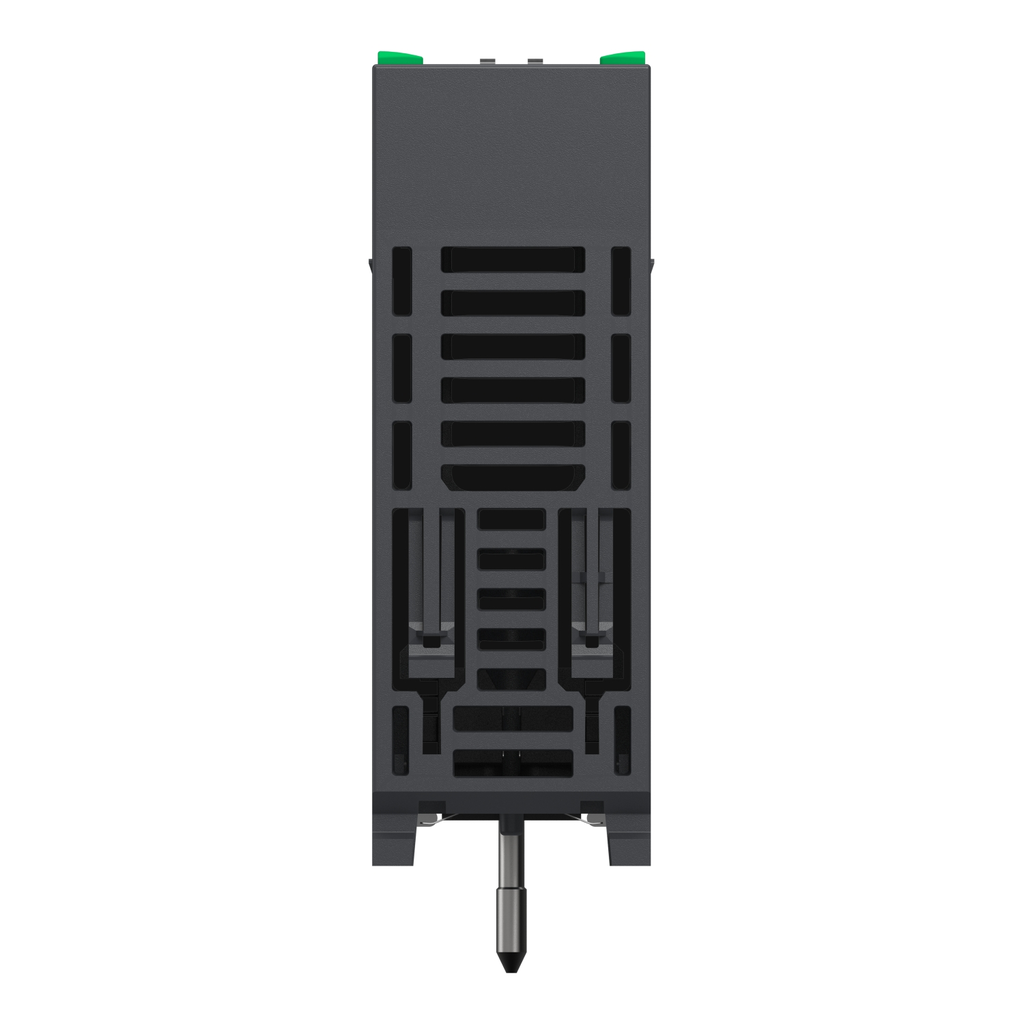

Mayer-DDS-Communication module, Modicon M580, IEC 61850, coated-2
  • Country of Origin: USA
  • Net Weight: 0.24 kg
  • Weight: 0.24 kg
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This M580 module provides interfaces for IEC 61850 communication It supports communication as IEC 61850 client, IEC 61850 server, GOOSE publisher, GOOSE subscriber, and Modbus TCP server and client. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The BMENOP0300 module has three external Ethernet ports, whose IP addresses can be configured. The maximum number of BMENOP0300 modules that can be mounted on a local rack is determined by the type of CPU. It weighs 0.345kg. It provides high network availability. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. it is compatible with the entire range of M580 CPUs, in both standalone and redundant configuration. The module is delivered in 1 packing unit. The BMENOP0300 IEC 61850 module is installed on the local Ethernet backplane of a M580 system. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This M580 module provides interfaces for IEC 61850 communication It supports communication as IEC 61850 client, IEC 61850 server, GOOSE publisher, GOOSE subscriber, and Modbus TCP server and client. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The BMENOP0300 module has three external Ethernet ports, whose IP addresses can be configured. The maximum number of BMENOP0300 modules that can be mounted on a local rack is determined by the type of CPU. It weighs 0.345kg. It provides high network availability. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. it is compatible with the entire range of M580 CPUs, in both standalone and redundant configuration. The module is delivered in 1 packing unit. The BMENOP0300 IEC 61850 module is installed on the local Ethernet backplane of a M580 system. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2402021EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2402021EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 202.5656144141
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5 interface type 1 and type 2 || EN/IEC 61850-3 location G || EN/IEC 60079-0
    • Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
    • Environmental Characteristic : gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 0-95 % without condensation
    • Protective Treatment : conformal coating
    • Operating Altitude : <= 6561.68 ft (2000 m)
  • Specifications
    • Country of Origin : United States
    • Weight : 0.24 kg
    • Range Of Product : Modicon M580
    • Product Or Component Type : communication module
  • Complementary
    • Physical Interface : 3 Ethernet 10/100BASE-TX
    • Transmission Support Medium : ethernet cable
    • Transmission Rate : 10 Mbit/s || 100 Mbit/s
    • Net Weight : 0.24 kg
    • Current Consumption : 1250 mA 3.3 V DC internal
    • Communication Service : MMS messaging client IEC 61850 || MMS messaging server IEC 61850 || goose IEC 61850 || Modbus TCP messaging || RSTP support || IP forwarding
    • Module Format : standard
    • Product Compatibility : M580 PAC
