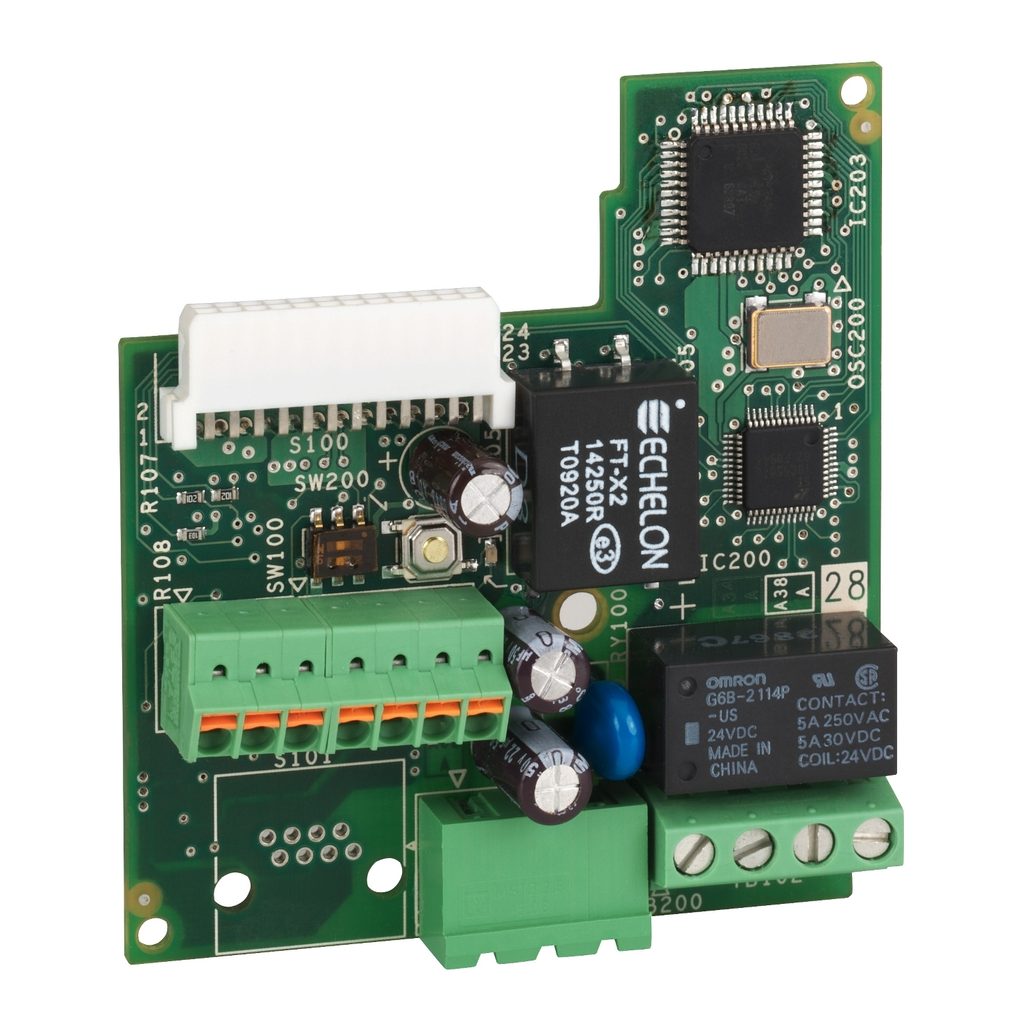

This LonWorks communication card is an option for ATV212 variable speed drives. This communication card provides a four-screw terminal block for connection to the LonWorks network. It weighs 0.05kg It is Installed in place of the standard control board that comes mounted in the Altivar 212 drive. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

• Input Type
• multifunction programmable logic input F < 24 V DC 5 mA sink or source
• multifunction programmable contact input R < 24 V DC 5 mA sink or source
• multifunction programmable analog input VIB 10 V DC 30 kOhm
• Electrical Connection
• screw terminal NETA, NETB LonWorks transmission/reception data
• screw terminal SHLD LonWorks communication shield
• screw terminal G/E grounding terminal
• spring terminal F programmable logic input
• spring terminal R programmable contact input
• spring terminal VIB multifunction programmable analog input
• spring terminal CC control circuit equipotential
• spring terminal P24 power supply output
• screw terminal FLA, FLB, FLC multifunction programmable relay output
• Output Type
• multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1
• multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4
• multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A
• power supply output P24 24 V DC 50 mA
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• HTML Description : LonWorks Communication Card for ATV212Equipped with a removable 4-way screw terminal blockThis card replaces the standard control card, eliminating the other factory supplied communication protocols
• Device Type : Variable speed drive - VSD option & accessory
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1851
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Package Weight Lbs : 183.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication card
• Returnability : Yes
• Sustainable Packaging : No
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : communication card
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=150083188&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
