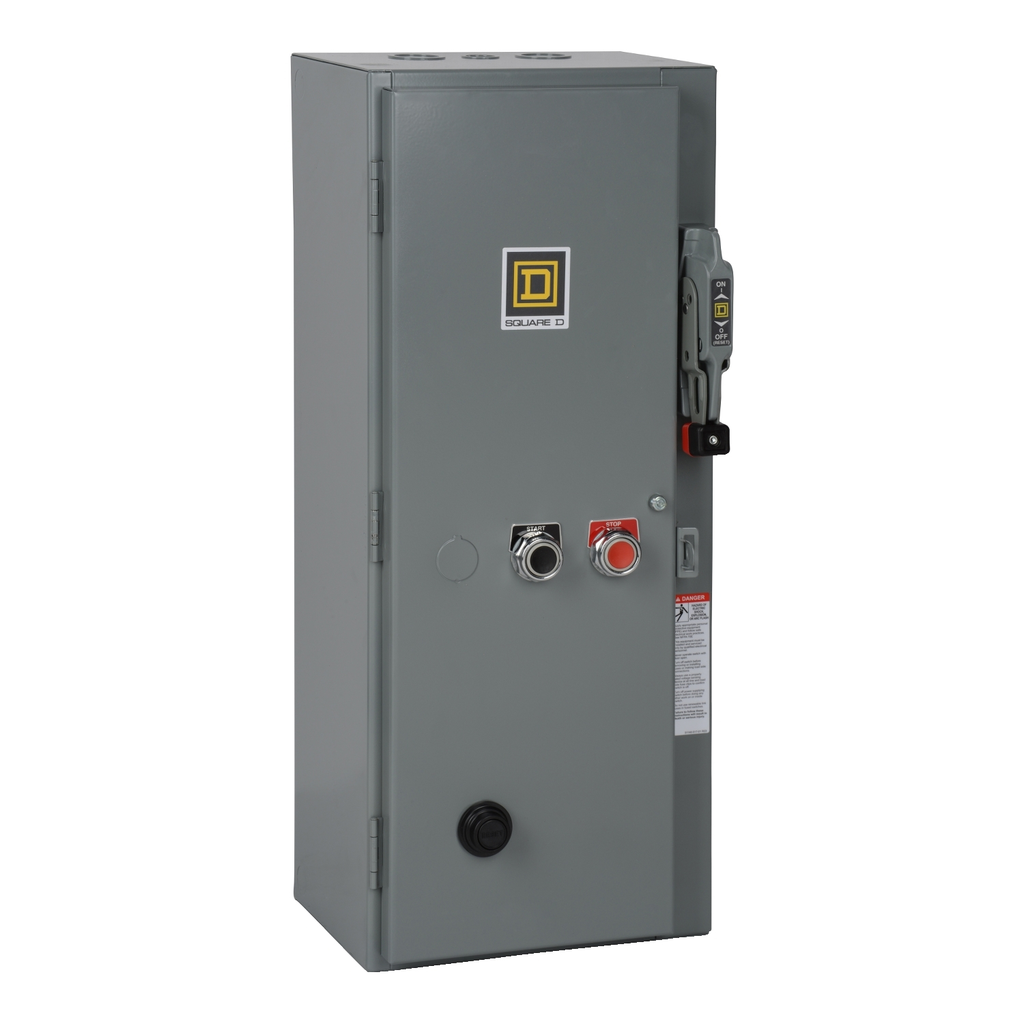

NEMA combination starter, Type S, 60A fusible disconnect, Size 2, 45A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]

COMBO STARTER 600VAC 45A NEMA

SQD8538SDG14V02S 8538SDG14V02S 785901515531
2386.82 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA combination starter, Type S, 60A fusible disconnect, Size 2, 45A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]-1
  • Warranty Length: 18 mth
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 25 HP at 480 and 600 VAC poly phase. Combination starter has 60 ampere Class H fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 22.50 inches tall, 10.50 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 25 HP at 480 and 600 VAC poly phase. Combination starter has 60 ampere Class H fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 22.50 inches tall, 10.50 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Horse Power Rating : 25-25 hp 460 V AC, 3 phase, 25-25 hp 460 V AC, 3 phase, 25-25 hp 460 V AC, 3 phase, 25-25 hp 460 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase
    • UC Control Circuit Voltage : 110 V AC 50 Hz, 110 V AC 50 Hz, 110 V AC 50 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz
    • UE Rated Operational Voltage : 600 V AC, 600 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Disconnector Device Type : fusible disconnect switch H, 60 A, fusible disconnect switch H, 60 A, fusible disconnect switch H, 60 A
    • Thermal Overload Type : melting alloy 3, melting alloy 3
    • Carbon Footprint Of The Distribution Phase A4 : 5.8658701561356414, 6 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 30 kg CO2 eq., 29.816539680244116
    • Carbon Footprint Of The Installation Phase A5 : 2.9654944989841274, 3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 119 kg CO2 eq., 118.9810109545914
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 030 kg CO2 eq., 1030.44868887239
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • HTML Description : Type S Full Voltage Starter with Disconnect SwitchNEMA Size: Size 2Degree of Protection: NEMA 1 General PurposeControl Circuit Voltage: 110V AC 50 Hz 120V AC 60 HzPoles Description: 3-PolesNumber of Phases: 3-PhaseControl Circuit: Separate Control CircuitMotor Starter Type: Non-Reversing
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2507019EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Control Type : no control units
    • Energy Efficiency Optimized : False
    • Local Signalling : no indicator
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 20.298 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 1 188 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2507019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U and 3 pole 1 non-reversing combination motor controller with a fussed disconnect and solid state overload, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Nema Degree Of Protection : NEMA 1 painted sheet steel with external reset, NEMA 1 painted sheet steel with external reset, NEMA 1 painted sheet steel with external reset
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1188.0776041623453
    • Circularity Profile : ENVEOLI2507019EN
    • Environmental Disclosure : ENVPEP2507019EN
    • EU ROHS Directive : Compliant with Exemptions
    • Nema Size : 2
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2507019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Compliance : TAA
