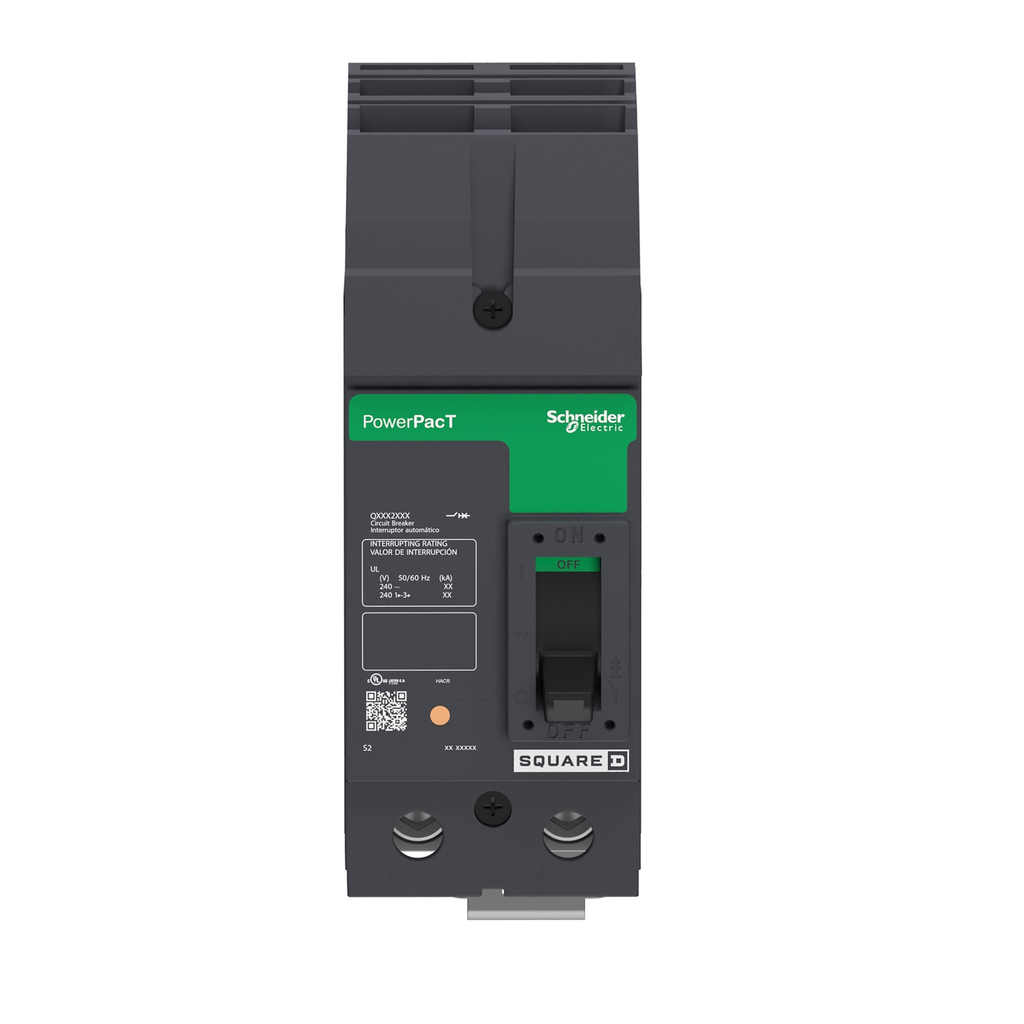

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL, CSA, NOM
• Complementary Attributes
• UE Rated Operational Voltage : 240 V AC 50/60 Hz UL
• UIMP Rated Impulse Withstand Voltage : 8 kV UL
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : I-Line connection, line, lugs, load
• Mechanical Durability : 1000 cycles loaded, 5000 cycles no load
• Carbon Footprint Of The Distribution Phase A4 : 0.6227682622165882, 0.6 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 3.637202744852967
• Carbon Footprint Of The Installation Phase A5 : 0.41629631278000545, 0.4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 15 kg CO2 eq., 14.769180709888461
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 27 kg CO2 eq., 27.301213918935925
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Continuous Current Rating : 80 %
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Local Signalling : 1 trip indicator green)
• Magnetic Hold Current : 1200 A
• Magnetic Tripping Current : 2400-2400 A
• Mounting Mode : I-Line bracket)
• Package Weight Lbs : 2.155 kg
• Phase Connection : BC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Range : PowerPact
• Returnability : Yes
• Sustainable Packaging : No
• Tightening Torque : 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
• Total Lifecycle Carbon Footprint : 47 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2311048_V2
• Pep Verification Date : 2025-07-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 46.746661948673946
• Environmental Disclosure : ENVPEP2311048_V2
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2311048_V2
• Pep Verification Date : 2025-07-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : circuit breaker
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
