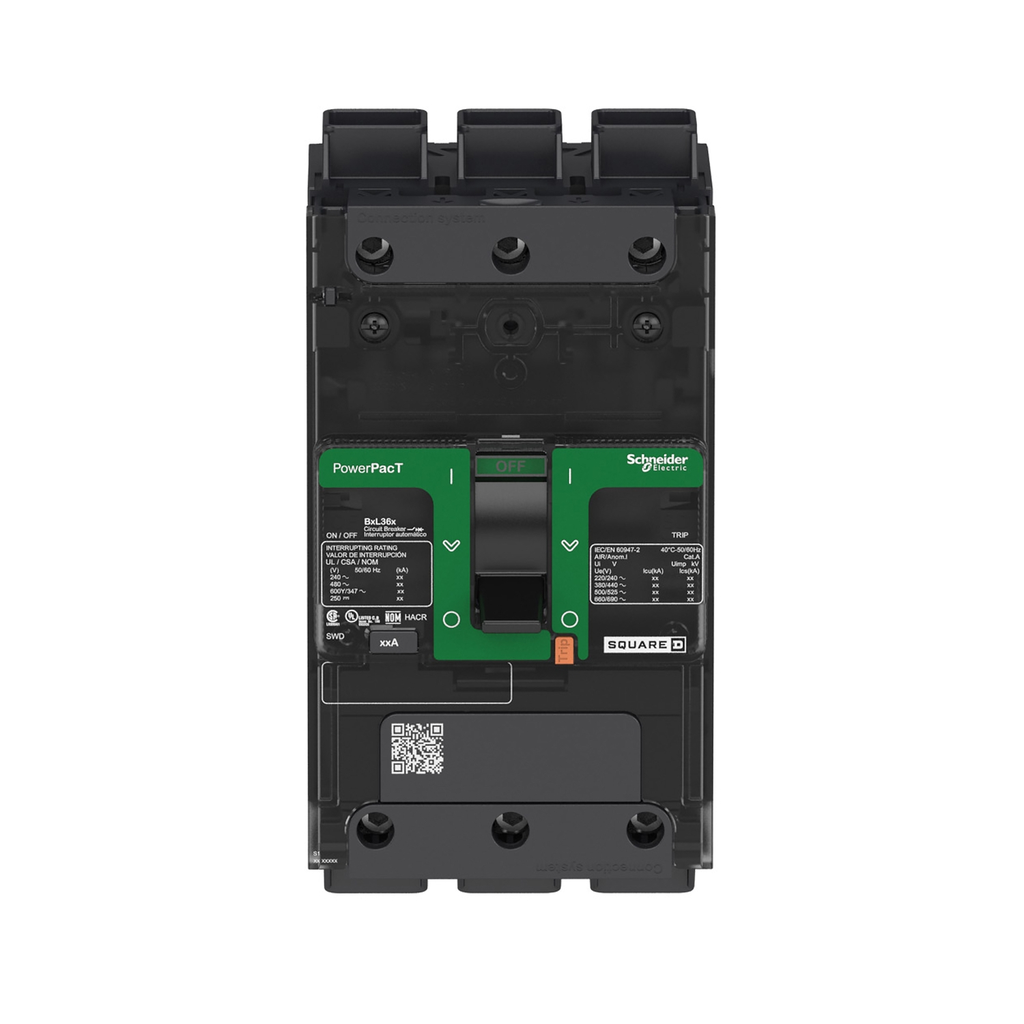

Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%, control wire ON end

Name: Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%, control wire ON end
Brand: Mayer Electric Supply
SKU: SQDBJL36015LU
Price: 1211.95 USD
Availability: OutOfStock

MOLDED CASE CIRCUIT BRKR 600Y/

SQDBJL36015LU BJL36015LU 3606481149657

1211.95 / EA

http://schema.org/OutOfStock

Mayer-DDS-Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%, control wire ON end-2

Country of Origin: USA
Depth: 3.15 in
Height: 5.39 in
Width: 3.19 in

PowerPact B circuit breakers – efficiency that clicks.

QTY

Features
Specifications

Uimp Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Mounting Mode

clip-on 35 mm symmetrical DIN rail)
by screws plate)

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Mechanical Durability

15000 cycles IEC 947-1 Annex K ed 5.2

Carbon Footprint Of The Installation Phase A5

0.1925936884337516
0.2 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

1 kg CO2 eq.
1.124234495845757

Standards

NMX J-266
EN/IEC 60947-5-1
CSA C22.2 No 5
EN/IEC 60947-2
NEMA AB1
GB 14048.2
UL 489

Ue Rated Operational Voltage

690 V AC 50/60 Hz UL 489

Ui Rated Insulation Voltage

800 V IEC 60947-2

Ip Degree Of Protection

front cover IP40 IEC 60529

Electrical Connection

Everlink lug, line
Everlink lug, load

Carbon Footprint Of The Manufacturing Phase A1 To A3

4 kg CO2 eq.
3.533024553498018

Electrical Durability

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Ics Rated Service Breaking Capacity

100 kA 220...240 V AC 50/60 Hz IEC 60947-2
25 kA 500...525 V AC 50/60 Hz IEC 60947

Market Segmentation

Commercial
Industrial

Persona Type Names

Contractor
Original Equipment Manufacturer
OEM - Control Panelbuilder
Panel Builder

Carbon Footprint Of The Use Phase B2 B3 B4 B6

146 kg CO2 eq.
146.4027596402939

Number Of Slots

1 auxiliary switch OF plug-in)
1 voltage release MN or MX plug-in)
1 voltage release MN o

Persona Type Ids

Carbon Footprint Of The Distribution Phase A4

0
0 kg CO2 eq.

Tightening Torque

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4)
9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Operating Altitude

6561.68 ft (2000 m) without derating
5000 m with derating

Suitability For Isolation

yes IEC 60947-2

Trip Unit Technology

thermal-magneticTM-D,

Market Segmentation Id

COMMERCIAL
INDUSTRIAL

Color

Gray RAL 7016)

Awg Gauge

AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
AWG 14...

Local Signalling

presence of auxiliary contacts flag green)

Product Certifications

Physical Attributes

Wire Stripping Length : 20 mm

Complementary Attributes

Line Rated Current : 15-15 A

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-04-09
Device Type : LV equipment - Low voltage circuit breaker
Serviceability : No
Traceability : Yes
Field Service Division : PPIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 3.53302455349802
Distribution Carbon Footprint : 0
Installation Carbon Footprint : 0.192593688433752
Use Carbon Footprint : 146.402759640294
End Of Life Carbon Footprint : 1.12423449584576
Legacy Weee Scope : In
Weee Product Category : 4
Scope Perimeter : At least in Europe
Eoli Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope : Yes
Rohs Eur Status : Compliant with Exemptions
Rohs Eur Conformity Date : 1909
Rohs Eur Full Compliance Status : Compliant with Exemptions
China Rohs In Scope : No
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : Yes
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
Wd Status : 1 - GSC certified
Tier Id : 1
Tier : 1
Function Option Id : STANDARD
Function Option : Standard
Circuit Breaker Application : HACR rated
Connection Pitch : 27 mm
Continuous Current Rating : 80 %
Control Type : toggle
Device Application : distribution
Device Short Name : BJ 015
Halogen Free Status : Halogen free product
Network Frequency : 50/60 Hz
Package Weight Lbs : 1.339 kg
Poles Description : 3P
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : circuit breaker
Protected Poles Description : 3t
Quality Labels : CE
Quantity Per Set : set of 1
Range : PowerPact
Returnability : No
Sustainable Packaging : Yes
Total Lifecycle Carbon Footprint : 151 kg CO2 eq.
Trip Unit Name : TM-D
Utilisation Category : category A
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Carbon Footprint Kg Co2 Eq Total Life Cycle : 151.25261237807143

General Attributes

Product Or Component Type : circuit breaker

Environment Attributes

Take Back : No
Halogene Performance : Halogen free product
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
Mercury Free : Yes
Carbon Footprint : 151.252612378071
9 Mm Pitches : 9
Ambient Air Temperature For Operation : -25-70 °C
Ambient Air Temperature For Storage : -50-85 °C
Environmental Disclosure : ENVPEP2311047_V2
Eu Rohs Directive : Compliant with Exemptions
Halogen Content Performance : Halogen free product
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : Yes
Reach Regulation : Reference contains Substances of Very High Concern above the threshold

Specifications

Country of Origin : United States
Height : 5.39 in
Width : 3.19 in
Depth : 3.15 in

Circuit breaker, PowerPacT B, 15A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%, control wire ON end

MOLDED CASE CIRCUIT BRKR 600Y/
