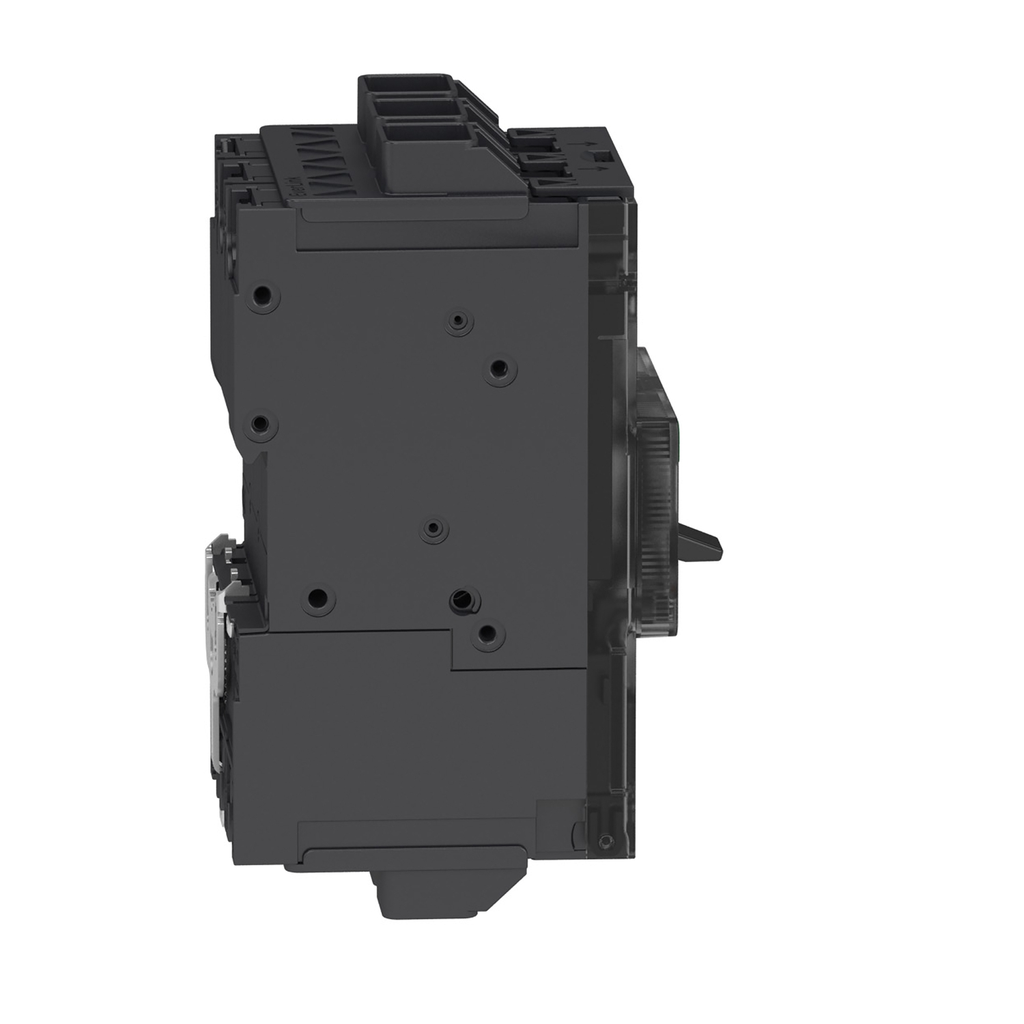

Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%, control wire ON end

MOLDED CASE CIRCUIT BRKR 600Y/

SQDBDL36100LU BDL36100LU 3606481149176
848.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%, control wire ON end-3
  • Country of Origin: USA
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003270_3D-CAD&p_File_name=MCADPP0003270_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003270_3D-CAD&p_File_name=MCADPP0003270_2D-back.dwg
    • https://downlo
  • IP Degree Of Protection
    • front cover IP40 IEC 60529
  • Mounting Mode
    • clip-on 35 mm symmetrical DIN rail)
    • by screws plate)
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Mechanical Durability
    • 15000 cycles IEC 947-1 Annex K ed 5.2
  • Carbon Footprint Of The Installation Phase A5
    • 0.5010153270542921
    • 0.5 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 3 kg CO2 eq.
    • 2.924595910709862
  • Electrical Connection
    • Everlink lug, line
    • Everlink lug, load
  • ICS Rated Service Breaking Capacity
    • 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
    • 14 kA 500...525 V AC 50/60 Hz IEC 60947-2
    • 14
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 9 kg CO2 eq.
    • 9.19084870618973
  • UI Rated Insulation Voltage
    • 800 V IEC 60947-2
  • Accessories
    • LV426907
    • LV426950
    • LV426963
    • LV426974
    • 9421LB4
  • Electrical Durability
    • 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 228 kg CO2 eq.
    • 227.51011599113272
  • Number Of Slots
    • 1 auxiliary switch OF plug-in)
    • 1 voltage release MN or MX plug-in)
    • 1 voltage release MN o
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
  • Carbon Footprint Of The Distribution Phase A4
    • 0
    • 0 kg CO2 eq.
  • Tightening Torque
    • 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4)
    • 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
  • Operating Altitude
    • 6561.68 ft (2000 m) without derating
    • 5000 m with derating
  • Suitability For Isolation
    • yes IEC 60947-2
  • AWG Gauge
    • AWG 6...AWG 2/0 fine stranded aluminium/copper
    • AWG 14...AWG 3/0 rigid or stranded aluminium/copper
    • AWG 14...
  • Trip Unit Technology
    • thermal-magneticTM-D,
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7016)
  • Local Signalling
    • presence of auxiliary contacts flag green)
  • UE Rated Operational Voltage
    • 525 V AC 50/60 Hz UL 489
  • Product Certifications
    • UL
    • IEC
    • CCC
    • EAC
    • CSA
    • NOM
  • UIMP Rated Impulse Withstand Voltage
    • 8 kV IEC 60947-2
  • Important Information Attributes
    • B2B Bullet Point 1 : Available in 1, 2, 3, and 4 pole for unit mounts
    • B2B Bullet Point 2 : Available in 1, 2, and 3 pole for I-Line
    • B2B Bullet Point 3 : Dual rated AC/DC with 3 levels of breaking capacity
    • B2B Bullet Point 4 : A wide range of accessories, auxiliaries, and lug connections available
    • B2B Bullet Point 5 : UL, CSA, NOM, IEC, CCC certified, and CE marked
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-17
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 9.19084870618973
    • Distribution Carbon Footprint : 0
    • Installation Carbon Footprint : 0.5010153270542921
    • Use Carbon Footprint : 227.51011599113272
    • End Of Life Carbon Footprint : 2.924595910709862
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1909
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Continuous Current Rating : 80 %
    • Device Short Name : BD 100
    • Halogen Free Status : Halogen free product
    • Package Weight Lbs : 1.179 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : circuit breaker
    • Protected Poles Description : 3t
    • Quality Labels : CE
    • Range : PowerPact
    • Returnability : No
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 240 kg CO2 eq.
    • Trip Unit Name : TM-D
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 240.1265759350866
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2311047_V2
    • Pep Verification Date : 2025-05-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 1770
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 473.03999999999996
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model Installation A5 : No energy used
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
    • Recyclability Potential In : 55
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 1.127384210697314
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.08204995096916166
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0005395171532616101
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 1.0369498924969527
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.00784485007793803
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.04222982959436822
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 1.5642743869565945
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -0.027180964103788553
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.41165152206164446
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 1.1751761071443467
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.004627721854391927
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.03829598198073839
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 238.56216371457208
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 9.21789226086729
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.08936380410414141
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 226.33493988398837
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 2.9199677656122844
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -2.900343580680904
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 240.1265759350866
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 9.19084870618973
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.5010153270542921
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 227.51011599113272
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 2.924595910709862
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -2.9386395626616424
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.003963050958666171
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.003928527389299711
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000001283290513266
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00003452477631727386
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000001403985594665
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0010710706551625175
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 5141.4094333283265
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 183.94150986445942
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.6557653437813409
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 4935.040496427725
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 20.771661692360773
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -65.4028988107171
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 5027.085573262866
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 4720.050425344918
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0
    • Ecotoxicity Fresh Water Ctue Installation A5 : 2.2149347668004817
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 295.15498550661925
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 9.665227644528391
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -13.76465414272857
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000942752036481064
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000193059384889735
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000376142154763
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000743981095350281
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000005335414086286
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000155181670205419
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.008743050674090523
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0004830811509065085
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.008259969523184014
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000469925826396703
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00008890720231475369
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000010565980869611
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0003773649615745119
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000354800269874131
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000454154022467923
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 99.68249988251064
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 99.5737733422619
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.09727353624289448
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0114530040058399
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -84.02265350931751
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000135108942540414
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000132407639638872
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000001608799465
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000002685561112544
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000014132989533
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000914238565839372
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000157201899967195
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000087445601720364
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000065098420582
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000068805093509843
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000886106316406
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000049474012641179
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 5.0085296812699465
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.5850706539150083
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0.0019204541201825105
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 4.40442709450096
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.017111478733795562
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 208.76536531005112
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.9903138256384014
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.03282054802543463
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 206.4824786841022
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.2597522522851018
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.9424480309037392
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.13982642344976595
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.00744870973413305
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00013590756824842124
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.13057208613650084
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0016697200108836505
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0018808846867511455
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.8885861949613653
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.05355119805175317
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.8350349969096121
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.3891400240296281
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.113373071896656
    • Net Use Of Fresh Water M3 Distribution A4 : 0
    • Net Use Of Fresh Water M3 Installation A5 : 0.00011774419205183464
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.26652833997218023
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.009120867968740001
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.05660746422966384
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 47.821385754189066
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 12.486954181485451
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.011800482307489037
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 33.644836783510705
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.6777943068854144
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.1037251733115983
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000057725665367682
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000484468499195588
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000321072981216
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000088056991948412
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000004410089551604
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000050338231288753
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.46597234432319895
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0290464388543277
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0003811789751236305
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.431446831953622
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.005097894540125579
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.009075916632372689
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.012160725069196644
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.004117311072573334
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000492257648743701
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.007963998554648341
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000074492865487533
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0009644787907286611
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 1.6422854824736755
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.07912127108065514
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0017889868643454964
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 1.5421611120817489
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.019214112446925752
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.02196752708008206
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.471517008494132
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 16.471517008494132
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 5752.842187889495
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 192.13775287904647
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.7981480439941602
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 5537.048746538199
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 21.85754042825554
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -66.56966623501305
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 611.4327545611693
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.19624301458703
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.14238270021281973
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 602.0082501104747
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.0858787358947655
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.166767424295948
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16.471517008494132
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 16.471517008494132
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5124.937916319833
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 167.4699928559653
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.6557653437813409
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4935.040496427725
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 20.771661692360773
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -65.4028988107171
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.251984973529624
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.251984973529624
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 606.1807695876397
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.9442580410574046
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.14238270021281973
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 602.0082501104747
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.0858787358947655
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.166767424295948
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0014866190423296303
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0014866190423296303
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 16.639543657056993
    • Water Use M3 Eq Manufacturing A1 A3 : 4.865916798361285
    • Water Use M3 Eq Distribution A4 : 0
    • Water Use M3 Eq Installation A5 : 0.0051461598507535145
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 11.435401683027788
    • Water Use M3 Eq End Of Life C1 C4 : 0.33307901581716554
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -2.431190892057671
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Warranty In Months : 18
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=442590199&lang=en-us
    • Take Back : No
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 240.1265759350866
    • 9 MM Pitches : 9
    • Environmental Disclosure : ENVPEP2311047_V2
    • EU ROHS Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2311047_V2
    • Pep Verification Date : 2025-05-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : circuit breaker
  • Specifications
    • Country of Origin : United States
