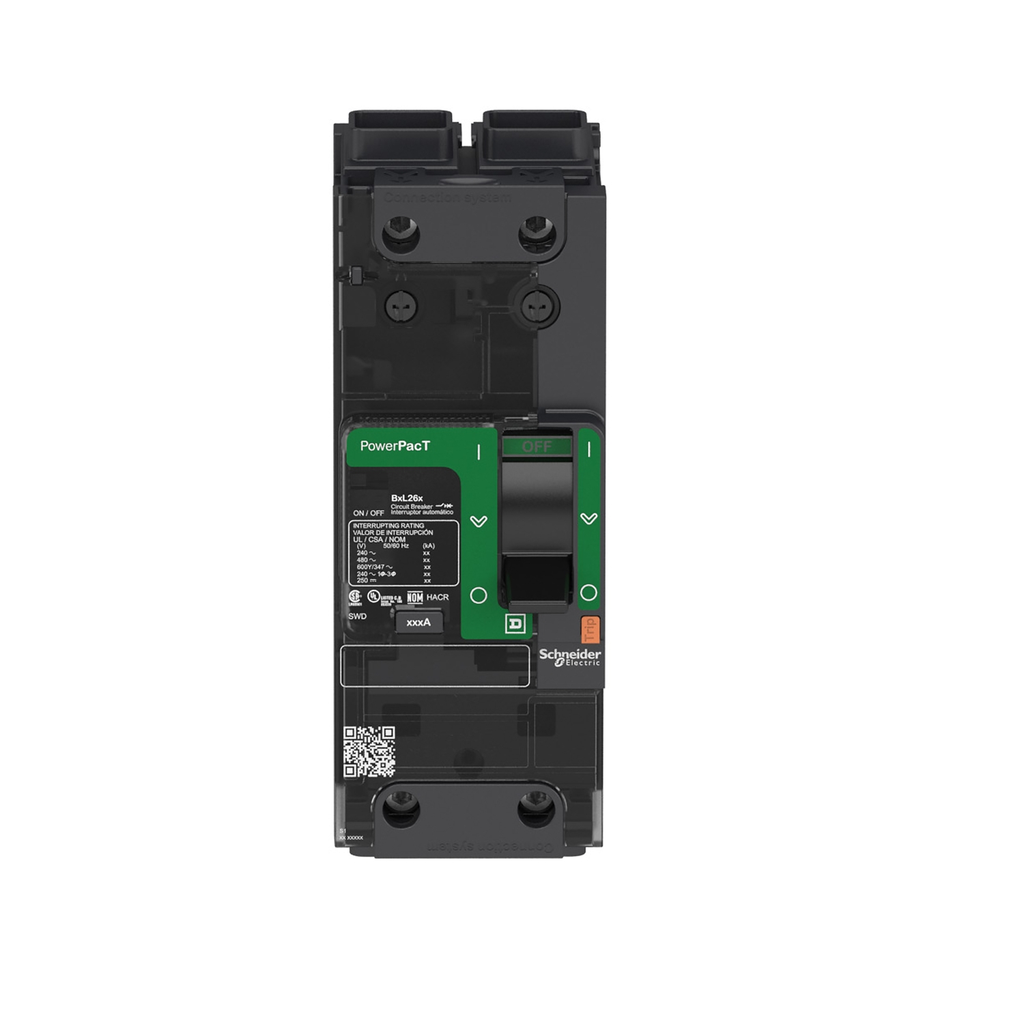

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 100A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : Gray RAL 7016), Gray RAL 7016)
• Conformance Attributes
• Product Certifications : UL, IEC, CCC, EAC, CSA, NOM
• Complementary Attributes
• ICS Rated Service Breaking Capacity : 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
• UE Rated Operational Voltage : 525 V AC 50/60 Hz UL 489, 525 V AC 50/60 Hz UL 489, 525 V AC 50/60 Hz UL 489, 525 V AC 50/60 Hz UL 489
• UI Rated Insulation Voltage : 800 V IEC 60947-2, 800 V IEC 60947-2
• UIMP Rated Impulse Withstand Voltage : 8 kV IEC 60947-2, 8 kV IEC 60947-2
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• AWG Gauge : AWG 14...AWG 8 aluminium/copper, AWG 14...AWG 8 aluminium/copper, AWG 6...AWG 3/0 aluminium/copper, AWG 6...AWG 3/0 aluminium/copper
• Electrical Connection : terminal nut, ON and OFF end, terminal nut, ON and OFF end
• Electrical Durability : 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In, 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In, 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In, 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In, 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
• Local Signalling : presence of auxiliary contacts flag green), presence of auxiliary contacts flag green), presence of auxiliary contacts flag green)
• Mechanical Durability : 15000 cycles IEC 947-1 Annex K ed 5.2, 15000 cycles IEC 947-1 Annex K ed 5.2, 15000 cycles IEC 947-1 Annex K ed 5.2
• Mounting Mode : clip-on 35 mm symmetrical DIN rail), clip-on 35 mm symmetrical DIN rail), by screws plate), by screws plate)
• Number Of Slots : 1 auxiliary switch OF plug-in), 1 auxiliary switch OF plug-in), 1 auxiliary switch OF plug-in), 1 auxiliary switch OF plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in)
• Suitability For Isolation : yes IEC 60947-2, yes IEC 60947-2
• Tightening Torque : 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4), 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4), 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4), 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0), 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0), 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
• Trip Unit Technology : thermal-magneticTM-D,, thermal-magneticTM-D,
• ICS Rated Service Breaking Capacity : 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
• Carbon Footprint Of The Distribution Phase A4 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.124234495845757
• Carbon Footprint Of The Installation Phase A5 : 0.1925936884337516, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 3.533024553498018
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 152 kg CO2 eq., 151.67341066075517
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Continuous Current Rating : 80 %
• Device Short Name : BG 100
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Package Weight Lbs : 680.389 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Protected Poles Description : 2t
• Quality Labels : CE
• Range : PowerPact
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 157 kg CO2 eq.
• Trip Unit Name : TM-D
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2311047EN
• Pep Verification Date : 2025-05-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• IP Degree Of Protection : front cover IP40 IEC 60529, front cover IP40 IEC 60529, front cover IP40 IEC 60529
• Operating Altitude : 6561.68 ft (2000 m) without derating, 6561.68 ft (2000 m) without derating, 5000 m with derating, 5000 m with derating
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 156.52326339853272
• 9 MM Pitches : 6
• Environmental Disclosure : ENVPEP2311047EN
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2311047EN
• Pep Verification Date : 2025-05-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : circuit breaker
