analogue output cartridge, Modicon M221, 2 analog current outputs, IO extension

TMC M221-2-ANALOG MA OUT

SQDTMC2AQ2C TMC2AQ2C 3606480649097
163.20 / EA
http://schema.org/OutOfStock
Mayer-DDS-analogue output cartridge, Modicon M221, 2 analog current outputs, IO extension-1
  • Depth: 15 mm
  • Load Type: Resistive

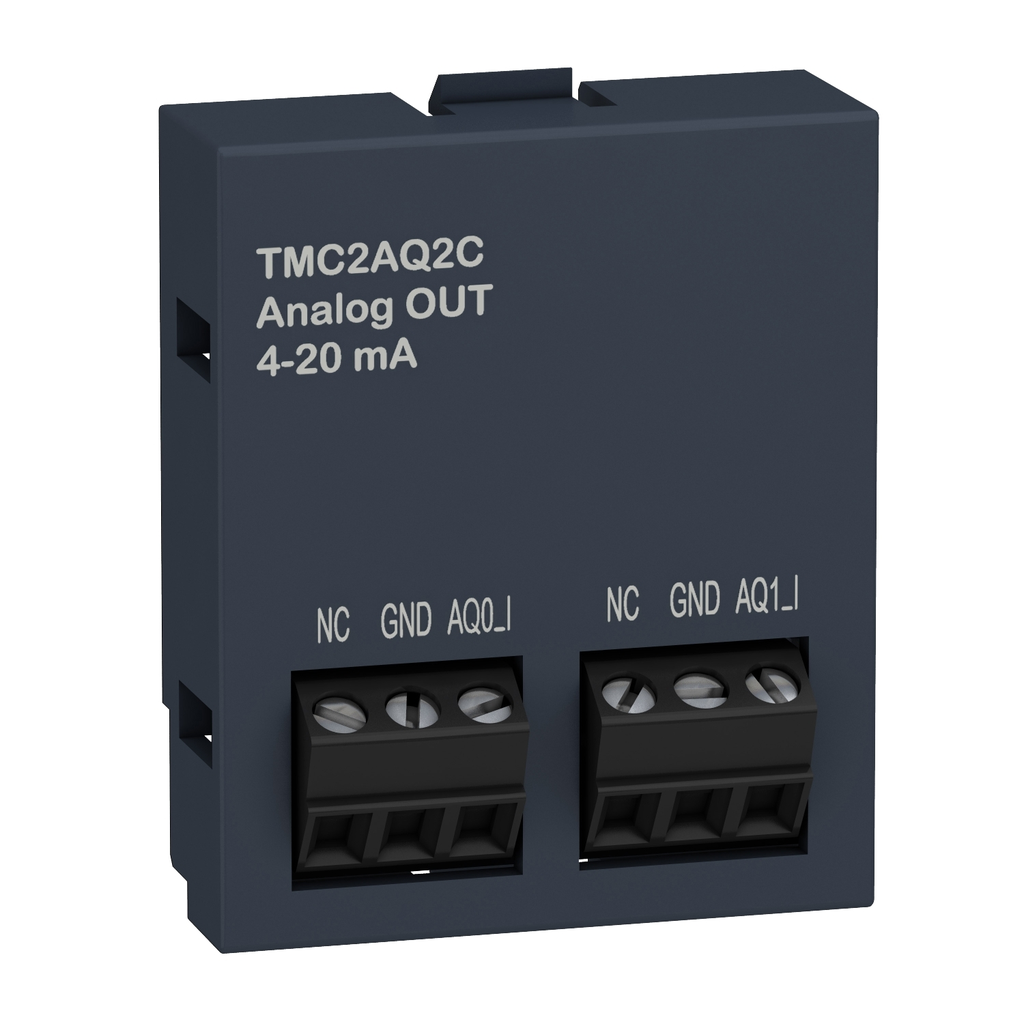

cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
QTY
  • Product Description
  • Features
  • Specifications
cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : twisted shielded pairs cable <30 m output
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Cross Talk : <= 1 LSB, <= 1 LSB
    • Non Linearity : +/- 0.01 %FS, +/- 0.01 %FS
    • Temperature Drift : +/- 0.02 %FS/°C, +/- 0.02 %FS/°C
    • Carbon Footprint Of The Distribution Phase A4 : 0.0051608642, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0159796296
    • Carbon Footprint Of The Installation Phase A5 : 0.0001179877, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.940308642
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 43 kg CO2 eq., 42.9194444444
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1901
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Conversion Time : 20 ms
    • Electrical Connection : 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
    • Immunity To Microbreaks : 10 ms
    • Insulation : non-insulated between analogue output and internal logic
    • Load Impedance Ohmic : <= 500 Ohm<= 500 Ohm
    • Load Type : resistive
    • Lsb Value : 3.91 µA 4...20 mA current
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : analogue output cartridge
    • Range Of Product : Modicon M221
    • Repeat Accuracy : +/- 0.4 %FS+/- 0.4 %FS
    • Returnability : Yes
    • Software Version : EIME v5.6.0.1
    • Stabilisation Time : 40 ms
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 45 kg CO2 eq.
    • Type Of Cable : twisted shielded pairs cable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP1403017EN
    • Database Version : 2016-11
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 87.6
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Indonesia
    • Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
    • Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
    • Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
    • Offer Owner Code : 190786
    • Pn : 1
    • Height Nominal : 41 mm
    • Width Nominal : 35 mm
    • Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 155.625
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 109
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 109
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 44.8810115679
    • Circularity Profile : ENVEOLI1403017EN
    • Environmental Disclosure : ENVPEP1403017EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : Modicon M221C
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1403017EN
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : analogue output cartridge
    • Range Of Product : Modicon M221
  • ETIM
    • ETIM 8 : EC001420
    • ETIM 9 : EC001420
  • Output Attributes
    • Analogue Output Number : 2
    • Analogue Output Resolution : 12 bits
    • Analogue Output Type : current 4...20 mA
  • Specifications
    • Country of Origin : Brazil, China, France, Japan, Mexico, United States
    • Depth : 15 mm
