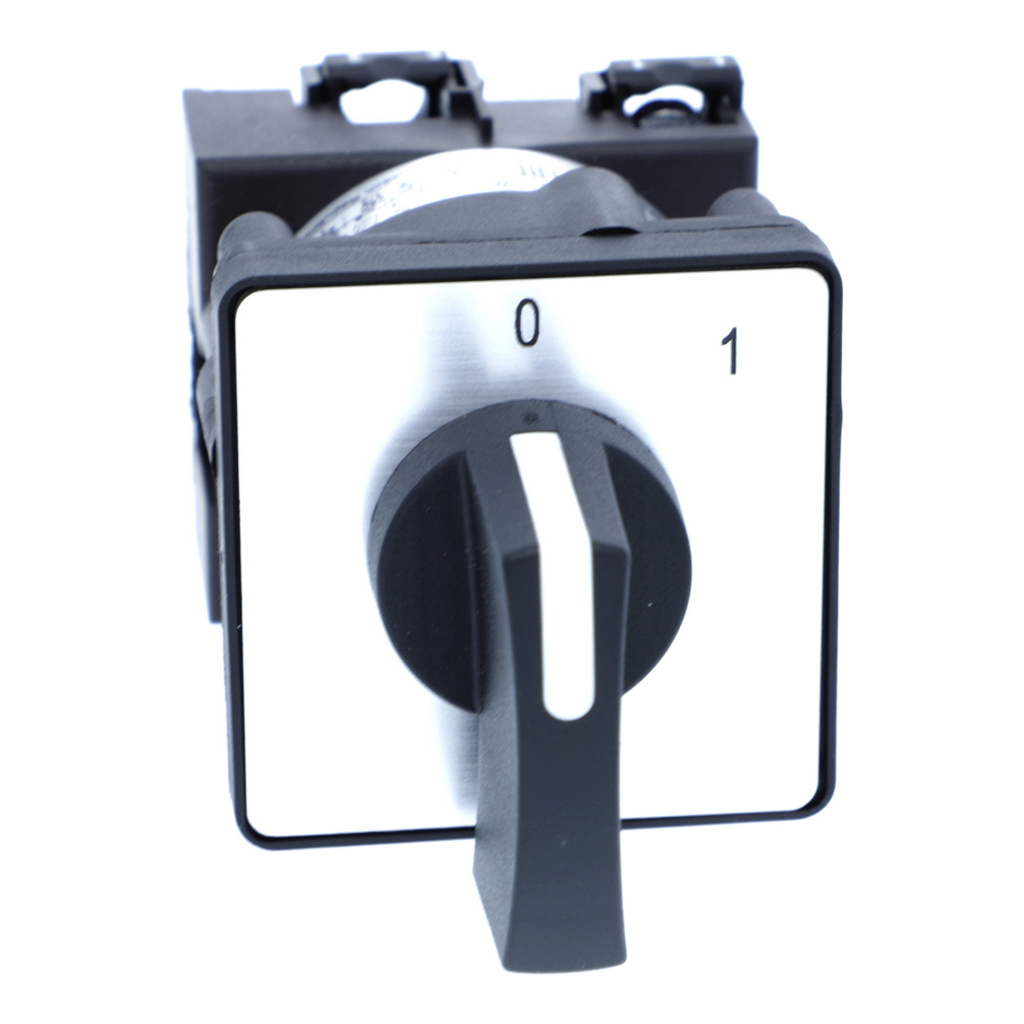

Cam ammeter switch, Harmony K, multifixing, plastic,3 positions, position 0, 90°,12A, 45x45mm,metallic legend,marked 0 L1 L2 L3, 35mm black handle

AMMETER SWITCH

SQDK1F003MLH K1F003MLH 3389110979183
166.16 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cam ammeter switch, Harmony K, multifixing, plastic,3 positions, position 0, 90°,12A, 45x45mm,metallic legend,marked 0 L1 L2 L3, 35mm black handle-2
  • Country of Origin: Czechia
  • Height: 45 mm
  • Net Weight: 0.17 kg
  • Short Circuit Current Rating: 10000 A
  • Warranty Length: 18 mth
  • Weight: 0.17 kg
  • Width: 45 mm
This K1 ammeter switch is ideal for switching between phase current measurements on a switchboard, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs with screws. This ammeter phase switch offers the maximum mechanical and electrical robustness of its class, for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
QTY
  • Product Description
  • Features
  • Specifications
This K1 ammeter switch is ideal for switching between phase current measurements on a switchboard, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs with screws. This ammeter phase switch offers the maximum mechanical and electrical robustness of its class, for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : -25-55 °C
    • Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6
    • Shock Resistance : 30 gn IEC 68-2-27
    • Product Certifications : CSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phase 2 || UL 240 V 1 hp 3 phase || UL 240 V 0.33 hp 1 phase 2
    • Standards : CENELEC EN 50013 || EN/IEC 60947-3 power circuit || EN/IEC 60947-5-1 control circuit
    • Ambient Air Temperature For Storage : -40-70 °C
    • Electrical Shock Protection Class : class II IEC 536 || class II NF C 20-030
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP071103EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI071103EN
    • Take-Back : No
  • Complementary
    • Short-Circuit Protection : 16 A cartridge fuse gG
    • [Ithe] Conventional Enclosed Thermal Current : 10 A
    • Net Weight : 0.17 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV in isolating function || 6 kV IEC 60947-1
    • Cad Overall Height : 45 mm
    • Switching Angle : 90 °
    • Electrical Connection : captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
    • Electrical Durability : 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
    • Maximum Operating Rate : 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
    • Short-Circuit Current : 10000 A
    • [Ui] Rated Insulation Voltage : 690 V 3)IEC 60947-1
    • Positive Opening : with
    • Contact Operation : slow-break
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 45 mm
    • Cad Overall Depth : 97 mm
    • Rated Operational Power In W : 10500 W AC-21, 500...660 V 3 phase IEC 60947-3 || 2200 W AC-23A, 690 V 3 phase IEC 60947-3 || 4800 W AC-21, 230 V 3 phase IEC 60947-3 || 600 W AC-3, 230 V 1 phase IEC 60947-3 || 8300 W AC-21, 400 V 3 phase IEC 60947-3 || 1100 W AC-3, 230 V 3 phase IEC 60947-3 || 1500 W AC-23A, 230 V 3 phase IEC 60947-3 || 1500 W AC-3, 400 V 1 phase IEC 60947-3 || 1500 W AC-3, 400 V 3 phase IEC 60947-3 || 1500 W AC-3, 500 V 3 phase IEC 60947-3 || 1500 W AC-3, 690 V 3 phase IEC 60947-3 || 2200 W AC-23A, 400 V 3 phase IEC 60947-3 || 2200 W AC-23A, 500 V 3 phase IEC 60947-3
    • [Ie] Rated Operational Current Ac : 1 A 500 V AC-15 IEC 60947-5-1 || 4.8 A 400 V AC-23A 3 phase IEC 60947-3 || 5.6 A 230 V AC-23A 3 phase IEC 60947-3 || 2 A 400 V AC-15 IEC 60947-5-1 || 3 A 230 V AC-15 IEC 60947-5-1 || 1.8 A 690 V AC-3 3 phase IEC 60947-3 || 2.8 A 500 V AC-3 3 phase IEC 60947-3 || 2.8 A 690 V AC-23A 3 phase IEC 60947-3 || 3.3 A 400 V AC-3 3 phase IEC 60947-3 || 3.8 A 500 V AC-23A 3 phase IEC 60947-3 || 4.6 A 230 V AC-3 3 phase IEC 60947-3
  • Specifications
    • Country of Origin : Czechia
    • Width : 45 mm
    • Height : 45 mm
    • Weight : 0.17 kg
    • Range Of Product : Harmony K
    • Fixing Mode : multifixing
    • Presentation Of Legend : with metallic, 0 - L1 - L2 - L3 black
    • Type Of Measurement : for 3 circuits
    • Ip Degree Of Protection : IP40 conforming to IEC 529 || IP40 conforming to NF C 20-010
    • Product Or Component Type : complete cam switch
    • [Ith] Conventional Free Air Thermal Current : 12 A
    • Cam Switch Function : ammeter switch
    • Component Name : K1
    • Type Of Operator : Black handle 35 mm
    • Switching Positions : right: 0° - 90° - 180° - 270°
    • Cam Switch Head Type : with front plate 45 x 45 mm
    • Product Mounting : front mounting
    • Rotary Handle Padlocking : without
    • Return : without
    • Off Position : with Off position
